Weight
234 g
Drives all-up weight and thrust-to-weight in the Build Studio.
Cell Count
4 S
Capacity
2200 mAh
C Rating
40 C
Overview
It's no surprise to us that Pro-Range? Lithium polymer packs are the go-to pack for those in the know. The Orange LiPo battery packs deliver the full rated capacity at a price everyone can afford.
Pro-Range 2200mah 4S 40C/80C (14.8V) Lithium Polymer Battery Pack(LiPo)?battery are equipped with heavy duty discharge leads to minimize resistance and sustain high current loads. Pro-Range batteries stand up to the punishing extremes of aerobatic flight and RC vehicles. Each pack is equipped with gold plated connectors and JST-XH style balance connectors. All Orange Lithium Polymer batteries packs are assembled using IR match cells.
You won't find a better deal than this in Lithium Polymer batteries anywhere!
Are you confused to choose between li-ion and li-po batteries for your drone and RC applications? Click here to watch our video.
Safety Precautions :
Avoid over-charging or over-discharging the batteries.
Do n0t put it beside the high-temperature condition.
Don?t throw it into the fire or Water
- Product?Type:?Lithium Polymer?Battery Pack
- The Orange LiPo battery has matched resistance.
- Good Temperature Control.
- Minimum weight in Class
- Useful link:
- Lithium-ion Battery vs Lithium-polymer Battery
- How to Choose Lithium Polymer Battery for your RC Drone
Specifications
Physical
- Weight
- 234 g
- Width
- 34 mm
Electrical
- Cell Count
- 4 S
- Capacity
- 2200 mAh
- C Rating
- 40 C
- Chemistry
- Lipo
Mounting & Fitment
- Discharge Connector
- XT60
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet13 entries
- Nominal Voltage (V)
- 14.8
- Nominal Capacity (mAh)
- 2200 mAh
- Continuous Discharge Current (A)
- 40C
- Battery cell type
- 4S
- Discharge Plug
- XT-60
- Balance Plug
- JST-XH
- Length (mm)
- 103
- Width (mm)
- 34
- Max. Continuous Discharge
- 40 C(88 A).
- Max. Charge Rate
- 5 C
- Max. Burst Discharge (C)
- 80 C(176 A).
- Shipping Weight
- 0.26 kg
- Shipping Dimensions
- 13 × 6 × 5 cm
In the box

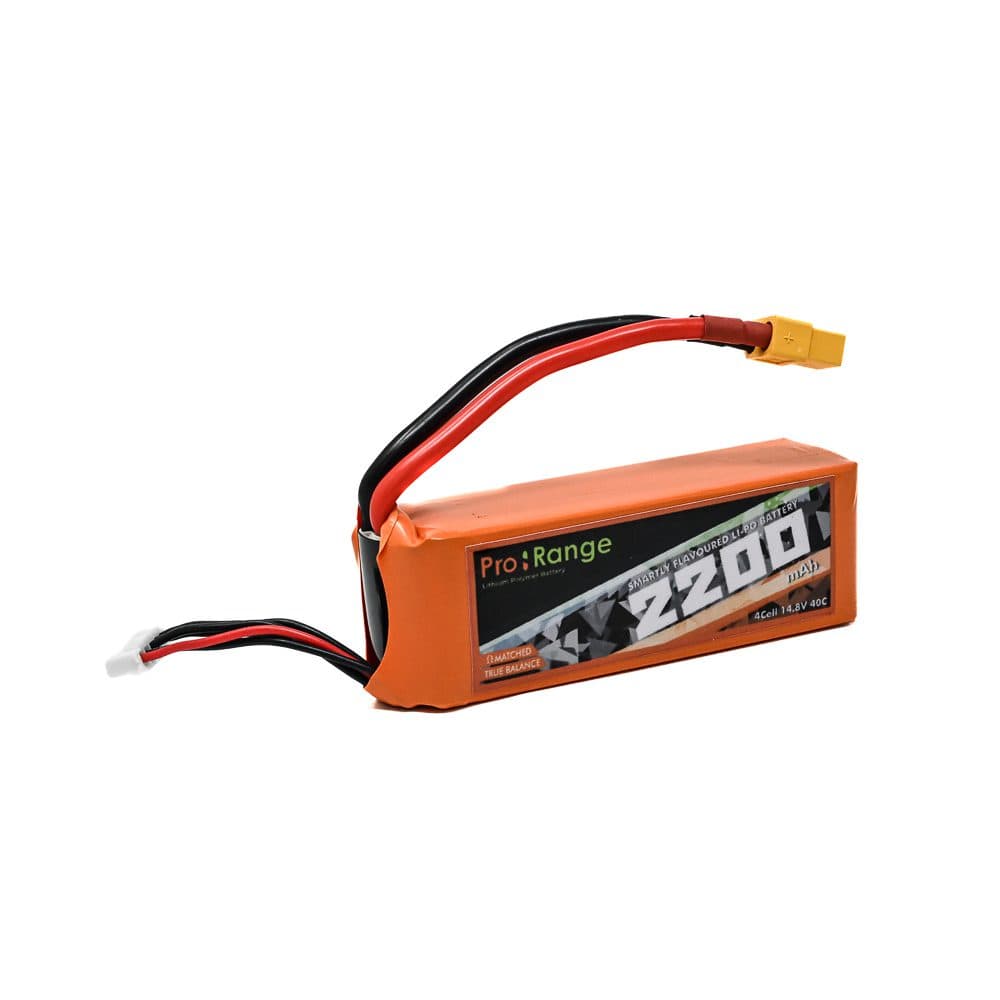

Pro-Range 14.8V 2200mAh 40C 4S Lithium Polymer Battery Pack
SKU ORG-BAT-2200-4S40C
Model No: Pro-Range 2200/4S-40C · Capacity : 2200 mAh. · Weight: 234 gm. · Voltage: 14.8 V. · Dimensions : 33 x 34 x 103(mm ). · Max Continuous Discharge : 40 C(88 A). · Balance Plug : JST-XH.
₹1,846.61 + 18% GST
- Model No: Pro-Range 2200/4S-40C
- Capacity : 2200 mAh.
- Weight: 234 gm.
- Voltage: 14.8 V.
- Dimensions : 33 x 34 x 103(mm ).
- Max Continuous Discharge : 40 C(88 A).
- Balance Plug : JST-XH.
Product details
- SKU
- ORG-BAT-2200-4S40C
- Brand
- Orange
- Country of origin
- China
- Warranty
- 1 month
- HSN code
- 85076000
Ships by surface transport only
This item contains a lithium cell. Indian couriers will not carry it by air, so delivery takes a few days longer and some remote pincodes are unavailable. Cash on delivery is not offered.
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
1-month warranty
Covers manufacturing defects. Crash damage is not covered.
- HSN code
- 85076000
- GST
- 18%
- Country of origin
- CN
- Shipping weight
- 260 g
