Weight
80 g
Drives all-up weight and thrust-to-weight in the Build Studio.
KV Rating
810 KV
RPM per volt with no load. Lower KV suits higher cell counts and larger props.
Stator Size
2216
Width and height of the stator in millimetres, e.g. 2207 is 22 mm wide, 7 mm tall.
Cell Count
3–4 S
Safe LiPo cell-count window. Exceeding it will cook the windings.
Overview
If you are wandering to build a drone and don’t know what will be the best motor for you then worry no more, we have got your back. This motor provides a Motor kV of 810.
In the field of Multirotors, there are so many brands that are making drone motors but Emax is giving us the best quality of drone motor at an affordable price.
Emax brand gained more popularity in the market due to the highest standards for optimal performance and reliability.
Note
The BLDC motor rotation is always opposite to the direction of Thread.
As in this case, the motor rotation direction is CCW, so the Thread tightening direction will be CW <"right-headed-thread">.
To Explore more Drone motors, Click here
To Explore Various kinds of Propellers, Click here
To Explore Various kinds of ESC’s, Click here
in is the official Distributor of Emax in India.
- Longers duration of the flight, low CG design, lightweight design.
- Air suction system design, rapid cooling, higher efficiency, and longer life.
- U clip prevents bearing from loosening.
- High precision CNC machining exquisite design, stern quality control revealing the user's taste and position.
- The Mark notation on the front bell decides the rotation direction whether CW or CCW.
- Compatible with DJI style Self Locking Propellers.
- Vibration-free operation.
- Windings are made from copper of high purity.
- Powered by highest grade neodymium magnets.
- Generates less heat during operations.
Specifications
Physical
- Weight
- 80 g
Performance
- KV Rating
- 810 KV
- Stator Size
- 2216
- Max Thrust
- 950 g
Mounting & Fitment
- Mount Pattern
- —
- Shaft Diameter
- 3 mm
- Propeller Mount
- M5 nut
Electrical
- Cell Count
- 3–4 S
- Max Continuous Current
- 14.6 A
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet13 entries
- Motor KV (RPM/V)
- 810 KV
- Motor Type
- Brushless Motor
- Compatible LiPO Batteries
- 3S to 4S
- Model No. / Name
- MT2216
- Maximum Thrust (gm)
- 950
- Shaft Diameter
- 3 mm
- Framework
- 12N14P
- Compatible Prop (inch)
- 8 ~ 10
- Length (mm)
- 33.2
- Width (mm)
- 27.9
- Weight (g)
- 80
- Shipping Weight
- 0.1 kg
- Shipping Dimensions
- 30 × 5 × 3 cm
In the box

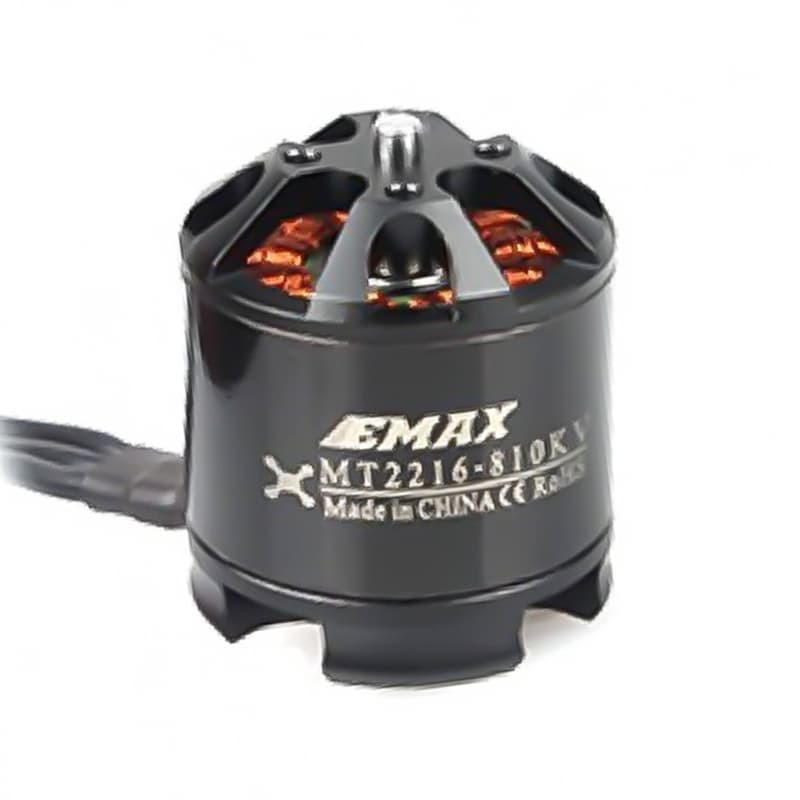

EMAX MT2216 810KV Brushless DC Motor ? Silver Cap (CCW Motor Rotation) with Prop1045 Combo (Original)
SKU EMX-MTR-MT2216-CCW
Framework: 12N14P · Motor KV: 810KV · LiPO Batteries: 3-4S · Max Thrust: 950 gm · Length: 33.2 mm · Shaft: 3 mm · Propeller: 8″-10″
₹1,414.41 + 18% GST
- Framework: 12N14P
- Motor KV: 810KV
- LiPO Batteries: 3-4S
- Max Thrust: 950 gm
- Length: 33.2 mm
- Shaft: 3 mm
- Propeller: 8″-10″
Product details
- SKU
- EMX-MTR-MT2216-CCW
- Brand
- Emax
- Country of origin
- China
- Warranty
- 3 months
- HSN code
- 85013119
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
3-month warranty
Covers manufacturing defects. Crash damage is not covered.
