Weight
15 g
Drives all-up weight and thrust-to-weight in the Build Studio.
Continuous Current
35 A
Per motor channel, sustained.
Cell Count
3–6 S
Type
Single
Overview

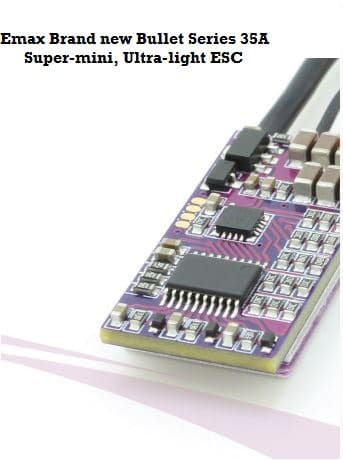

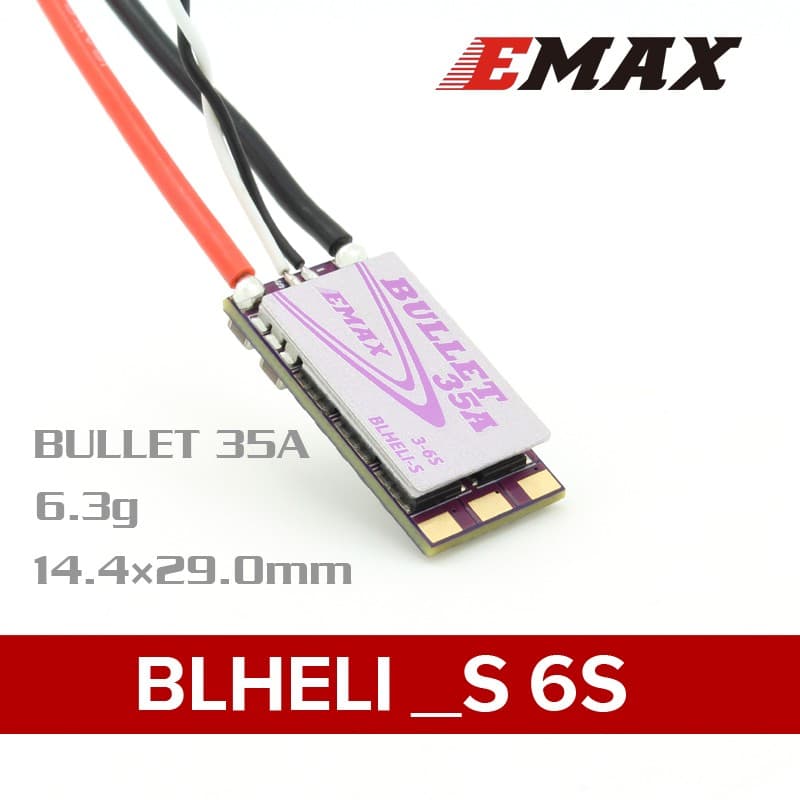

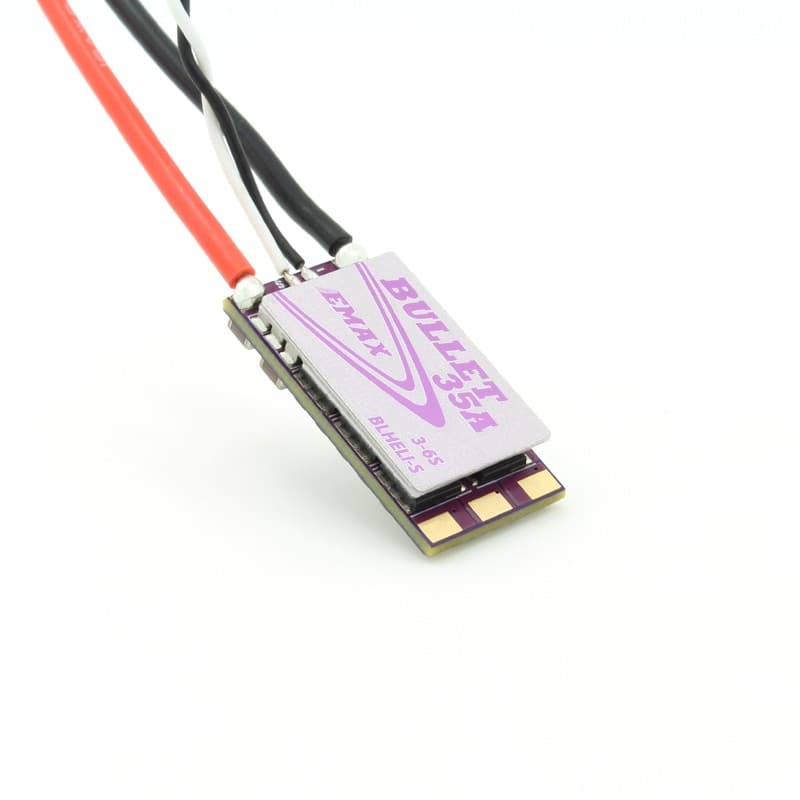

Emax Bullet Series 35A ESC (BLHELI_S) with Oneshot ESC is specifically made for quadcopters and multi-rotors. Which provides faster and better motor speed control giving better flight performance compared to other available ESCs.
EMAX New FPV ESC, Purple Bullet Series, Brand new bullet series purple, super-mini, ultra-light ESC BLHeli-S firmware, support MULTISHOT, ONESHOT42, ONESHOT125 calibration protocol.
Emax Bullet Series 35A ESC (BLHELI_S) with Oneshot is the market's lightest and smallest ESC, designed specifically for high-level FPV racing. Utilizing the latest BLHeli-S firmware, hardware PWM generates a signal to boost smoother throttle response and reduce noise. Supports analog signals: MULTISHOT, ONESHOT42, ONESHOT125.
If you are wandering to build a drone and don’t know what will be the best ESC for you then worry no more, we have got your back.
To know what is Calibration protocol is, Click here
For more 35 A ESC's, Click here
- Brand new Bullet Series (purple), super-mini, ultra-light ESC.
- BLHeli-S firmware/ Supports MULTISHOT, ONESHOT42, ONESHOT125.
- New heatsink design both effectively reduces the core temperature and avoids propeller strike damage.
- Featured with High-temperature silicone signal cable for wire flexibility and ease of installation.
- Imported MOS tube, Japanese ceramic capacitors, 3oz High-TG PCB board, significantly reduces electrical heat soak and improves system efficiency.
Specifications
Physical
- Weight
- 15 g
Features
- Type
- Single
- Supported Protocols
- ONESHOT125, Multishot
- ESC Firmware
- BLHeli_S
- Current Sensor
- No
Electrical
- Continuous Current
- 35 A
- Cell Count
- 3–6 S
- Burst Current
- 40 A
Mounting & Fitment
- Mount Pattern
- Non-standard
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet16 entries
- Item Type
- Brushless ESC
- Firmware
- BLHeli S
- Model No. / Name
- Emax Bullet Series 35A
- Burst Current (A)
- 40
- Constant Current (A)
- 35
- BEC (Y/N)
- NO
- Compatible LiPO Batteries
- 3S to 6S
- Application
- BLDC Motors, Multirotors, Rc Planes etc.
- Cable Length
- 10
- Length (mm)
- 29
- Width (mm)
- 14.5
- Weight (g)
- 15
- GTIN
- 704817760118
- Color
- Purple
- Shipping Weight
- 0.018 kg
- Shipping Dimensions
- 10 × 5 × 5 cm
In the box

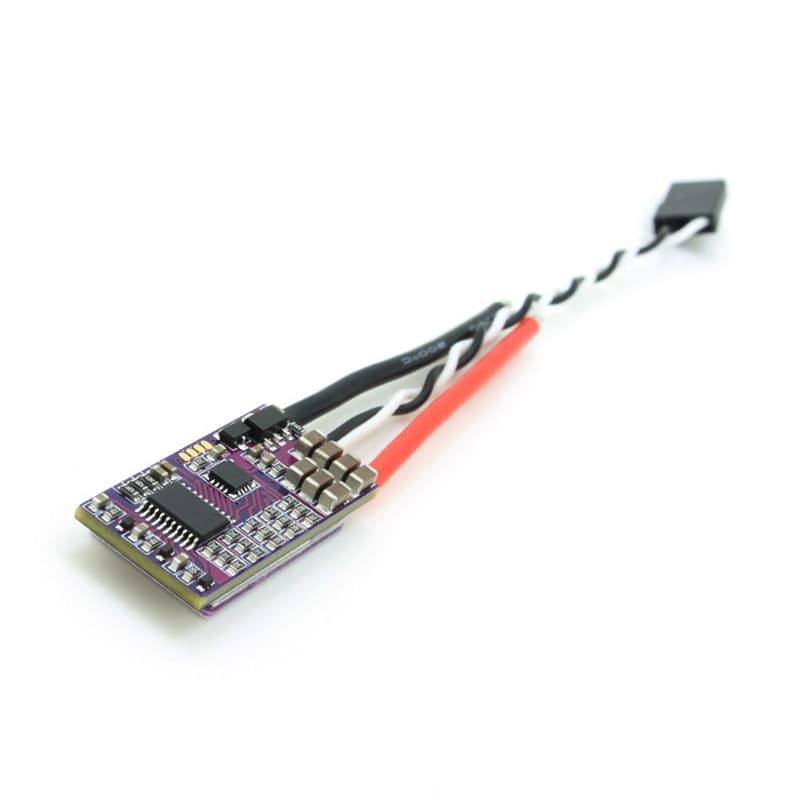

Emax Bullet Series 35A ESC (BLHELI_S) with Oneshot (Original)
SKU EMX-ESC-BLHELIS-35A
Model: Emax Bullet Series 35A · Burst Current: 40A for 10 sec · Input Voltage(V): up to 24 · Constant Current: 35A · BEC: NO · Suitable Batteries: 3 ~ 6S
₹1,558.47 + 18% GST
- Model: Emax Bullet Series 35A
- Burst Current: 40A for 10 sec
- Input Voltage(V): up to 24
- Constant Current: 35A
- BEC: NO
- Suitable Batteries: 3 ~ 6S
Product details
- SKU
- EMX-ESC-BLHELIS-35A
- Brand
- Emax
- Country of origin
- China
- Warranty
- 3 months
- HSN code
- 85043100
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
3-month warranty
Covers manufacturing defects. Crash damage is not covered.
- HSN code
- 85043100
- GST
- 18%
- Country of origin
- CN
- Shipping weight
- 18 g
