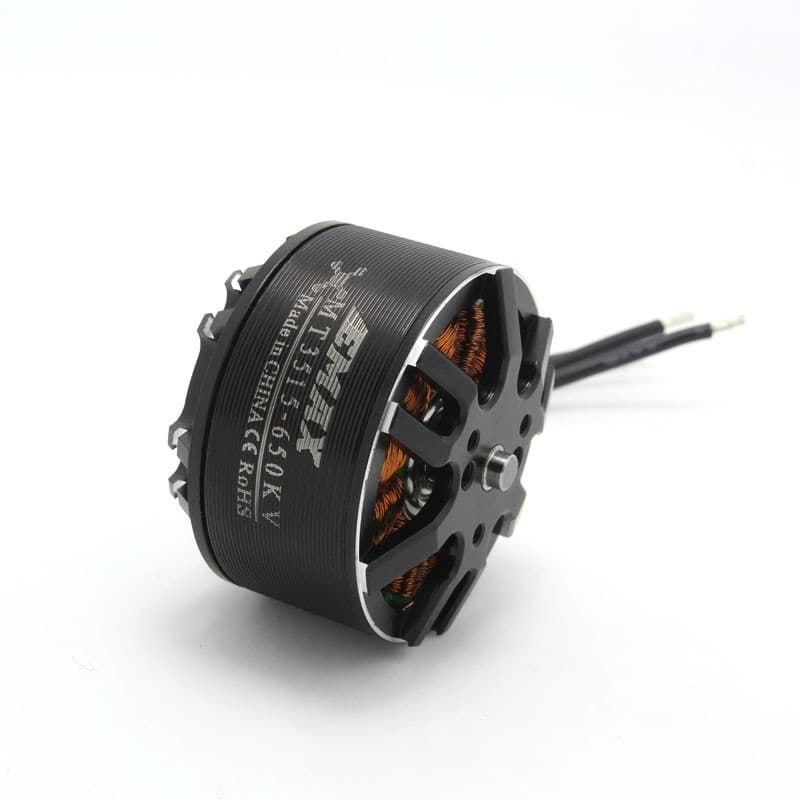

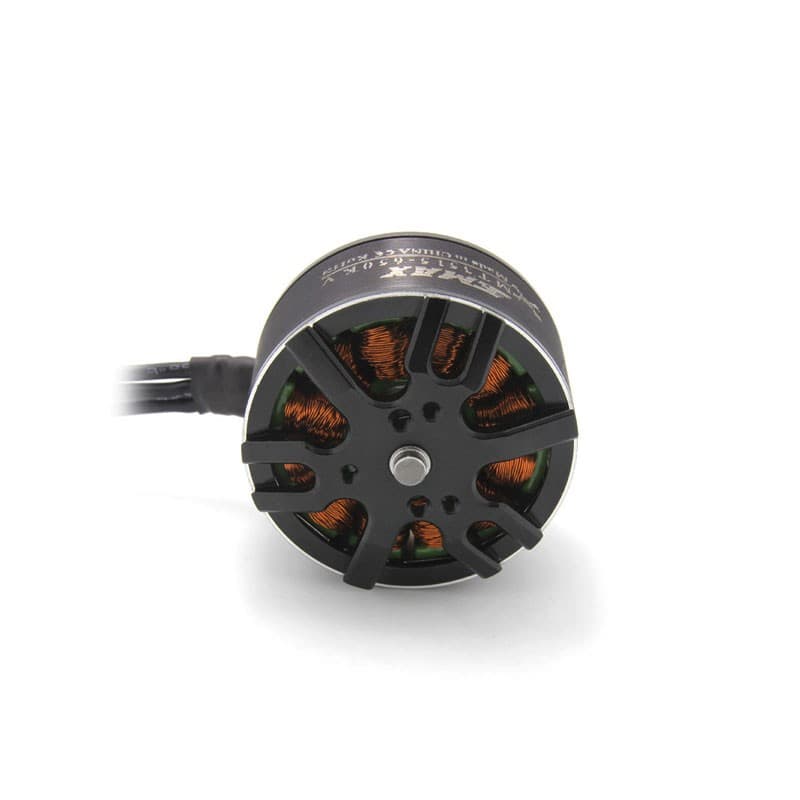

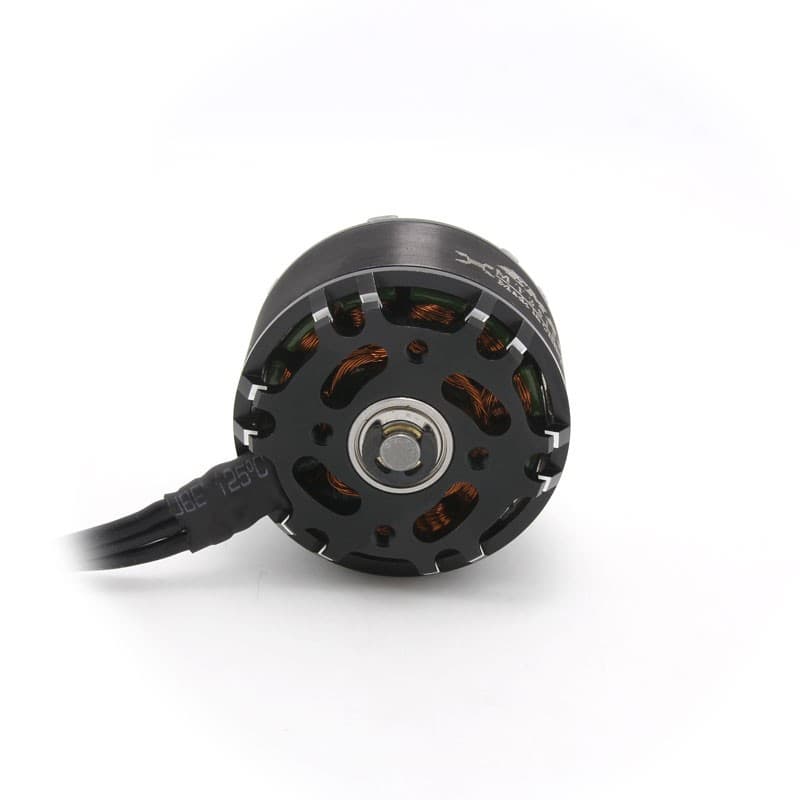

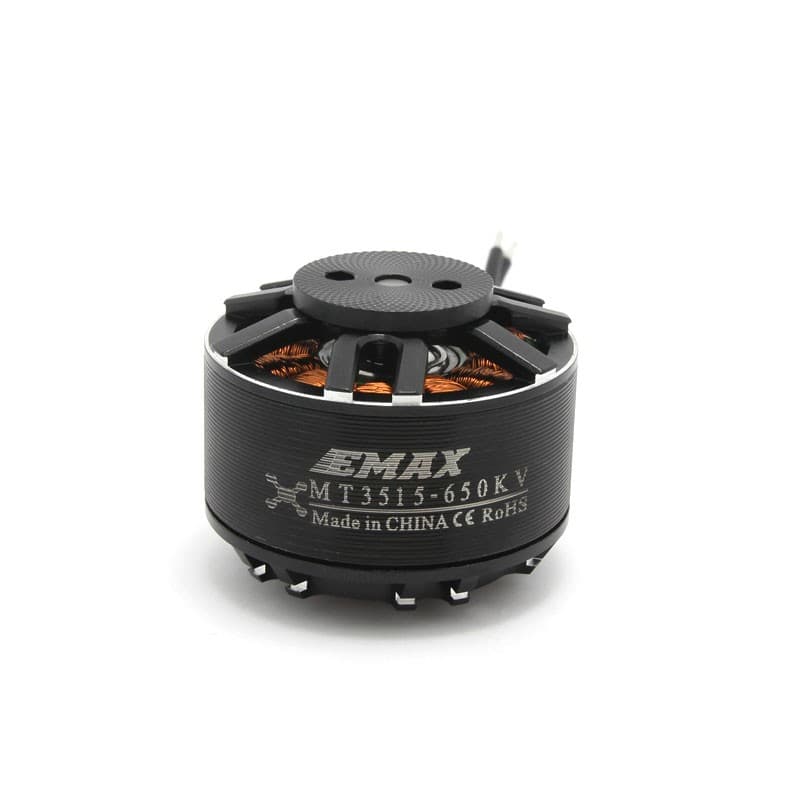

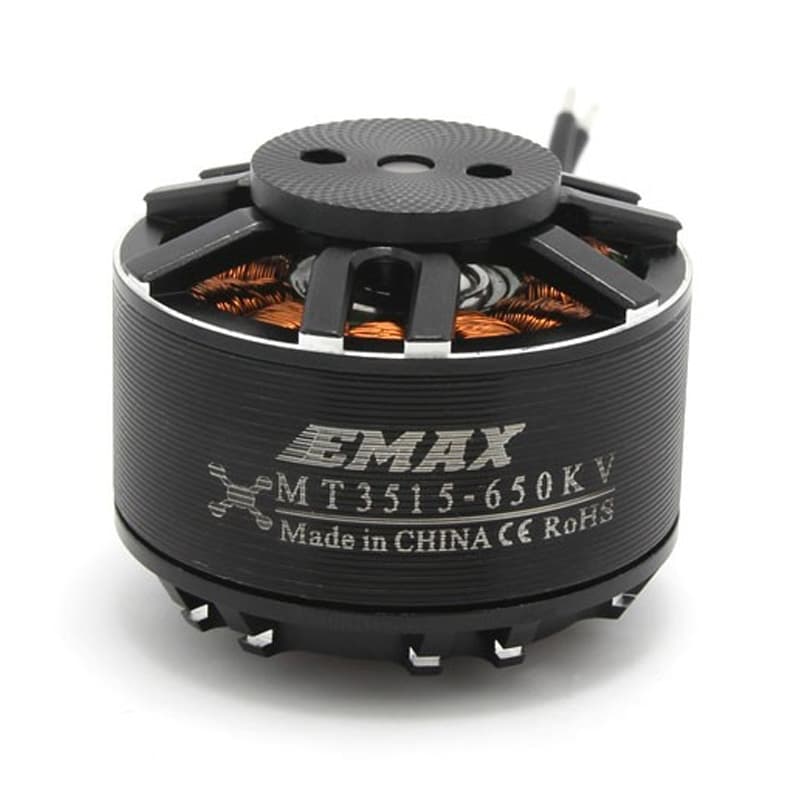

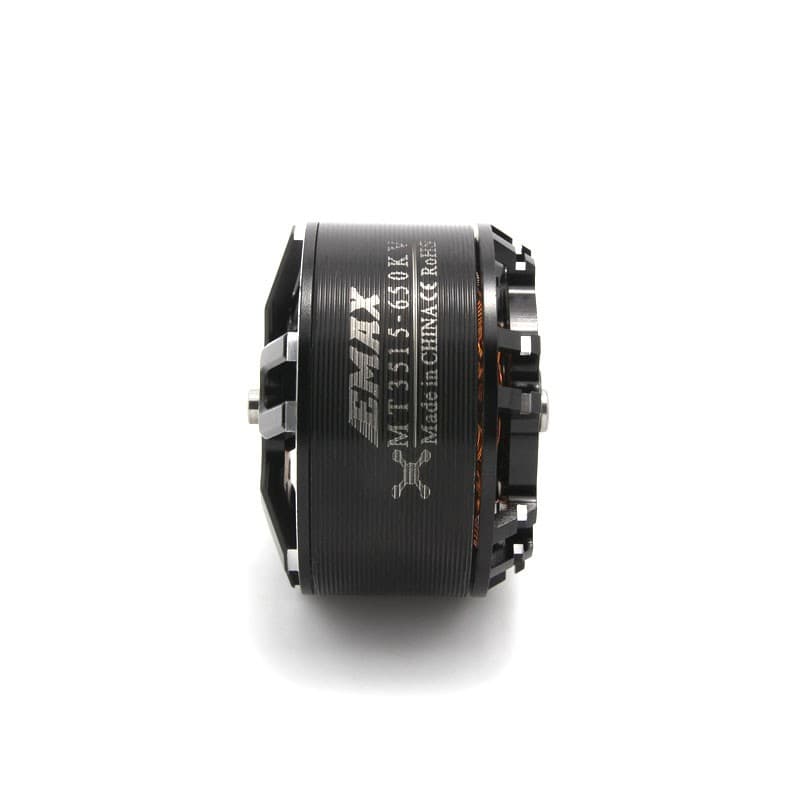

EMAX MT3515 650KV Brushless DC Motor – Black Cap (CW Motor Rotation)

Weight

131 g

Drives all-up weight and thrust-to-weight in the Build Studio.

KV Rating

650 KV

RPM per volt with no load. Lower KV suits higher cell counts and larger props.

Stator Size

3515

Width and height of the stator in millimetres, e.g. 2207 is 22 mm wide, 7 mm tall.

Cell Count

4–6 S

Safe LiPo cell-count window. Exceeding it will cook the windings.

Overview

This EMAX MT3515 650KV Brushless DC Motor (Original) is ready to stand up your needs!!!!

These EMAX Brushless DC Motor are imported from original Emax products manufacturers. The brand Emax is known for quality oriented product manufacturing in the market. Our team has selected some of the fine innovations from EMAX and tested them for their ability in labs before supplying to customers.

This EMAX MT3515 650KV Brushless DC Motor is specially designed for heavy lift applications while being highly efficient an reliable. MT3515 650KV BLDC motor can produce up to 2.8kg of thrust when perfectly synched with appropriate battery and propellers, so this one is more than sufficient for your heavy lift applications.

This EMAX MT3515 650KV Brushless DC Motor equips the high-quality bearings to ensure efficient and vibration free operation and silicone steel for high-performance operation with low temperature. These motors are specially meant for your Quadcopters or other types of Multirotors like Tri, Hexa etc.

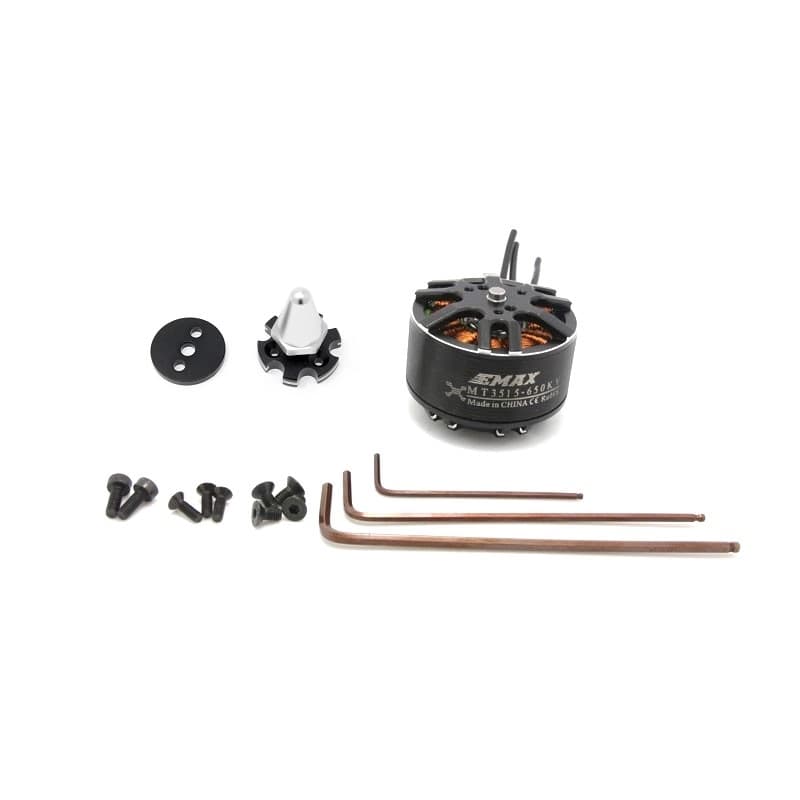

It comes with a prop adapter to ease the propeller adjustment.

With qualities of durability in use and high-efficiency in performance supported by the high quality of the material, it is the perfect hit at your RC Model requirement. Its main feature includes its ability of transient response and higher stability.

The EMAX MT3515 650KV Brushless DC Motor provides appreciable thrust and efficiency at an affordable price.

“This is CW rotating BLDC Motor, for CCW rotating BLDC motor click below”,

EMAX MT3515 650KV BLDC Motor CCW (Original)

Note

The BLDC Motor rotation is always opposite to the direction of Thread.

As in this case, the motor rotation direction is CW, so the Thread tightening direction will be CCW <“left-handed-thread”>.

  • Longers duration of the flight, low CG design, lightweight design.
  • Air suction system design, rapid cooling, higher efficiency, and longer life.
  • U clip prevents bearing from loosening.
  • High precision CNC machining exquisite design, stern quality control revealing the user's taste and position.
  • Vibration free operation.
  • Windings are made from copper of high purity.
  • Powered by highest grade neodymium magnets.
  • Generates less heat during operations.

Specifications

Physical

Weight
131 g

Performance

KV Rating
650 KV
Stator Size
3515
Max Thrust
2870 g

Mounting & Fitment

Mount Pattern
Shaft Diameter
5 mm
Propeller Mount

Electrical

Cell Count
4–6 S
Max Continuous Current
30 A

Where a value reads as an em dash the manufacturer has not published it. We do not estimate.

Manufacturer datasheet13 entries
Motor KV (RPM/V)
650 KV
Motor Type
Brushless Motor
Compatible LiPO Batteries
4S–6S LiPo
Model No. / Name
MT3515
Framework
12N14P
Maximum Thrust (gm)
2870
Shaft Diameter
5 mm
Compatible Prop (inch)
13 ~ 15
Length (mm)
33.38
Width (mm)
41.5
Weight (g)
131
Shipping Weight
0.15 kg
Shipping Dimensions
10 × 5 × 4 cm

In the box

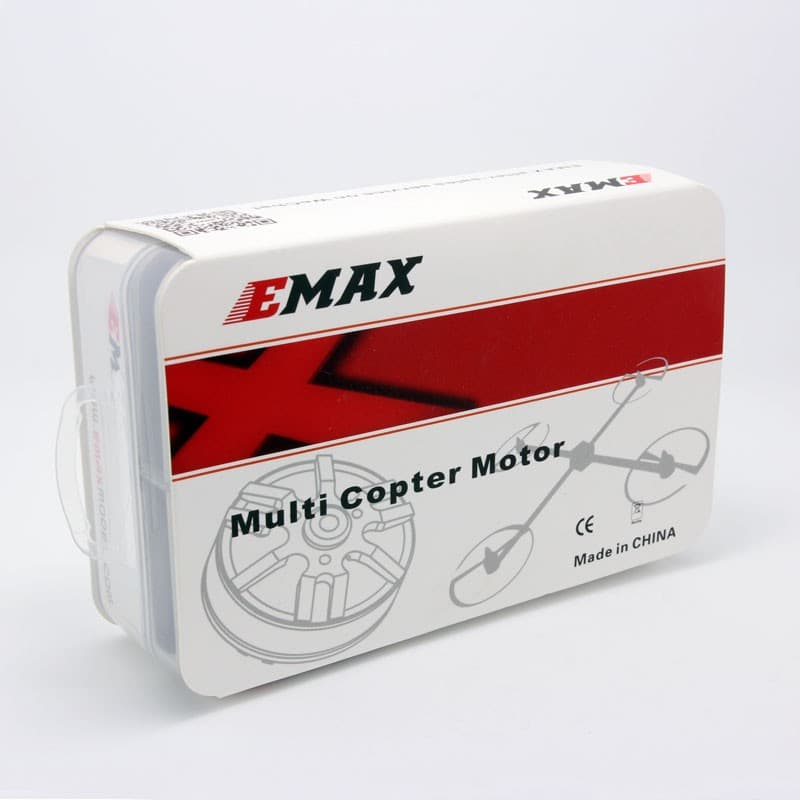

011 x EMAX MT3515 650KV Brushless DC Motor
Emax

EMAX MT3515 650KV Brushless DC Motor – Black Cap (CW Motor Rotation)

SKU EMX-MTR-MT3515-CW

Framework: 12N14P · Motor KV: 650KV · LiPO Batteries: 4S-6S · Max Thrust: 2870 gm · Shaft: 5 mm · Propeller: 13″-15″

₹3,589.01

₹3,041.53 + 18% GST

In stock
  • Framework: 12N14P
  • Motor KV: 650KV
  • LiPO Batteries: 4S-6S
  • Max Thrust: 2870 gm
  • Shaft: 5 mm
  • Propeller: 13″-15″

Product details

SKU
EMX-MTR-MT3515-CW
Brand
Emax
Country of origin
China
Warranty
3 months
HSN code
85013119

Dispatch from Ghaziabad, UP

Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.

3-month warranty

Covers manufacturing defects. Crash damage is not covered.

HSN code
85013119
GST
18%
Country of origin
CN
Shipping weight
150 g
