Weight
28 g
Drives all-up weight and thrust-to-weight in the Build Studio.
Continuous Current
30 A
Per motor channel, sustained.
Cell Count
2–4 S
Type
Single
Overview
Emax's BLHeli Series 30A ESC with Oneshot is designed specifically for FPV racing. The Emax series is a line of high-performance and low-cost ESCs for drone motors. Emax's ESC'S are 100% guaranteed original and genuine products for the beginner who wants to learn how to build a drone.
EMAX BLHELI SERIES 30A ESC is a brushless dc motor speed controller. The low output resistance greatly enhances power stability because The ESC is adapting a 2-4S Lipo battery which improves good battery life. The EMAX BLHELI ESC is programmed to start the brushless dc motor. This ESC has a greater current handling capacity which is 30A continuous and the peak current is 40A for the last 10 seconds only.
If you are wandering to build a drone and don’t know what will be the best ESC for you then worry no more, we have got your back.
For more 30A ESCs, Click here
- Based on BLHeli firmware, further optimized to the perfect drive performance.
- Low-voltage protection, over-heat protection, and throttle signal loss protection.
- Separate power supply for MCU and BEC, enhancing the ESC’s ability to eliminate magnetic interference.
- Parameters of the ESC can be set via a program card or transmitter.
- Throttle range can be set to be compatible with different receivers.
- Equipped with built-in linear BEC or switch BEC.
- Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.
Specifications
Physical
- Weight
- 28 g
Features
- Type
- Single
- Supported Protocols
- ONESHOT125
- ESC Firmware
- BLHeli_S
- Current Sensor
- No
Electrical
- Continuous Current
- 30 A
- Cell Count
- 2–4 S
- Burst Current
- 40 A
Mounting & Fitment
- Mount Pattern
- Non-standard
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet13 entries
- Item Type
- Brushless ESC
- Model No. / Name
- Emax BLHeli Series 30A
- Burst Current (A)
- 40
- Constant Current (A)
- 30
- BEC (Y/N)
- Yes, (5V/2A)
- Compatible LiPO Batteries
- 2S to 4S
- Color
- Black
- Dimensions (L x W x H) mm
- 52 x 26 x 7
- Weight (g)
- 28
- Application
- BLDC Motors, Multirotors, Rc Planes etc.
- GTIN
- 608763428583
- Shipping Weight
- 0.03 kg
- Shipping Dimensions
- 8 × 6 × 3 cm
In the box

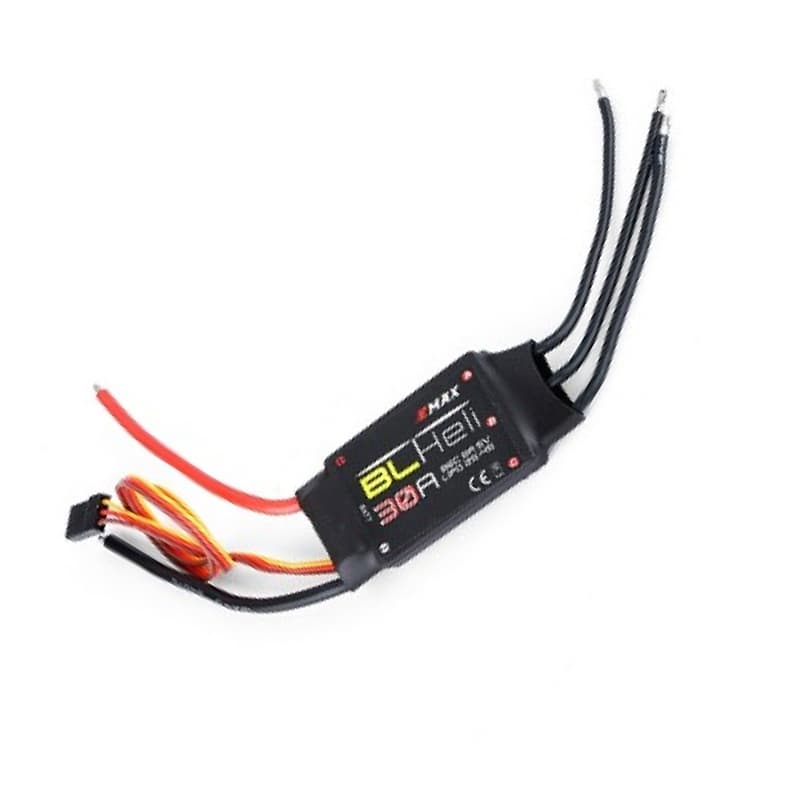

Emax BLHeli Series 30A ESC with Oneshot (Original)
SKU EMX-ESC-BLHELIS-30A
Model: Emax BLHeli Series Oneshot · Burst Current: 40A (up to 10Sec) · Input Voltage(V): up to 16V · Constant Current: 30A · BEC: 5V /2A · Suitable Batteries: 2 ~ 4S
₹1,660.17 + 18% GST
- Model: Emax BLHeli Series Oneshot
- Burst Current: 40A (up to 10Sec)
- Input Voltage(V): up to 16V
- Constant Current: 30A
- BEC: 5V /2A
- Suitable Batteries: 2 ~ 4S
Product details
- SKU
- EMX-ESC-BLHELIS-30A
- Brand
- Emax
- Country of origin
- China
- Warranty
- 3 months
- HSN code
- 85043100
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
3-month warranty
Covers manufacturing defects. Crash damage is not covered.
- HSN code
- 85043100
- GST
- 18%
- Country of origin
- CN
- Shipping weight
- 30 g
