Weight
28 g
Drives all-up weight and thrust-to-weight in the Build Studio.
Continuous Current
30 A
Per motor channel, sustained.
Cell Count
2–3 S
Type
Single
Overview

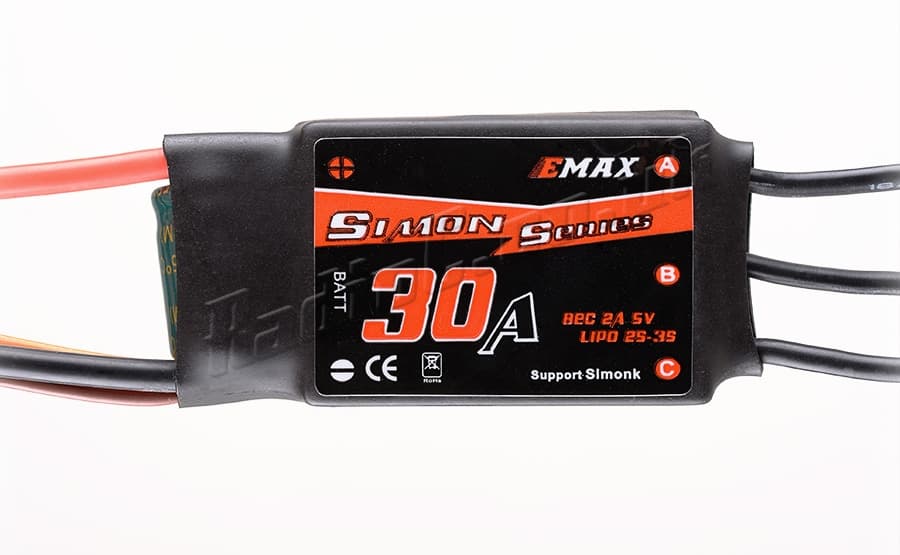

Emax SimonK Series Multirotor 30A Brushless ESC (Original) is a brushless dc motor speed controller. The low output resistance greatly enhances power stability, and this will improve the great battery life. Emax SimonK Series Multirotor 30A Brushless ESC is programmed to start the brushless dc motor. This ESC has a greater current handling capacity which is 30A continuous and the peak current is 40A for the last 10 seconds only.
100% Guaranteed of Original & Genuine Emax Product
- Based on SimonK firmware, further optimized to the perfect drive performance.
- Low-voltage protection, over-heat protection, and throttle signal loss protection.
- Separate power supply for MCU and BEC, enhancing the ESC’s ability to eliminate magnetic interference.
- Parameters of the ESC can be set via a program card or transmitter.
- Throttle range can be set to be compatible with different receivers.
- Equipped with built-in linear BEC or switch BEC.
- Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.
Specifications
Physical
- Weight
- 28 g
Features
- Type
- Single
- Supported Protocols
- Pwm
- ESC Firmware
- SimonK
- Current Sensor
- No
Electrical
- Continuous Current
- 30 A
- Cell Count
- 2–3 S
- Burst Current
- 40 A
Mounting & Fitment
- Mount Pattern
- Non-standard
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet12 entries
- Item Type
- Brushless ESC
- Model No. / Name
- Emax SimonK Series 30A
- Burst Current (A)
- 40
- Constant Current (A)
- 30
- BEC (Y/N)
- Yes, (5V/2A)
- Compatible LiPO Batteries
- 2S to 3S
- Dimensions (L x W x H) mm
- 52 x 26 x 7
- Weight (g)
- 28
- Application
- BLDC Motors, Multirotors, Rc Planes etc.
- Color
- Black and Red
- Shipping Weight
- 0.03 kg
- Shipping Dimensions
- 6 × 3 × 1 cm
In the box

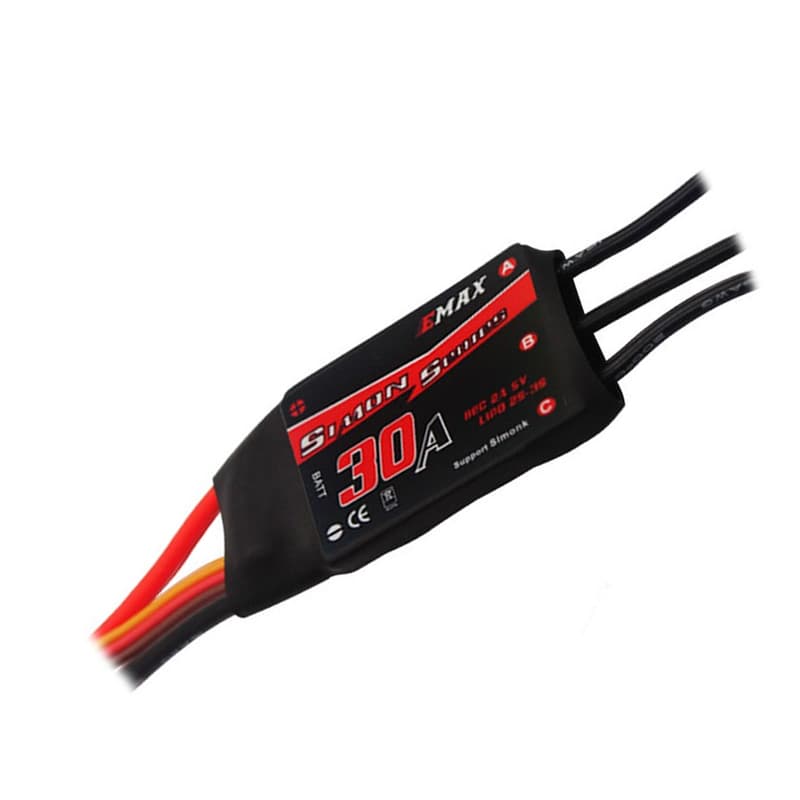

Emax SimonK Series Multirotor 30A Brushless ESC (Original)
SKU VTX-ESC-SIMONK-30A-03
Model: Emax SimonK Series. · LiPo Battery Input: 2 ~ 3S. · Continuous Current: 30A. · Burst Current(10S): 40A (for 10Sec). · BEC Mode: Linear. · BEC Output: 1A/5V.
₹1,499.15 + 18% GST
- Model: Emax SimonK Series.
- LiPo Battery Input: 2 ~ 3S.
- Continuous Current: 30A.
- Burst Current(10S): 40A (for 10Sec).
- BEC Mode: Linear.
- BEC Output: 1A/5V.
Product details
- SKU
- VTX-ESC-SIMONK-30A-03
- Brand
- Unbranded
- Country of origin
- China
- Warranty
- 3 months
- HSN code
- 85043100
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
3-month warranty
Covers manufacturing defects. Crash damage is not covered.
- HSN code
- 85043100
- GST
- 18%
- Country of origin
- CN
- Shipping weight
- 30 g
