Weight
23 g
Drives all-up weight and thrust-to-weight in the Build Studio.
Continuous Current
30 A
Per motor channel, sustained.
Cell Count
2–4 S
Type
Single
Overview
This is a DYS SimonK 30A Brushless Speed Controller ESC For Drone, Multi-copter Brushless Motor Speed Controller with a running current of 30A. The power input uses extreme low output resistance greatly enhance power stability and has a protective effect on the battery. Separately voltage regulator IC for the microprocessor. providing good anti-jamming capability.
Using SimonK’s a dedicated multi-copter program tgy_debug; and the master chip with high stability crystal oscillator, making the motor control to more precise.
To know How to calibrate ESC click here
Connections:
Warning: We can connect BLDC ESC directly to the remote control receiver; never ever switch off the remote control before switching off power to the BLDC ESC. Depending on the model of the remote control; it may result in full throttle applied to the motor and it will rotate at full speed.

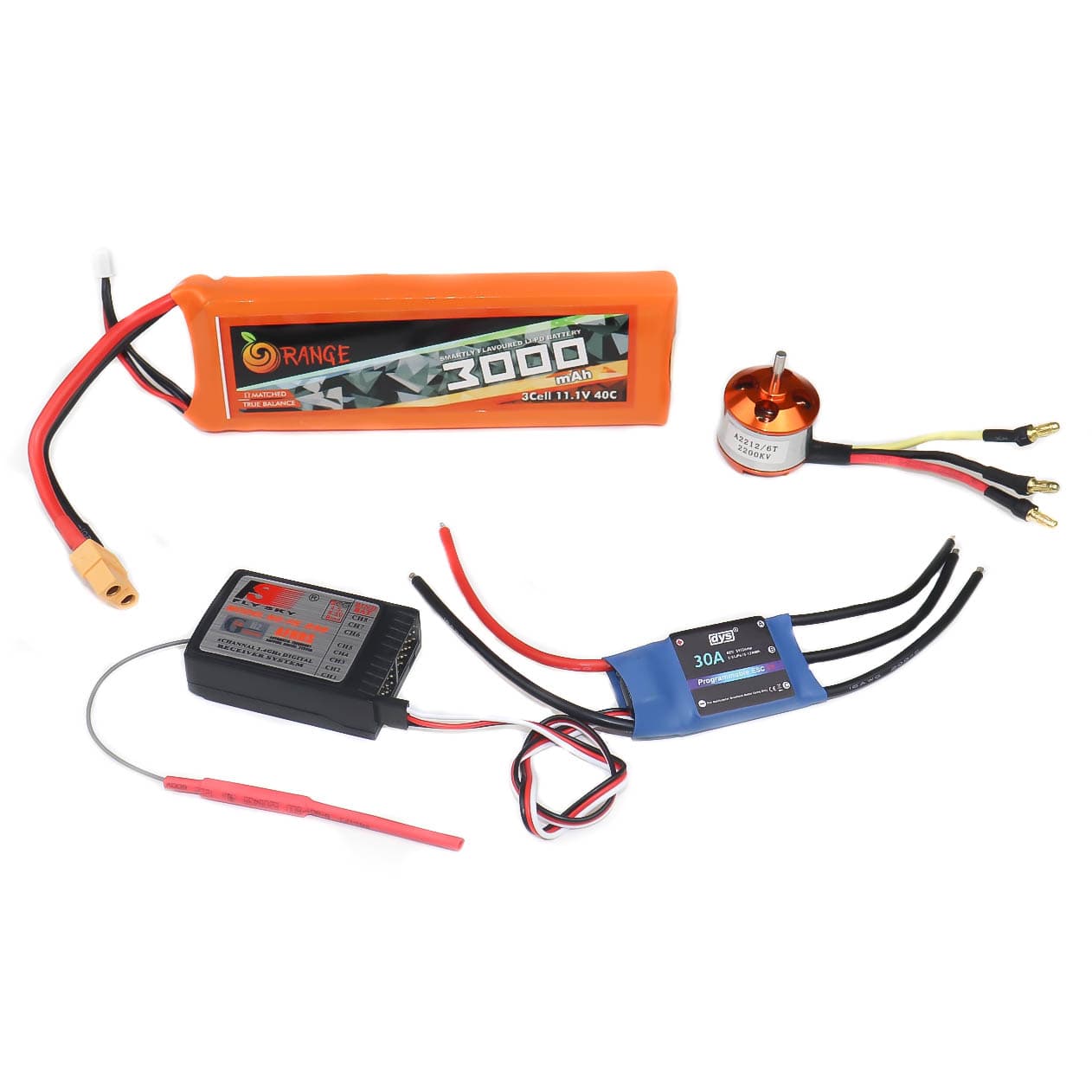

DYS SimonK 30A Brushless Speed Controller ESC Wiring (Other products not included in this package):
- Drive tube and high-power Mos, and Mos tube plus a separate heat sink; Extreme low output resistance of the PCB(printed circuit board), super current endurance.
- The power input uses extreme low output resistance greatly enhance the power stability and has a protective effect on the battery.
- Safety electrical function: when the power is turned on, regardless of the throttle stick in any position does not start the motor immediately; to avoid personal injury.
- Separately voltage regulator IC for the microprocessor; providing the good anti-jamming capability.
- Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
- Using SimonK a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator; making the motor control to more precise.
Specifications
Physical
- Weight
- 23 g
Features
- Type
- Single
- Supported Protocols
- Pwm
- ESC Firmware
- SimonK
- Current Sensor
- No
Electrical
- Continuous Current
- 30 A
- Cell Count
- 2–4 S
- Burst Current
- 40 A
Mounting & Fitment
- Mount Pattern
- Non-standard
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet12 entries
- Item Type
- Brushless ESC
- Constant Current (A)
- 30
- Burst Current (A)
- 40
- BEC (Y/N)
- Yes
- Compatible LiPO Batteries
- 2S to 4S
- Color
- Black, Blue
- Application
- BLDC Motors, Multirotors, Rc Planes etc.
- Length (mm)
- 46
- Width (mm)
- 26
- Weight (g)
- 23
- Shipping Weight
- 0.03 kg
- Shipping Dimensions
- 10 × 10 × 5 cm
In the box

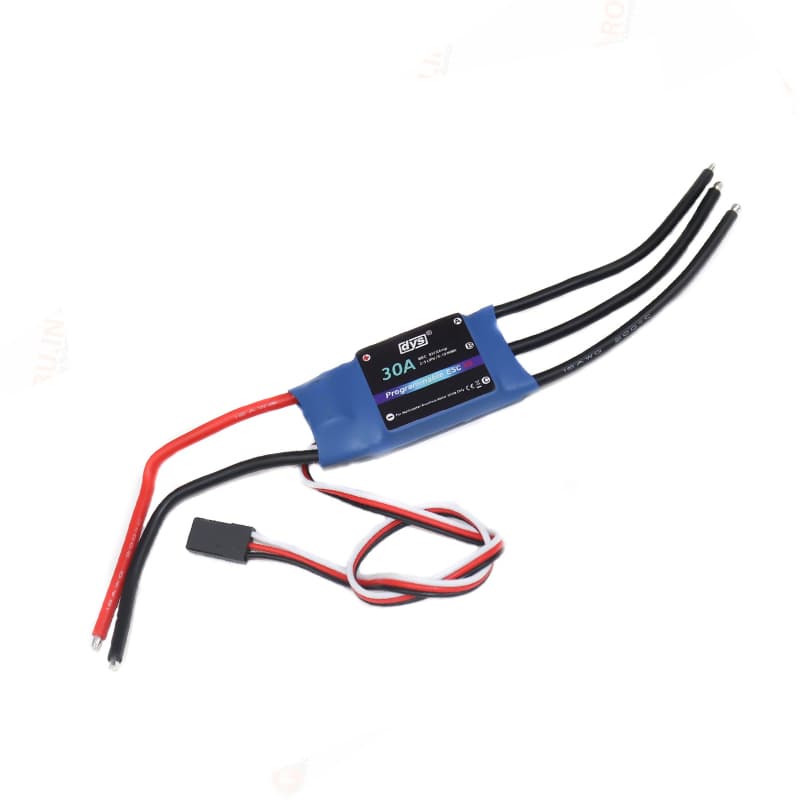

DYS SimonK 30A Brushless Speed Controller ESC For Drone (Quadcopter)- (Original)
SKU VTX-ESC-SIMONK-30A-02
Model: DYS 30A Brushless ESC. · Constant Current: 30 A. · Burst Current: 40A for 10 sec. · BEC: 5V / 2A. · Suitable Batteries: 2~4S. · Color: Black/ Blue.
₹788.14 + 18% GST
- Model: DYS 30A Brushless ESC.
- Constant Current: 30 A.
- Burst Current: 40A for 10 sec.
- BEC: 5V / 2A.
- Suitable Batteries: 2~4S.
- Color: Black/ Blue.
Product details
- SKU
- VTX-ESC-SIMONK-30A-02
- Brand
- Unbranded
- Country of origin
- China
- Warranty
- Replacement window — see terms
- HSN code
- 85043100
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
- HSN code
- 85043100
- GST
- 18%
- Country of origin
- CN
- Shipping weight
- 30 g
