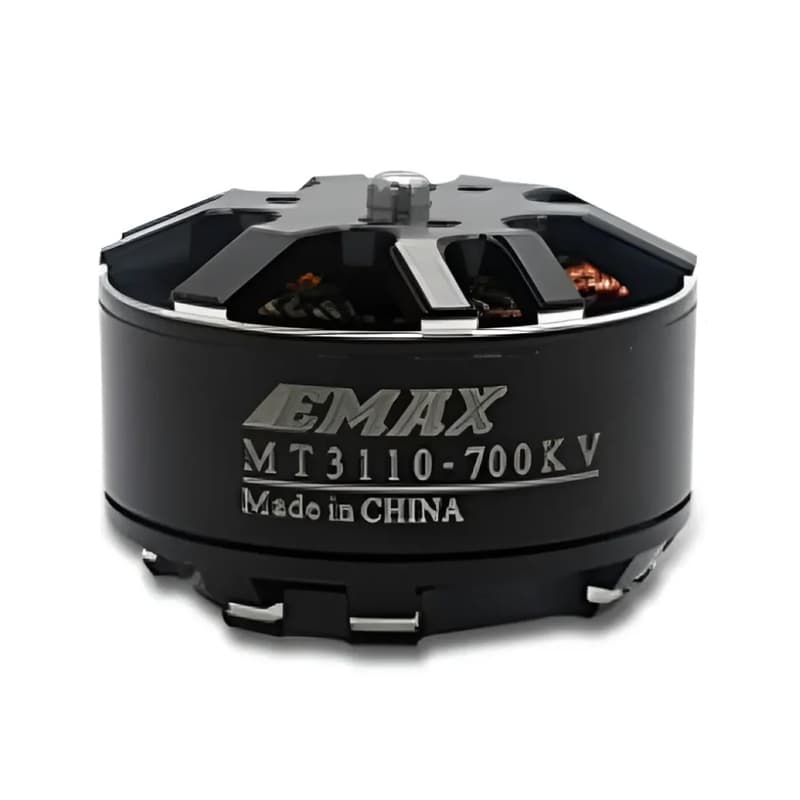

EMAX MT3110 700KV Brushless DC Motor - Silver Cap (CCW Motor Rotation)

Weight

78 g

Drives all-up weight and thrust-to-weight in the Build Studio.

KV Rating

700 KV

RPM per volt with no load. Lower KV suits higher cell counts and larger props.

Stator Size

3110

Width and height of the stator in millimetres, e.g. 2207 is 22 mm wide, 7 mm tall.

Cell Count

3–4 S

Safe LiPo cell-count window. Exceeding it will cook the windings.

Overview

This EMAX MT3110 700KV Brushless DC Motor (original) is ready to stand up your needs!!!!

These EMAX Brushless DC Motor are imported from original Emax products manufacturers. The brand Emax is known for quality oriented product manufacturing in the market. Our team has selected some of the fine innovations from EMAX and tested them for their ability in the lab before supplying to customers.

This EMAX MT3110 700KV Brushless DC Motor is specially designed for moderate-heavy lift applications while being highly efficient an reliable. MT3110 700KV BLDC motor can produce up to 1.4kg of thrust when perfectly synched with appropriate battery and propellers.

This EMAX MT3110 700KV Brushless DC Motor equips the high-quality bearings to ensure efficient and vibration free operation and silicone steel for high-performance operation with low temperature. These motors are specially meant for your Quadcopters or other types of Multirotors like Tri, Hexa etc.

It comes with a prop adapter to ease the propeller adjustment.

With qualities of durability in use and high-efficiency in performance supported by the high quality of the material, it is the perfect hit at your RC Model requirement. Its main feature includes its ability of transient response and higher stability.

The EMAX MT3110 700KV Brushless DC Motor provides appreciable thrust and efficiency at an affordable price.

“This is CCW rotating BLDC Motor, for CW rotating BLDC motor click below”,

EMAX MT3110 700KV BLDC Motor CW (Original)

Note

The BLDC Motor rotation is always opposite to the direction of Thread.

As in this case, the motor rotation direction is CCW, so the Thread tightening direction will be CW <“right-handed-thread”>.

  • Longers duration of the flight, low CG design, lightweight design.
  • Air suction system design, rapid cooling, higher efficiency and longer life.
  • U clip prevents bearing from loosening.
  • High precision CNC machining exquisite design, stern quality control revealing the user's taste and position.
  • Vibration free operation.
  • Windings are made from copper of high purity.
  • Powered by highest grade neodymium magnets.
  • Generates less heat during operations.

Specifications

Physical

Weight
78 g

Performance

KV Rating
700 KV
Stator Size
3110
Max Thrust
1430 g

Mounting & Fitment

Mount Pattern
Shaft Diameter
4 mm
Propeller Mount

Electrical

Cell Count
3–4 S
Max Continuous Current

Where a value reads as an em dash the manufacturer has not published it. We do not estimate.

Manufacturer datasheet13 entries
Motor KV (RPM/V)
700 KV
Motor Type
Brushless Motor
Compatible LiPO Batteries
3S to 4S
Model No. / Name
MT3110
Framework
12N14P
Maximum Thrust (gm)
1430
Shaft Diameter
4 mm
Compatible Prop (inch)
10 ~ 12
Length (mm)
32.1
Width (mm)
37.8
Weight (g)
78
Shipping Weight
0.078 kg
Shipping Dimensions
10 × 5 × 4 cm

In the box

011 x EMAX MT3110 700KV Brushless DC Motor
Emax

EMAX MT3110 700KV Brushless DC Motor - Silver Cap (CCW Motor Rotation)

SKU EMX-MTR-MT3110-CCW

Framework: 12N14P · Motor KV: 700KV · LiPO Batteries: 3-4S · Max Thrust: 1430 gm · Length: 32.1 mm · Shaft: 4 mm · Propeller: 10″-12″ · Diameter: 37.8 mm

₹2,808.00

₹2,379.66 + 18% GST

In stock
  • Framework: 12N14P
  • Motor KV: 700KV
  • LiPO Batteries: 3-4S
  • Max Thrust: 1430 gm
  • Length: 32.1 mm
  • Shaft: 4 mm
  • Propeller: 10″-12″
  • Diameter: 37.8 mm

Product details

SKU
EMX-MTR-MT3110-CCW
Brand
Emax
Country of origin
China
Warranty
3 months
HSN code
85013119
