Overview

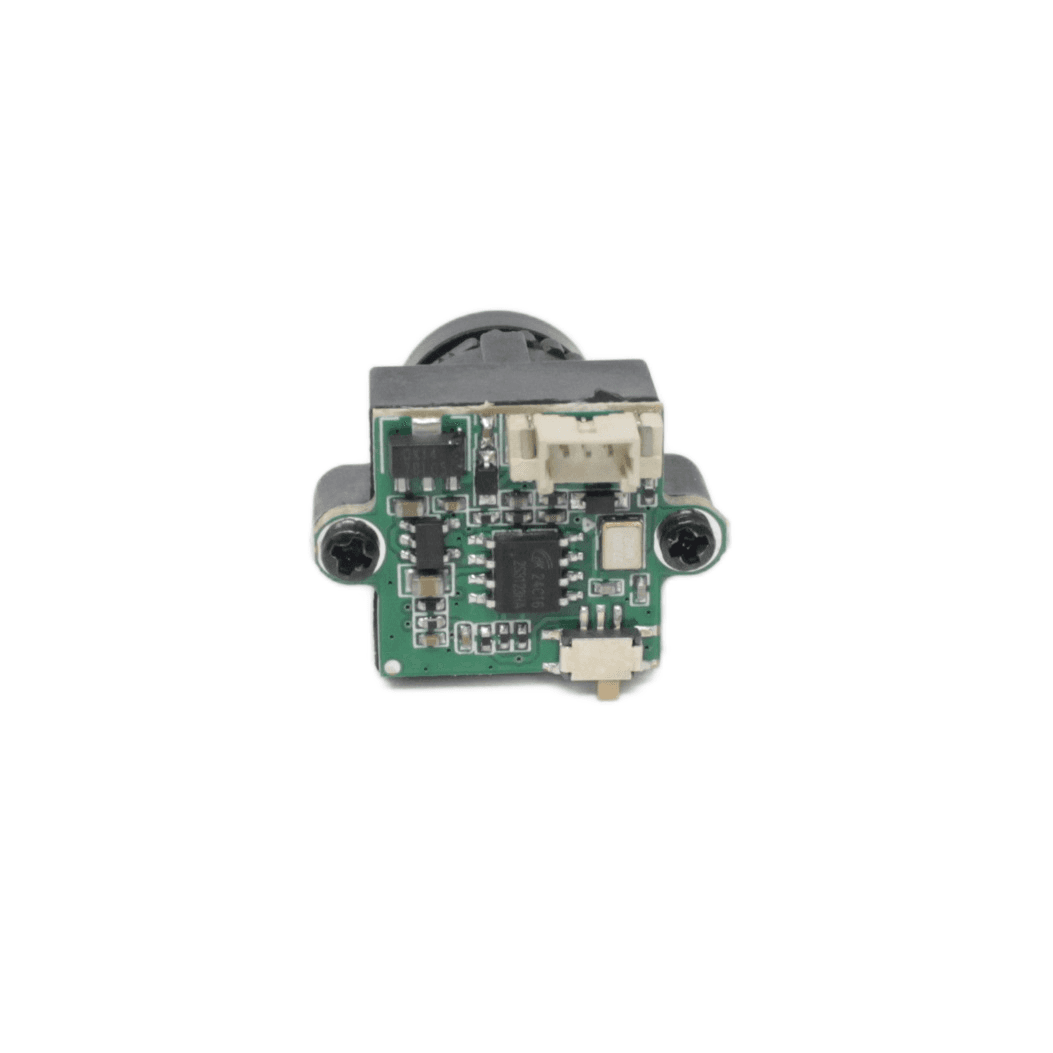

This 1000TVL 90 degree CMOS Camera can be used as both PAL and NTSC. The toggle switch is provided on the camera by which you can enjoy the operation of PAL or NTSC mode. This camera is very compact and easy to use.

This camera is tailored for FPV, dedicated to FPV HD aerial camera. It creates a delicate clear image, micro ultralight design, high definition color

Launched HD FPV camera, the definition of 1000 lines, low
Illumination, the effect is good, quality-assured, ultra-small size, very suitable for FPV
Application of special industry.
Color fidelity, low illumination, 5V power supply, micropower consumption
Working voltage range:
TV standard: N system, P system, a key switch.
Synchronization: Internal.
White Balance: Automatic.
Gain: Automatic.
BackLight Composition: Automatic.
Digital Noise Reduction: Yes (2D).

Specifications

Physical

Weight: 18 g

Mounting & Fitment

Form Factor: Full size

Video

Video System: Analogue
Sensor: 1/3" CMOS.
Aspect Ratio: 4:3
Field of View: 90 °

Electrical

Input Voltage: 5–5 V

Where a value reads as an em dash the manufacturer has not published it. We do not estimate.

Manufacturer datasheet14 entries

Item Type: FPV Camera
Resolution (TVL): 1000
Image Sensor: 1/3" CMOS.
Operating Voltage (VDC): 5
Operating Temperature (°C): -40 to 105
Minimum Illumination: 0.05LUX/F1.2.
Working Current (mA): 135±5 mA.
Gamma Correction: 0.45.
Video Output: 1.0Vp - P75Ω.
S/N Ratio (dB): ≥50
Dimensions (L x W x H) mm: 15 x 15 x 22
Weight (g): 18
Shipping Weight: 0.02 kg
Shipping Dimensions: 5 × 3 × 1 cm

In the box

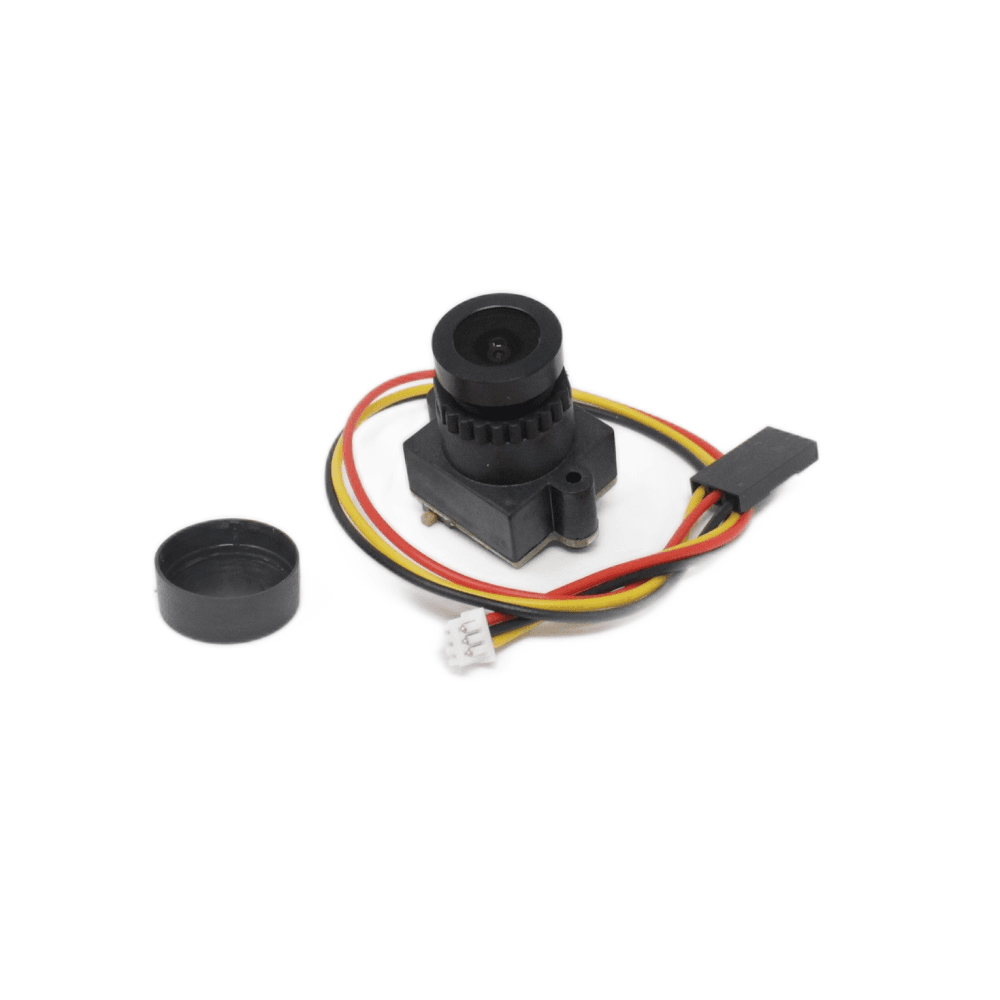

011 x 1000TVL 90 degree CMOS Camera

021 x Connecting Cable.

Confirmed to work with

Computed from published specifications — mount patterns, voltage windows and current ratings — not from what other customers happened to buy.

Batteries

See all

Orange 14.8V 4500mAh 35C 4S Lithium Polymer Battery PackCheck first

A 4S pack delivers 12.0–16.8 V but the camera accepts 5–5 V. Power it from a regulated BEC rail instead.

Pro-Range 11.1V 1300mAh 30C 3S Lithium Polymer Battery PackCheck first

A 3S pack delivers 9.0–12.6 V but the camera accepts 5–5 V. Power it from a regulated BEC rail instead.

Pro- Range 11.1V 2200mAh 30C 3S Lithium Polymer Battery PackCheck first

A 3S pack delivers 9.0–12.6 V but the camera accepts 5–5 V. Power it from a regulated BEC rail instead.

Pro-Range 11.1V 3300mAh 25C 3S Lithium Polymer Battery PackCheck first

A 3S pack delivers 9.0–12.6 V but the camera accepts 5–5 V. Power it from a regulated BEC rail instead.

Unbranded

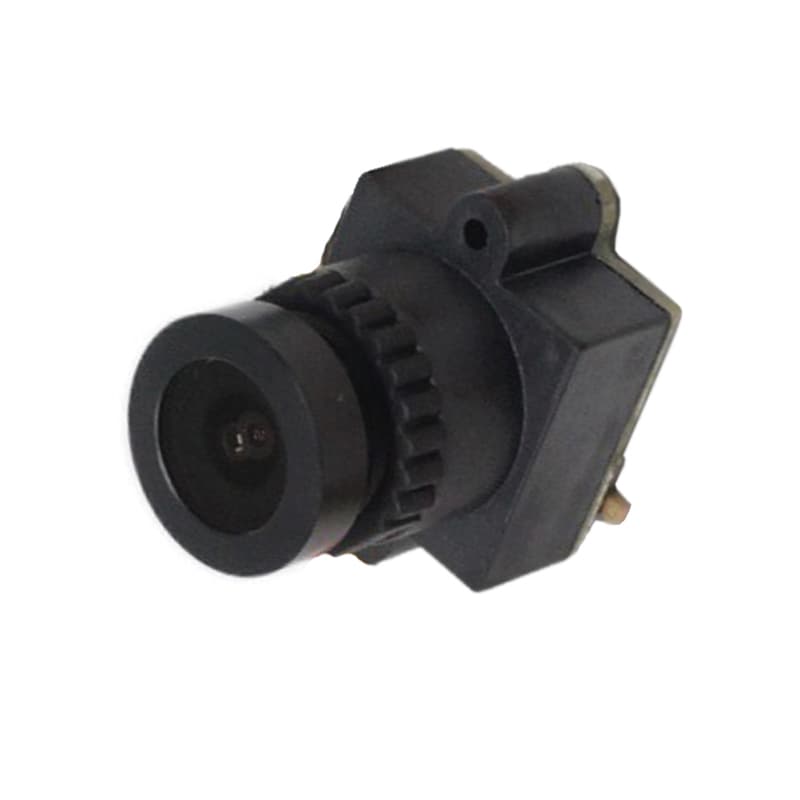

1000TVL 90 degree CMOS Camera

SKU VTX-CAM-CMOS-1000TVL

Working voltage range: 4.5V-6V DC. · Viewing Angle: 90 degrees. · Horizontal Resolution: 1000TVL. · Image Sensor: 1/3″ CMOS. · Pixels: 1280 x 720. · Minimum Illumination: 0.05LUX/F1.2. · White Balance: Automatic. · Gain: Automatic. · Digital Noise Reduction: Yes (2D). · Gamma Correction: 0.45. · S/N Ratio: ≥50dB.

₹919.00

₹778.81 + 18% GST

In stock

Working voltage range: 4.5V-6V DC.
Viewing Angle: 90 degrees.
Horizontal Resolution: 1000TVL.
Image Sensor: 1/3″ CMOS.
Pixels: 1280 x 720.
Minimum Illumination: 0.05LUX/F1.2.
White Balance: Automatic.
Gain: Automatic.
Digital Noise Reduction: Yes (2D).
Gamma Correction: 0.45.
S/N Ratio: ≥50dB.

Product details

SKU: VTX-CAM-CMOS-1000TVL
Brand: Unbranded
Country of origin: China
Warranty: Replacement window — see terms
HSN code: 85258900

Dispatch from Ghaziabad, UP

Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.

HSN code: 85258900
GST: 18%
Country of origin: CN
Shipping weight: 20 g
