Weight
15 g
Drives all-up weight and thrust-to-weight in the Build Studio.
Continuous Current
12 A
Per motor channel, sustained.
Cell Count
2–4 S
Type
Single
Overview

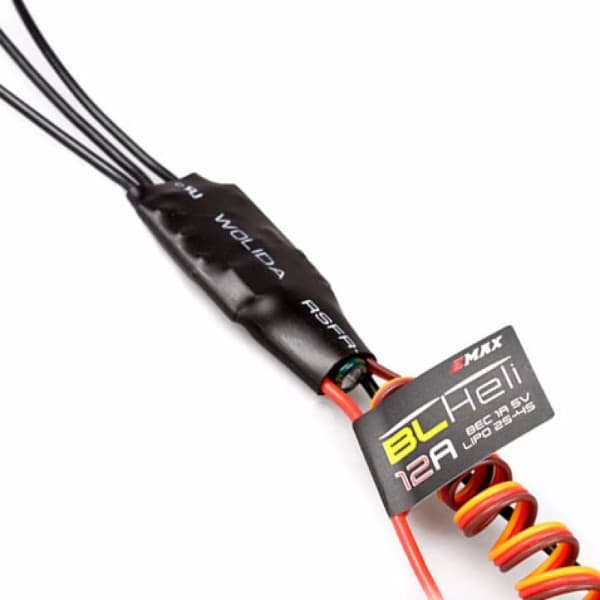

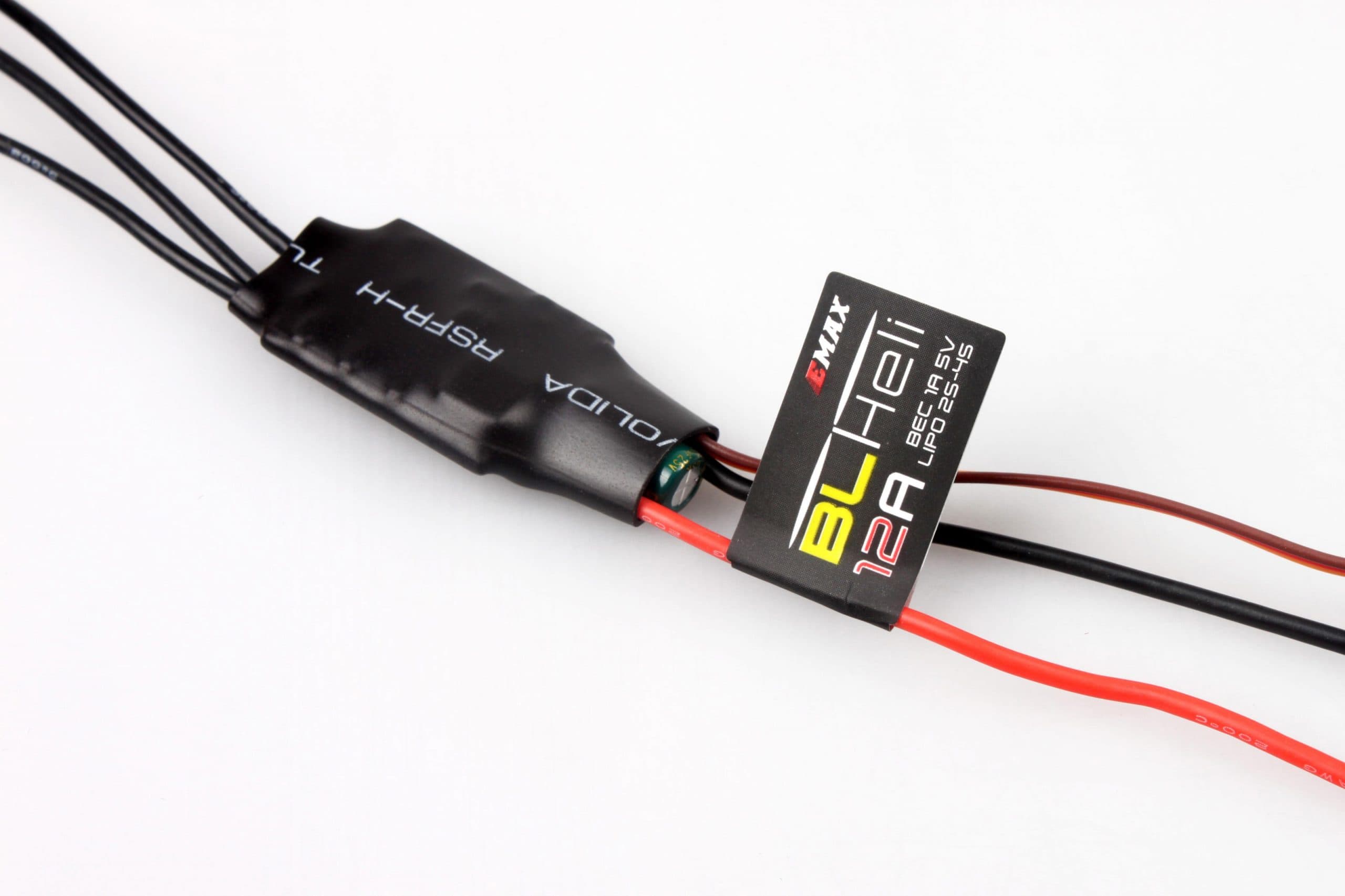

Emax BLHeli Series 12A ESC with Oneshot Based on BLHeli firmware further optimized to the perfect drive performance. It has Low-voltage protection, over-heat protection, and throttle signal loss protection.
The ESC comes with a Separate power supply for MCU and BEC, enhancing the ESC’s ability to eliminate magnetic interference. The Parameter of this ESC can be set via a program card or transmitter. Throttle range can be set to be compatible with different receivers. Equipped with built-in linear BEC or switch BEC. Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.

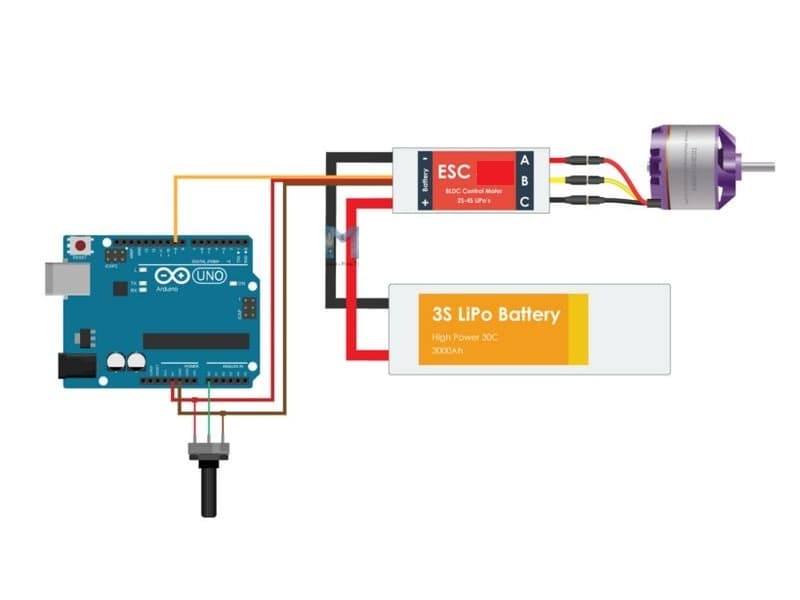

How to do ESC Connection and Calibration Click here.
100% Guaranteed Original & Genuine Emax Product.
Connections:
- Uses the authentic Electronic components to ensure high quality and enhance the current endurance ability of the ESC.
- Based on BLHeli firmware, Optimized for high performance with great linearity and much quicker throttle response.
- Specially designed for multi-rotors and compatible with fixed-wing aircraft and helicopters.
- The rotational direction of the motor is Programmable i.e. Normal, reverse or bi-directional.
- All parameters can be programmed via using a programming card or a transmitter
- Multiple protection features including Low-voltage cut-off protection/ over-heat protection.
- Alarm to help you find the device: keep the throttle on FULL OFF position for a while, the ESC will beep
- Throttle range can be configured and fully compatible with all receivers, providing smooth; linear and precise throttle response.
- One-Shot Available.

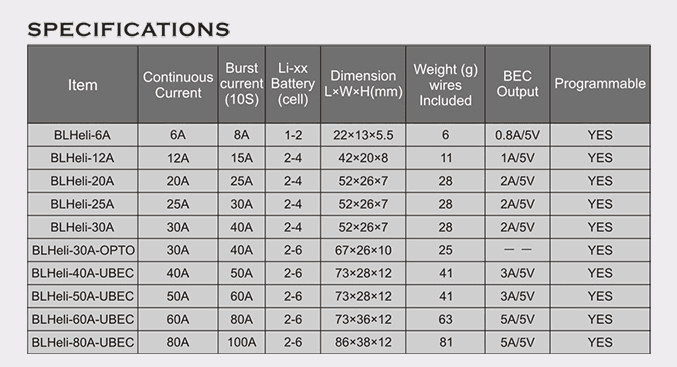

Specifications
Physical
- Weight
- 15 g
Features
- Type
- Single
- Supported Protocols
- ONESHOT125
- ESC Firmware
- BLHeli_S
- Current Sensor
- No
Electrical
- Continuous Current
- 12 A
- Cell Count
- 2–4 S
- Burst Current
- 15 A
Mounting & Fitment
- Mount Pattern
- Non-standard
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet13 entries
- Item Type
- Brushless ESC
- Model No. / Name
- Emax BLHeli Series 12A ESC
- Burst Current (A)
- 15
- Constant Current (A)
- 12
- BEC (Y/N)
- Yes, (5V/1A)
- Compatible LiPO Batteries
- 2S to 4S
- Color
- Black
- Application
- Multi-roter, Rc Plane etc.
- Length (mm)
- 44
- Width (mm)
- 20
- Weight (g)
- 15
- Shipping Weight
- 0.018 kg
- Shipping Dimensions
- 8 × 8 × 4 cm
In the box

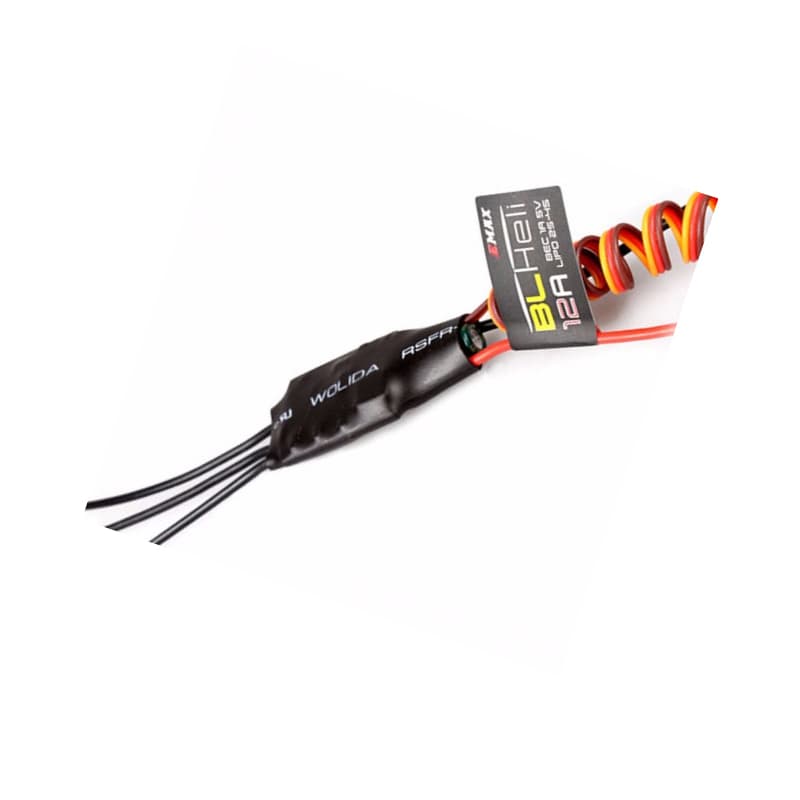

Emax BLHeli Series 12A ESC with Oneshot (Original)
SKU EMX-ESC-BLHELIS-12A
Constant Current: 12A. · ESC Type: Brushless. · Burst Current: 15A. · Battery: 2-4S Lipo. · BEC: 5 V / 1A. · Support: Oneshot 125 Protocol.
₹787.29 + 18% GST
- Constant Current: 12A.
- ESC Type: Brushless.
- Burst Current: 15A.
- Battery: 2-4S Lipo.
- BEC: 5 V / 1A.
- Support: Oneshot 125 Protocol.
Product details
- SKU
- EMX-ESC-BLHELIS-12A
- Brand
- Emax
- Country of origin
- China
- Warranty
- 3 months
- HSN code
- 85043100
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
3-month warranty
Covers manufacturing defects. Crash damage is not covered.
- HSN code
- 85043100
- GST
- 18%
- Country of origin
- CN
- Shipping weight
- 18 g
