Weight
4 g
Drives all-up weight and thrust-to-weight in the Build Studio.
Form Factor
Full size
Video System
Analogue
Aspect Ratio
4:3
Overview

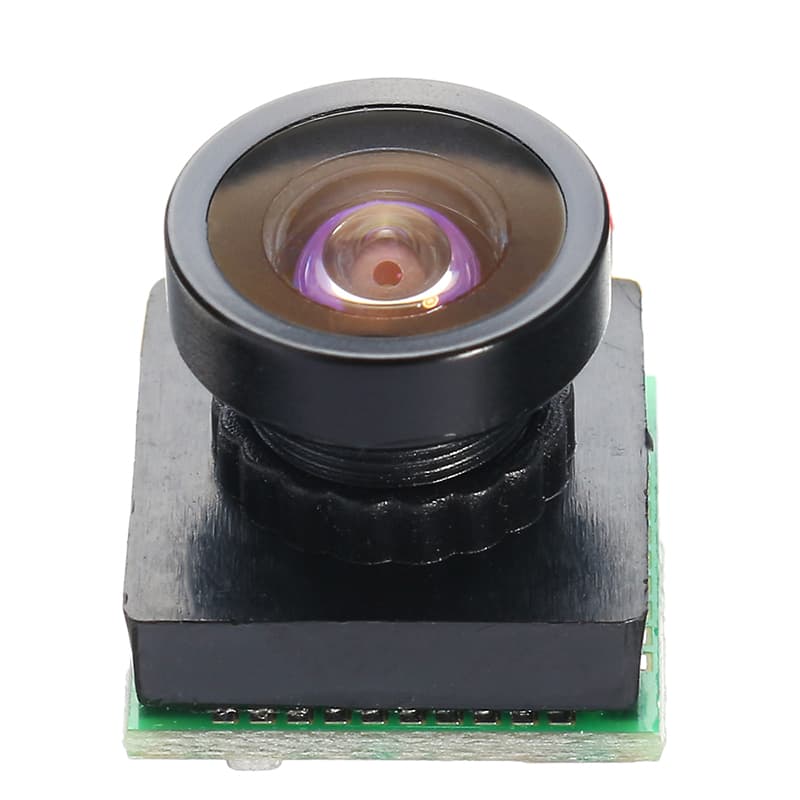

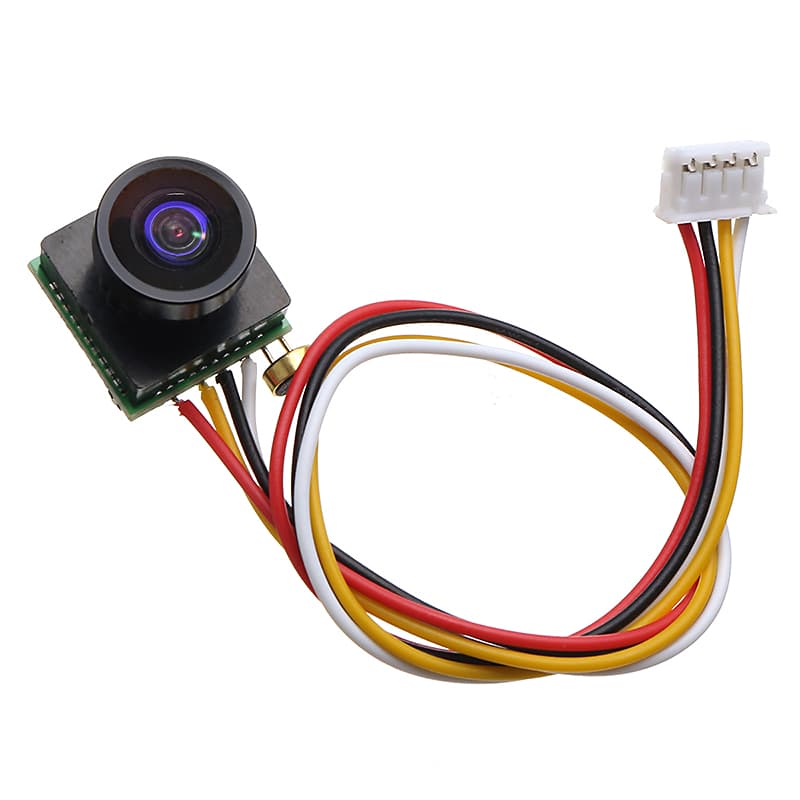

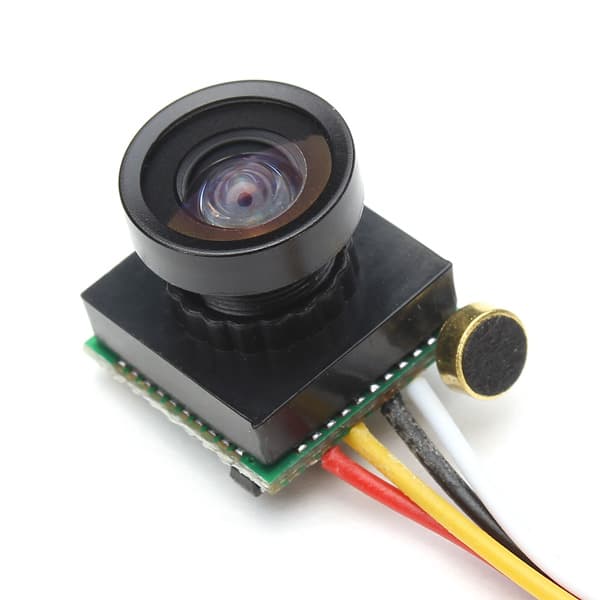

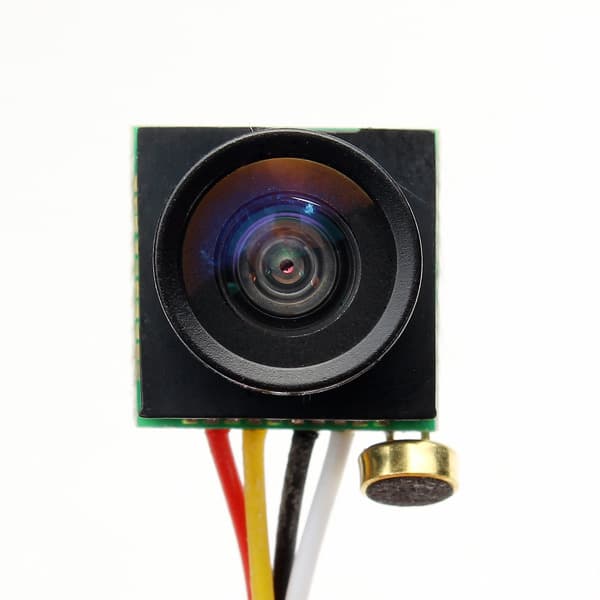

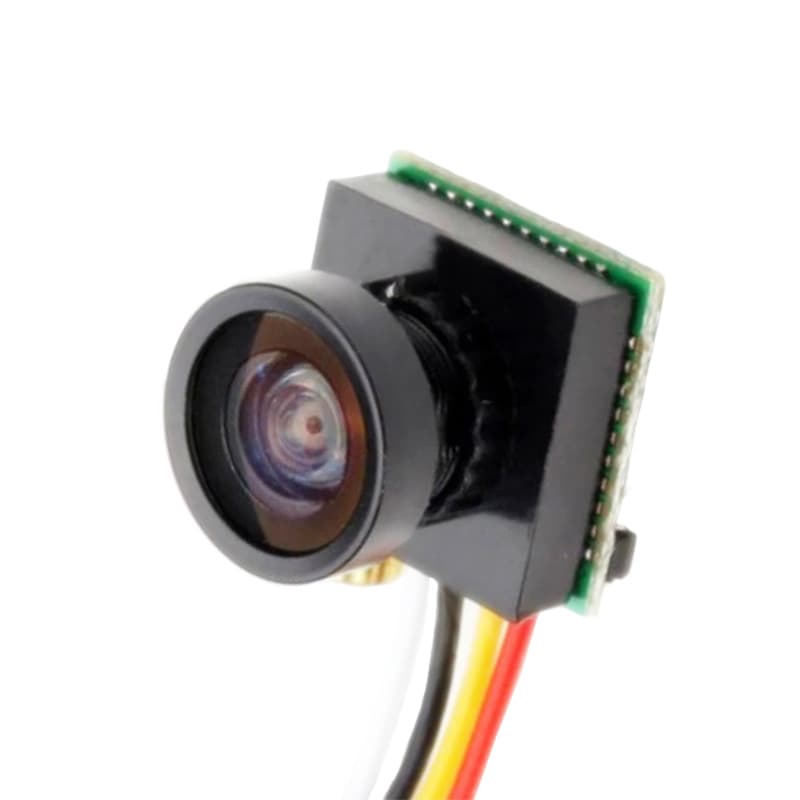

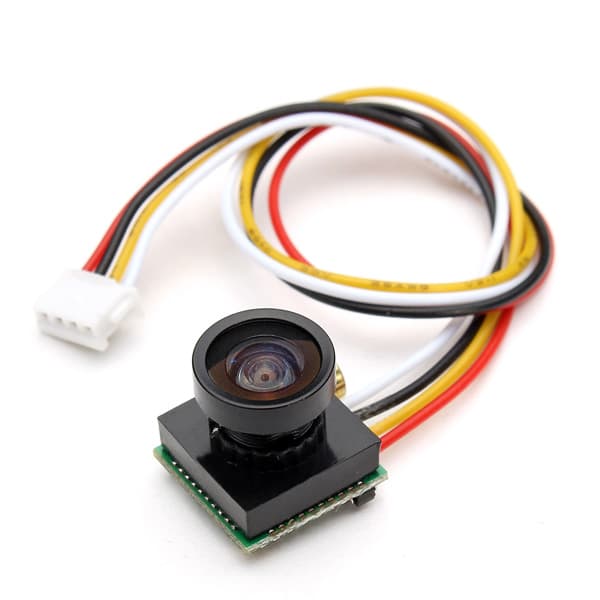

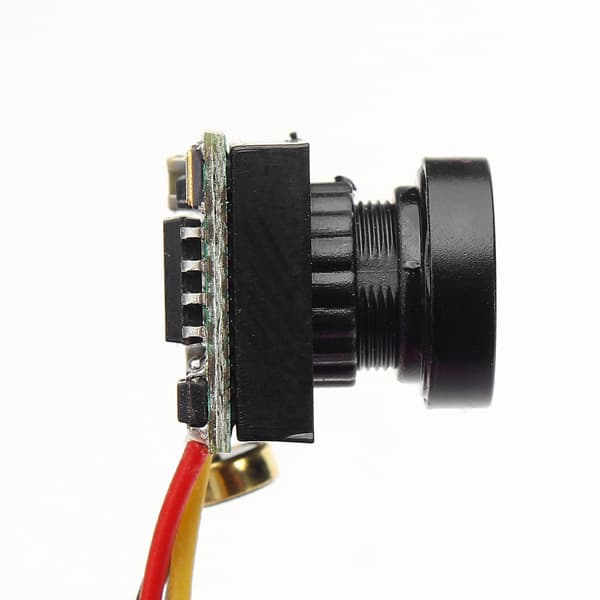

This is a 600TVL 170 Degree Mini FPV AV Camera with Audio for Mini 200 250 300 Drone.
If you want to build a drone, an FPV camera is one of the most important components to include. The receiver receives video or photos from the FPV camera. As a result, a camera is necessary for the drone's construction. This FPV camera support both PAL and NTSC where PAL is slightly sharper and clearer text display on the screen and NTSC is used for slightly higher frame rate, and it helps with smoother FPV video playback and the Lens can be tilted up to 170 degrees. This Type of FPV camera is used for many of the same applications like Aerial photography and cinematography, remote inspections, security, Military, and Other entertainment purposes.
This 600TVL 170 degree super small color video mini FPV camera with audio can be used for Mini 200/ 250/ 300 Quadcopter and The frame Speed of the camera is about 50f/s which is the ideal frame rate for shooting slow-motion footage. Its tiny and lightweight size with the best features in the class like 3.7-5V 100mA operating power requirement, 1280 x 960 recording resolution, great capturing capability even in low light conditions makes it suitable for your quadcopter Application.
Note:

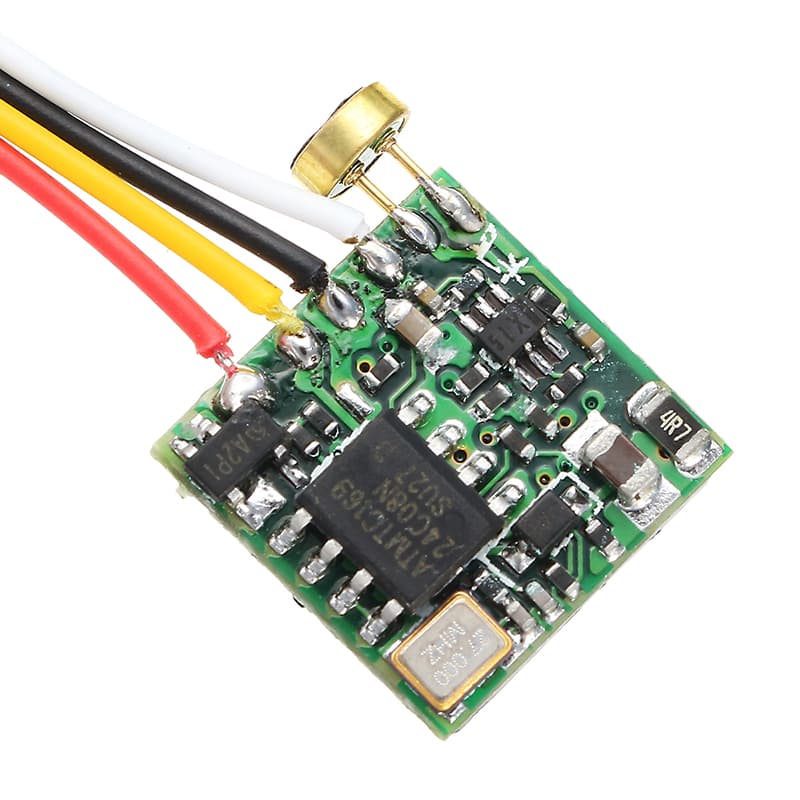

Image may vary from actual product in terms of IC branding and PCB design.
To Explore more about FPV Cameras, Click here
- Illumination: 0.5LUX
- Format: PAL / NTSC
- Audio Lens: Wide-angle 1.8mm (170 degrees)
- Sensitive area: 3.5964mm x 2.7084mm
- 648 pixels (horizontal) × 488 (vertical)
- Scanning Frequency Horizontal: 15.625KHz
- Vertical: 50Hz
- level: 15.7343KHz
- Vertical: 60Hz
- Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
- Standard Lens : 1.8 mm
- Size of the lens : M10
- Power: DC5V ± 10% 70mA ± 10%
- Operating temperature Range: -10 °C ~ 60 °CRH95% Max
Specifications
Physical
- Weight
- 4 g
Mounting & Fitment
- Form Factor
- Full size
Video
- Video System
- Analogue
- Sensor
- 1/4 CMOS
- Aspect Ratio
- 4:3
- Field of View
- 170 °
Electrical
- Input Voltage
- 3.7–5 V
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet12 entries
- Item Type
- FPV Camera
- Resolution (TVL)
- 600
- Image Sensor
- 1/4 CMOS
- Minimum Illumination
- 0.1 Lux / F1.2
- Resolution
- 1280 x 960
- Video Output
- 1.0Vp - P75Ω.
- S/N Ratio (dB)
- 48
- Operating Temperature (°C)
- -10 to 50
- Dimensions (L x W x H) mm
- 12.5 x 12.5 x 17
- Weight (g)
- 4
- Shipping Weight
- 0.02 kg
- Shipping Dimensions
- 3 × 3 × 1 cm

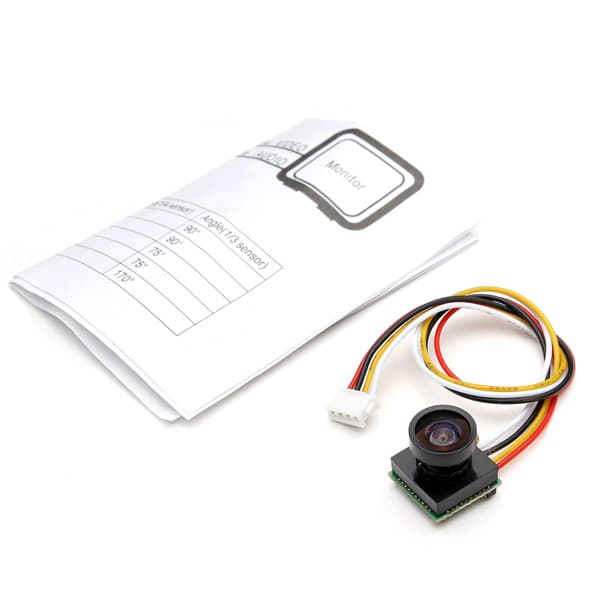

In the box
600TVL 170 Degree Mini FPV AV Camera with Audio for Mini 200 250 300 Drone
SKU VTX-CAM-AUDIO-600TVL
Power supply range: 3.7-5V 100mA · Resolution: 1280 x 960 · Resolution: 600TVL · Illumination: 0.5LUX · Format: PAL / NTSC · Audio Lens: Wide-angle 1.8mm (170º) · Image sensor:1/4 CMOS image sensor · Sensitive area: 3.5964mm x 2.7084mm · Size of the lens: M10
₹872.03 + 18% GST
- Power supply range: 3.7-5V 100mA
- Resolution: 1280 x 960
- Resolution: 600TVL
- Illumination: 0.5LUX
- Format: PAL / NTSC
- Audio Lens: Wide-angle 1.8mm (170º)
- Image sensor:1/4 CMOS image sensor
- Sensitive area: 3.5964mm x 2.7084mm
- Size of the lens: M10
Product details
- SKU
- VTX-CAM-AUDIO-600TVL
- Brand
- Generic
- Country of origin
- China
- Warranty
- Replacement window — see terms
- HSN code
- 85258900
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
- HSN code
- 85258900
- GST
- 18%
- Country of origin
- CN
- Shipping weight
- 20 g
