Weight
70 g
Drives all-up weight and thrust-to-weight in the Build Studio.
KV Rating
750 KV
RPM per volt with no load. Lower KV suits higher cell counts and larger props.
Stator Size
2836
Width and height of the stator in millimetres, e.g. 2207 is 22 mm wide, 7 mm tall.
Cell Count
2–4 S
Safe LiPo cell-count window. Exceeding it will cook the windings.
Overview
This DYS D2836 750KV Outrunner Brushless Drone Motor (Original) specifically made to power Quadcopters and Multirotors. It is a 750kV motor. It provides high performance, superpower, and brilliant efficiency. These motors are perfect for medium size quadcopters with 4 propellers.
The motor comes with 3mm banana male connector attached which can be directly connected with 40A ESC without any soldering requirement
With a 2-4S LiPo battery, 40A ESC, and high efficiency 10" propellers, these motors provide up to 800gms of thrust each. Using 4 of these motors on a quadcopter with orange propellers will give you a total of 3.2 kg thrust! Use this to build powerful and efficient quadcopters.
This DYS D2836 750KV Outrunner Brushless Drone Motor (Original) is a low price and excellent quality Brushless Motor. It comes with Bullet Connectors already soldered.
APPLICATION :
Drones
Quadcopters
Multirotors
RC Airplanes
UAV
- The steel design is capable of withstanding competitive conditions.
- Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
- Compact size.
- Offers great performance and value for money.
- Smooth throttle response for best RC experience.

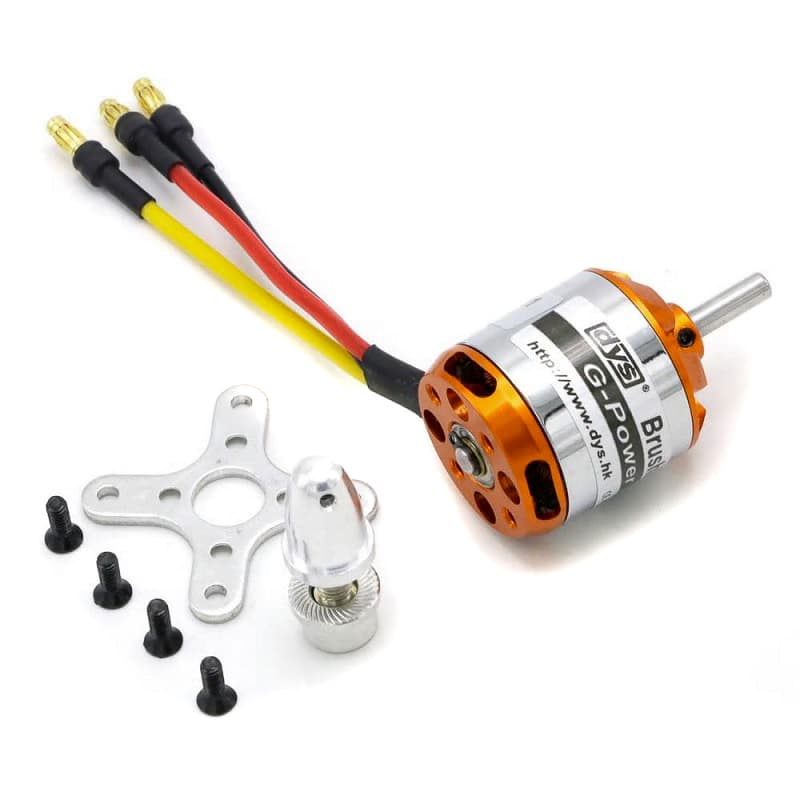

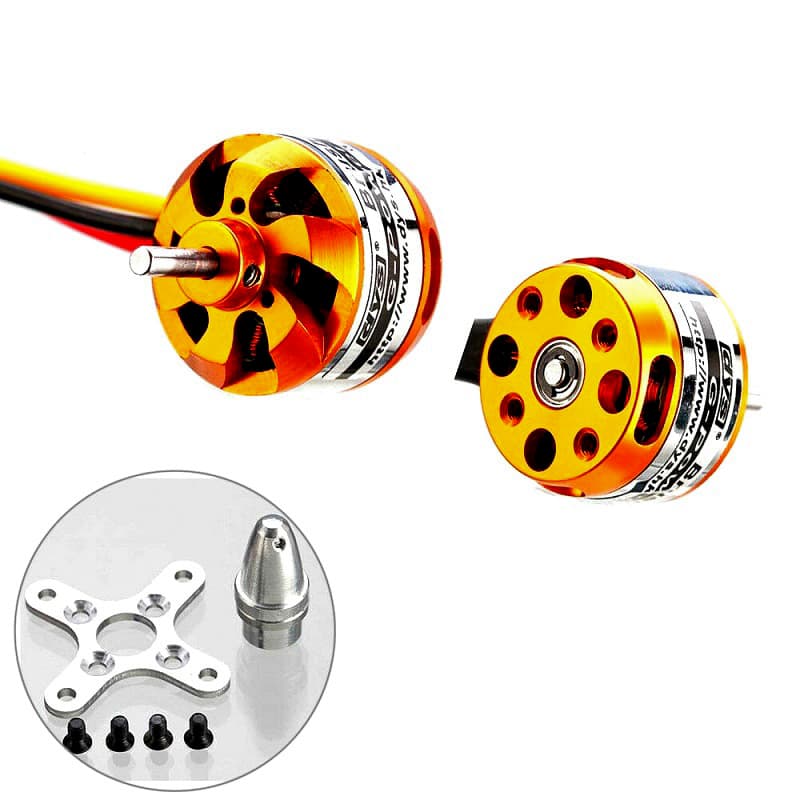

- Package Included:
- 1 x DYS D2836 750KV Brushless Motor
- 1 x Prop Adapter
- 1 x A Motor Holder (X-type) and set of screws
- 1 x User Manual
Specifications
Physical
- Weight
- 70 g
Performance
- KV Rating
- 750 KV
- Stator Size
- 2836
- Max Thrust
- 800 g
Mounting & Fitment
- Mount Pattern
- —
- Shaft Diameter
- 4 mm
- Propeller Mount
- —
Electrical
- Cell Count
- 2–4 S
- Max Continuous Current
- 40 A
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet10 entries
- Motor KV (RPM/V)
- 750 KV
- Motor Type
- Brushless Motor
- Shaft Diameter
- 4 mm
- Max. Power (W)
- 206
- Compatible Prop (inch)
- 09-12inch
- Required ESC (A)
- 40
- Width (mm)
- 28
- Weight (g)
- 70
- Shipping Weight
- 0.075 kg
- Shipping Dimensions
- 7 × 4 × 2 cm

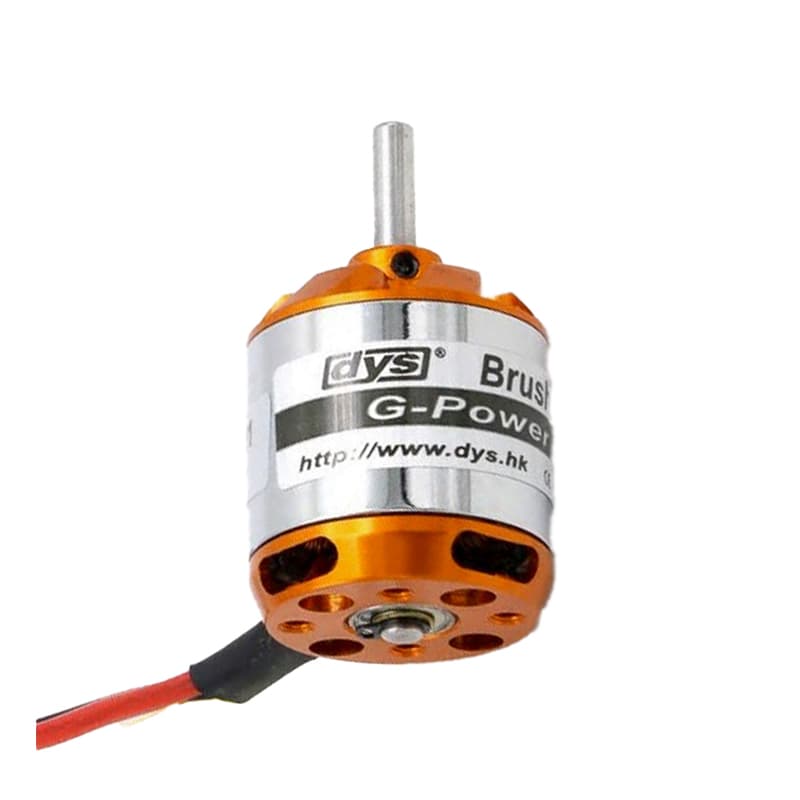

DYS D2836 750KV Outrunner Brushless Drone Motor (Original)
SKU DYS-MTR-D2836-750
Model: D2836-11 · Voltage: 2-4Li-Po · Kv: 750 rpm/v · Shaft Diameter: 4mm · Shaft Length: 10mm · Max Watts: 206W · ESC: 40A · Screw Size: M3
₹1,490.68 + 18% GST
- Model: D2836-11
- Voltage: 2-4Li-Po
- Kv: 750 rpm/v
- Shaft Diameter: 4mm
- Shaft Length: 10mm
- Max Watts: 206W
- ESC: 40A
- Screw Size: M3
Product details
- SKU
- DYS-MTR-D2836-750
- Brand
- Dys
- Country of origin
- China
- Warranty
- Replacement window — see terms
- HSN code
- 85013119
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
- HSN code
- 85013119
- GST
- 18%
- Country of origin
- CN
- Shipping weight
- 75 g
