Weight
115 g
Drives all-up weight and thrust-to-weight in the Build Studio.
KV Rating
900 KV
RPM per volt with no load. Lower KV suits higher cell counts and larger props.
Stator Size
3115
Width and height of the stator in millimetres, e.g. 2207 is 22 mm wide, 7 mm tall.
Cell Count
6–6 S
Safe LiPo cell-count window. Exceeding it will cook the windings.
Overview
The T-Motor Velox V3115 900KV is a high-performance motor designed for FPV drones requiring high efficiency and stability, especially for long-range flights. With a 900KV rating, this motor is ideal for large drone builds and high-end racing applications. It provides smooth power, excellent control, and reliability during flight.
- KV Rating: 900KV for smooth and controlled power.
- Voltage: Compatible with 6S LiPo batteries.
- Compatibility: Suitable for large FPV racing and long-range drones.
- Durability: Built with premium materials for extended lifespan and reliability.
- Weight: Lightweight design for better maneuverability.
- Mounting Pattern: 16x19mm (M3) for easy frame compatibility.
- Recommended Propellers: Works well with 7-8 inch propellers.
Specifications
Physical
- Weight
- 115 g
Performance
- KV Rating
- 900 KV
- Stator Size
- 3115
- Max Thrust
- 5000 g
Mounting & Fitment
- Mount Pattern
- 19 × 19 mm
- Shaft Diameter
- 5 mm
- Propeller Mount
- 5 mm shaft
Electrical
- Cell Count
- 6–6 S
- Max Continuous Current
- 30 A
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet9 entries
- Model No. / Name
- T-Motor Velox V3115
- Motor KV (RPM/V)
- 900 KV
- Max Current (A)
- 30
- Rated Voltage (VDC)
- 6S
- Motor Type
- Brushless Motor
- Weight (g)
- 115
- Manufacturer
- RCA Corporation
- Shipping Weight
- 0.12 kg
- Shipping Dimensions
- 5 × 5 × 5 cm
In the box

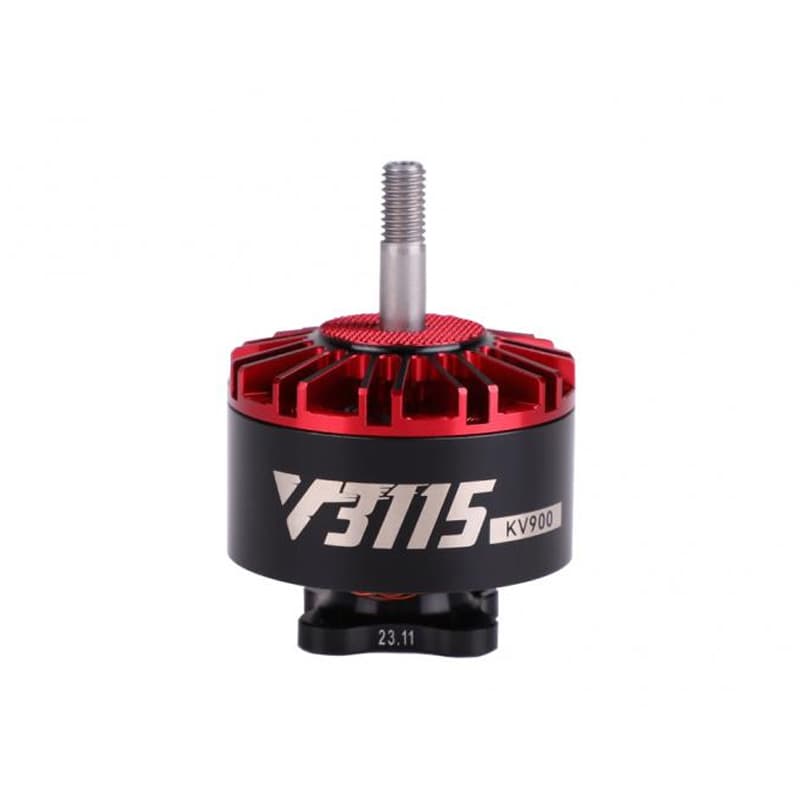

T Motor Velox V3115 FPV Drone Motors 900 KV
SKU TMT-MTR-VELOX-900
Model: T-Motor Velox V3115 · KV Rating: 900KV · Compatibility: 6S LiPo, 7-8 inch propellers · Ideal for: Long-range FPV and racing drones · Weight: 114.2g
₹5,388.98 + 18% GST
- Model: T-Motor Velox V3115
- KV Rating: 900KV
- Compatibility: 6S LiPo, 7-8 inch propellers
- Ideal for: Long-range FPV and racing drones
- Weight: 114.2g
Product details
- SKU
- TMT-MTR-VELOX-900
- Brand
- T-Motor
- Country of origin
- China
- Warranty
- 6 months
- HSN code
- 85013119
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
6-month warranty
Covers manufacturing defects. Crash damage is not covered.
- HSN code
- 85013119
- GST
- 18%
- Country of origin
- CN
- Shipping weight
- 120 g
