Weight
142 g
Drives all-up weight and thrust-to-weight in the Build Studio.
Wheelbase
260 mm
Diagonal motor-to-motor distance.
Max Propeller Size
6 in
Motor Mount Pattern
19 × 19 mm
Overview

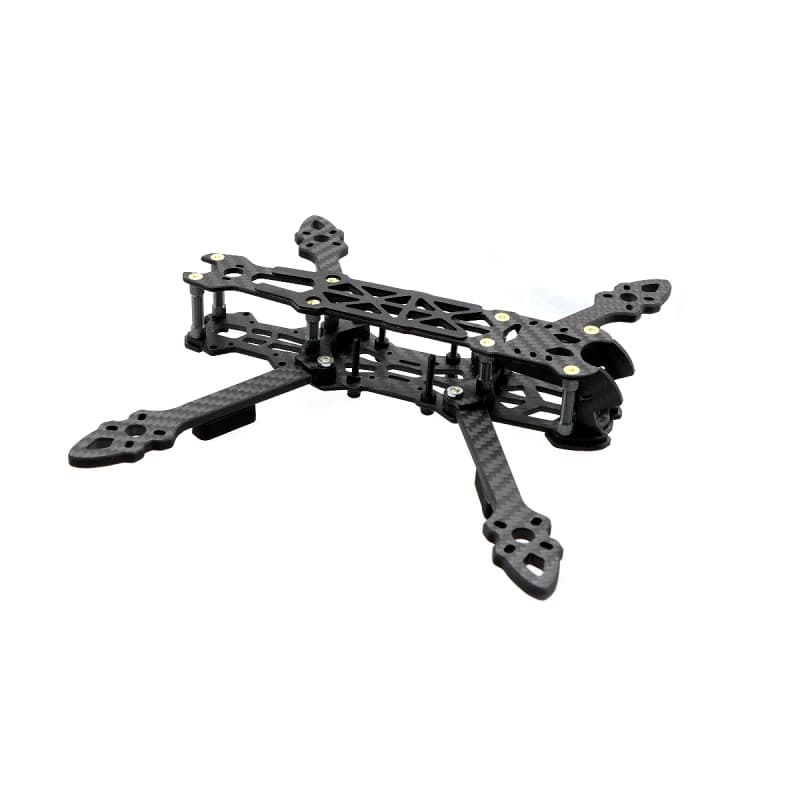

The Mark4 6 Inch 260mm Carbon Fiber Racing Frame. This frame is built specifically to tackle the problems in FPV Racing and video recording with quadcopters. It is known for its toughness and durability.
The Carbon fiber is mostly an accepted material for frame designing because of its high stiffness to weight ratio. The Carbon Fiber Frames are very rigid and improve stability and flight performance. The frame is lightweight and possesses thick arms, so as to give them good mechanical strength.
The frame has a wheelbase of 260mm. It features a very large area on the mainframe for mounting cameras and other accessories. This frame supports 19.3mm board cams as well as cams in cases with mounting brackets.
Its longer top and bottom plate allows easy mounting of HD cameras and batteries. so more spacious room for all kinds of electronics!!!
You can also check our following Multirotor Kits category if you are a beginner or just not willing to send lot much of time in selecting appropriate parts for your quadcopter and want your quad in the air as soon as possible,
Multirotor Kits
- Lightweight and Durable.
- Made by super strong and advanced engineering material.
- The frame has excellent strength.
- Equips vibration-free mounting bracket for FPV camera.
Specifications
Physical
- Weight
- 142 g
- Wheelbase
- 260 mm
- Arm Thickness
- 5 mm
Mounting & Fitment
- Max Propeller Size
- 6 in
- Motor Mount Pattern
- 19 × 19 mm
- Stack Mounting
- 30.5 × 30.5 mm, 20 × 20 mm
- Camera Mounting
- Micro
- Max Battery Width
- —
Features
- Style
- Racing
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet9 entries
- Item Type
- Kit
- Model No. / Name
- Mark4
- Compatible Prop (inch)
- 6
- Wheelbase
- 260 mm
- Arm Size (L x W)
- 140x20
- Thickness (mm)
- 5
- Weight (g)
- 142
- Shipping Weight
- 0.19 kg
- Shipping Dimensions
- 21.5 × 10.5 × 4 cm

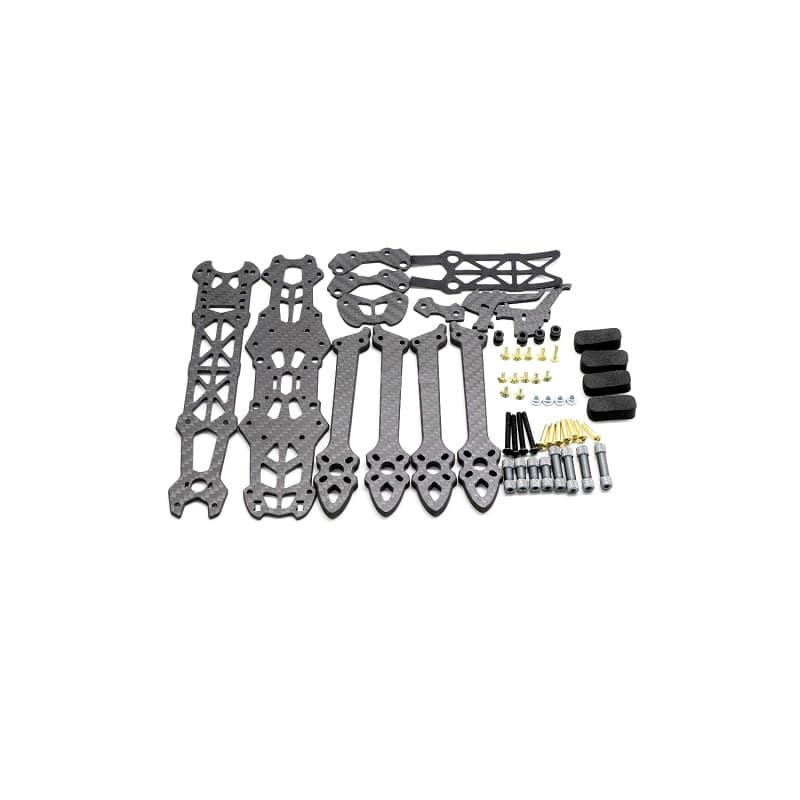

In the box
Mark4 6 Inch 260mm Carbon Fiber Racing Frame Kit
SKU RTS-FRM-MARK4
Model: MARK4 · Wheelbase: 250mm · Material: Full Carbon Fiber · Arm Thickness:5 mm · Weight: 160 gm
₹2,151.69 + 18% GST
- Model: MARK4
- Wheelbase: 250mm
- Material: Full Carbon Fiber
- Arm Thickness:5 mm
- Weight: 160 gm
Product details
- SKU
- RTS-FRM-MARK4
- Brand
- ReadytoSky
- Country of origin
- China
- Warranty
- Replacement window — see terms
- HSN code
- 88073000
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
- HSN code
- 88073000
- GST
- 18%
- Country of origin
- CN
- Shipping weight
- 190 g
