Weight
9 g
Drives all-up weight and thrust-to-weight in the Build Studio.
Form Factor
Micro
Video System
Analogue
Aspect Ratio
Switchable
Overview
The RunCam Phoenix 2 Micro FPV Camera for Quadcopters is both a great daylight and low light FPV camera, equipped with an improve 1/2" image sensor and high quality M12 lens. The Phoenix features a high 1000 TVL picture with a 4:3 or 16:9 aspect ratio option, WDR CMOS, and fast image processing. This micro FPV camera comes in a custom white camera shell for not only a cool look - but also a great way to keep your camera cool from absorbing too much heat.
This is one of the best micro FPV cameras on the market with top of the line peformance at a competitive price.
Note : Camera color may be different.
- New upgraded CPU for better performance
- High quality 6 layer glass lens for better picture
- Supports Image Mirror & Flip
- Low latency, high performance
- Excellent low light performance
Specifications
Physical
- Weight
- 9 g
Mounting & Fitment
- Form Factor
- Micro
Video
- Video System
- Analogue
- Sensor
- 1/2" CMOS
- Aspect Ratio
- Switchable
- Field of View
- 155 °
Electrical
- Input Voltage
- 5–36 V
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet18 entries
- Item Type
- FPV Camera
- Resolution (TVL)
- 1000
- Min. Illumination
- 0.001Lux@1.2F
- Operating Voltage (VDC)
- 5 to 36
- Max. Operating Current (A)
- 220mA@5V ; 120mA@12V
- Electronic Shutter Speed
- Auto
- Angle (FOV)
- 2.1mm (M12) FOV155° (4:3)
- Horizontal Resolution (TVL)
- 1000
- Screen Format
- 4:3 / 16:9 Switchable
- Max Gain
- Auto
- S/N Ratio (dB)
- >50dB (AGC OFF)
- Signal System
- NTSC / PAL Switchable
- Housing Material
- ABS
- Length (mm)
- 19
- Width (mm)
- 19
- Weight (g)
- 9
- Shipping Weight
- 0.04 kg
- Shipping Dimensions
- 7 × 5 × 4 cm
In the box

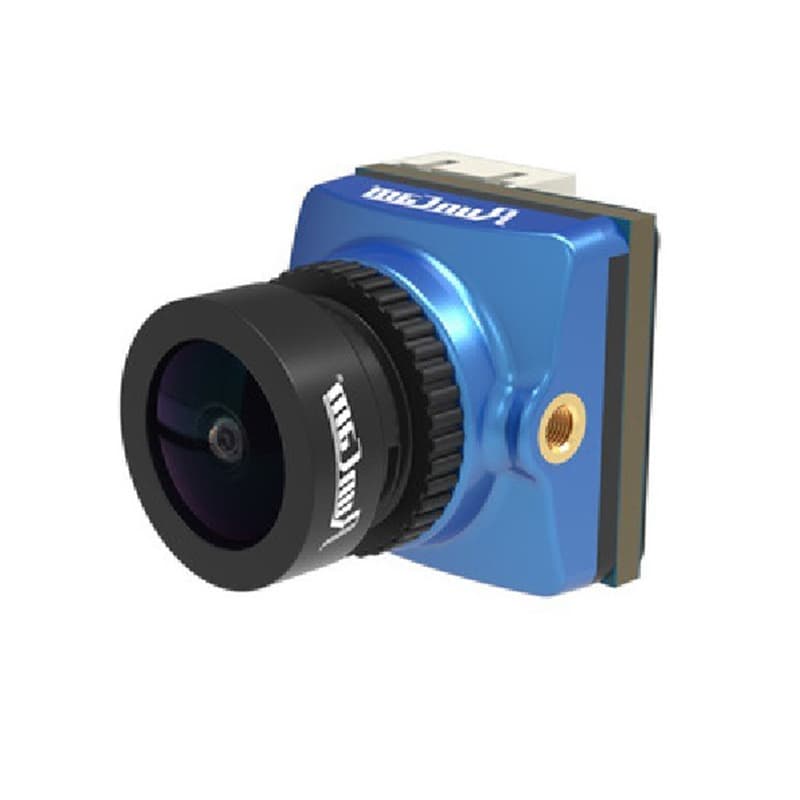

RunCam Phoenix 2 Micro FPV Camera for Quadcopters
SKU RNC-CAM-PHOENIX
Model: RunCam Phoenix 2 · Image Sensor: 1/2" COMS Sensor · Horizontal Resolution: 1000TVL · Lens: 2.1mm (M12) FOV155° (4:3) · Signal System: PAL / NTSC Switchable · Min. Illumination: 0.001Lux@1.2F
₹4,160.17 + 18% GST
- Model: RunCam Phoenix 2
- Image Sensor: 1/2" COMS Sensor
- Horizontal Resolution: 1000TVL
- Lens: 2.1mm (M12) FOV155° (4:3)
- Signal System: PAL / NTSC Switchable
- Min. Illumination: 0.001Lux@1.2F
Product details
- SKU
- RNC-CAM-PHOENIX
- Brand
- RunCam
- Country of origin
- China
- Warranty
- 12 months
- HSN code
- 85258900
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
12-month warranty
Covers manufacturing defects. Crash damage is not covered.
- HSN code
- 85258900
- GST
- 18%
- Country of origin
- CN
- Shipping weight
- 40 g
