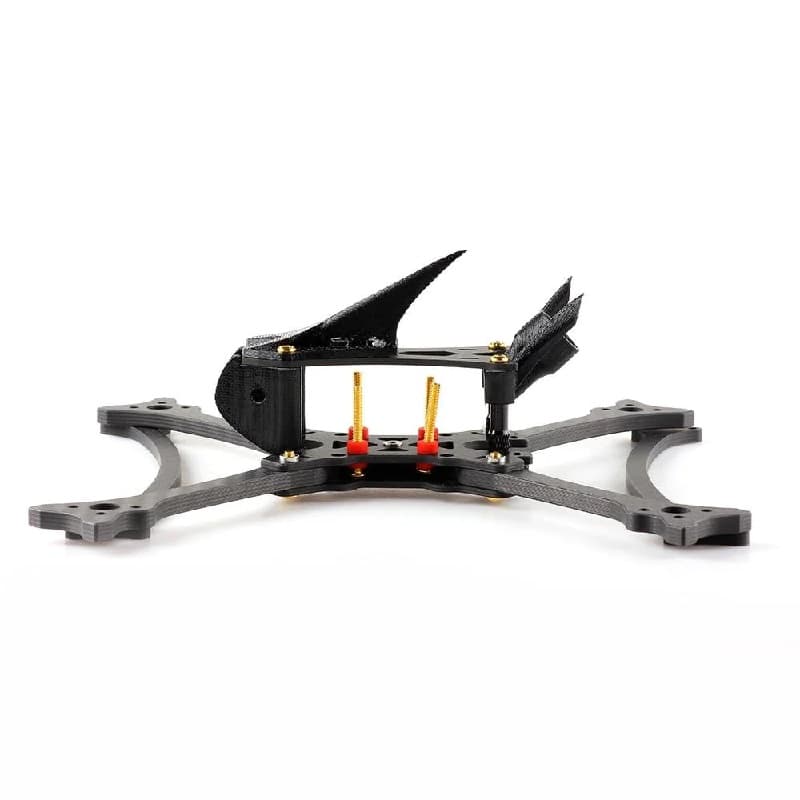

HGLRC Wind5 Lite True X Frame Kit HD Vista

Weight

80 g

Drives all-up weight and thrust-to-weight in the Build Studio.

Wheelbase

208 mm

Diagonal motor-to-motor distance.

Max Propeller Size

5 in

Arm Thickness

5 mm

Overview

The HGLRC Wind5 Lite True X Frame Kit with HD Vista is a top-notch package designed for high-performance FPV drone enthusiasts. This kit includes a robust True X frame optimized for stability and agility during flights. The integrated HD Vista system ensures crystal-clear digital video transmission for immersive flying experiences. With HGLRC's renowned quality, this kit provides an exceptional foundation for building a cutting-edge FPV drone capable of delivering impressive visuals and responsive control.

  • Flight control installation damping system
  • 4mm protective bar
  • SMA antenna Mount
  • Camera Mount
  • Anti-turtle Shark Fin
  • The quadcopter has compact dimensions of 148 * 148mm, making it suitable for various applications.
  • Both the top and bottom plates feature a thickness of 2mm, providing a balance of strength and weight for the frame.
  • The middle plate is constructed with a thickness of 2.5mm, enhancing the durability and stability of the frame.
  • The spacing between the top and middle plates is 32mm, allowing ample room for additional components and configurations.
  • Installation holes are designed with dimensions of 20×20/30.5×30.5mm, providing flexibility for different flight controller sizes and mounting options.
  • The frame supports a camera with dimensions of 19mm, offering compatibility with various FPV camera options.

Specifications

Physical

Weight
80 g
Wheelbase
208 mm
Arm Thickness
5 mm

Mounting & Fitment

Max Propeller Size
5 in
Motor Mount Pattern
—
Stack Mounting
20 × 20 mm, 30.5 × 30.5 mm
Camera Mounting
Micro
Max Battery Width
—

Features

Style
Racing

Where a value reads as an em dash the manufacturer has not published it. We do not estimate.

Manufacturer datasheet10 entries
Item Type
Kit, Frame
Material
Carbon Fiber
Model No. / Name
Wind 5 Lite Frame Kit
Frame Size (mm)
5 inch
Wheelbase
208 mm
Arm thickness (mm)
5
Motor Mount Hole Dia. (mm)
Phi 16
Weight (g)
80
Shipping Weight
0.234 kg
Shipping Dimensions
22 × 14 × 4.5 cm

In the box

011 x 2mm top plate
021 x 2mm bottom plate
031 x 2.5mm middle plate
044 x 5mm arm
052 x 4mm protective bar
064 x M3*32mm black aluminum column
072 x M3*30mm black aluminum column
084 x round head screw M2*35
094 x round head screw M3*16
1012 x round head screw M3*12
111 x Sink head screw M3*10
122 x round head screw M3*10
138 x round head screw M3*8
142 x round head screw M2*4
154 x M2 Self-tightening nut
164 x M3*6.6 shock absorber ball
171 x Battery cable tie 15x250mm
181 x Battery cable tie 20x250mm
191 x Battery Anti-slip tape
202 x strap
211 x Anti-turtle Shark Fin
221 x TPU hammer antenna mount
231 x TPU Camera Nebula Pro Mount
HGLRC

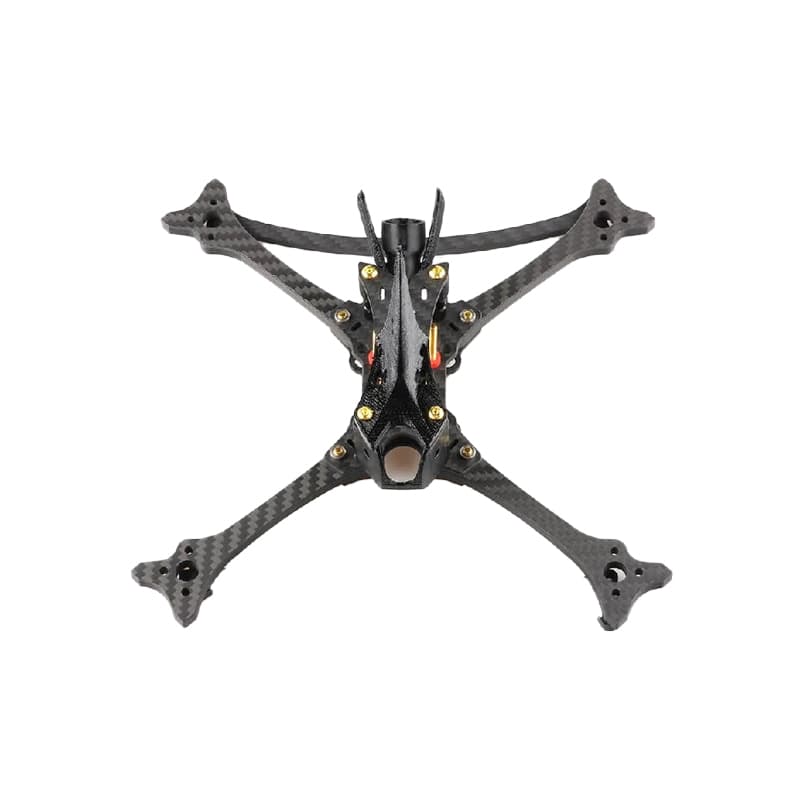

HGLRC Wind5 Lite True X Frame Kit HD Vista

SKU HGL-FRM-WIND5

Model: Wind5 Lite Frame Kit · Material:3K Carbon Fiber · Type:5" frame · Wheelbase:208mm

₹4,340.00

₹3,677.97 + 18% GST

In stock
  • Model: Wind5 Lite Frame Kit
  • Material:3K Carbon Fiber
  • Type:5" frame
  • Wheelbase:208mm

Product details

SKU
HGL-FRM-WIND5
Brand
HGLRC
Country of origin
China
Warranty
Replacement window — see terms
HSN code
88073000

Dispatch from Ghaziabad, UP

Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.

HSN code
88073000
GST
18%
Country of origin
CN
Shipping weight
234 g
