Weight
23 g
Drives all-up weight and thrust-to-weight in the Build Studio.
Continuous Current
30 A
Per motor channel, sustained.
Cell Count
2–3 S
Type
Single
Overview

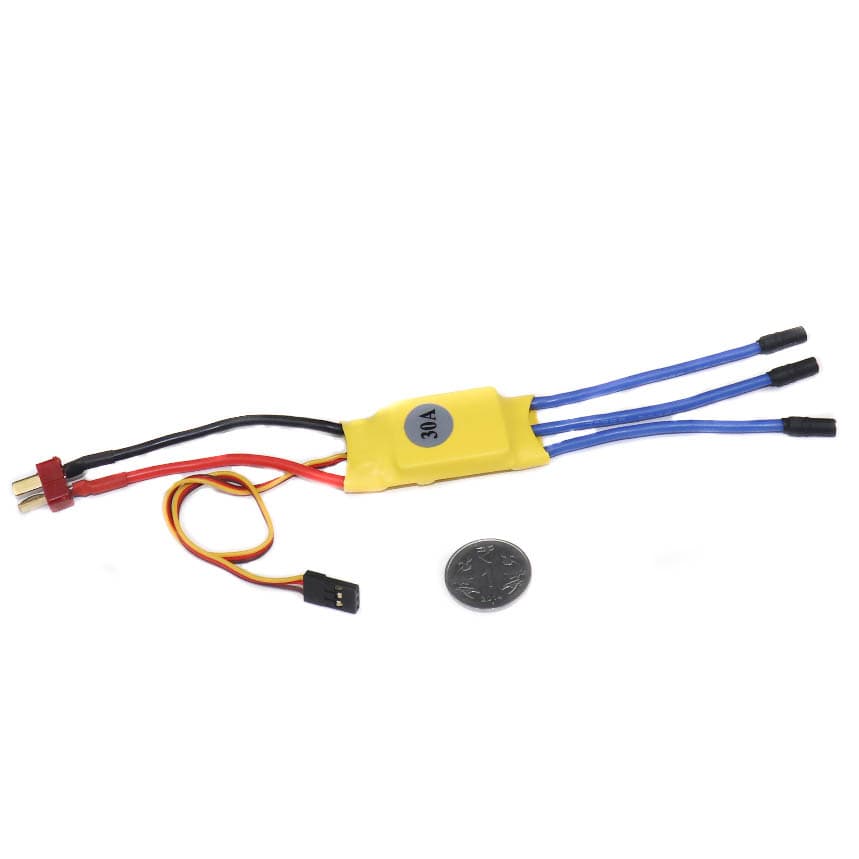

Standard BLDC 30 amp ESC Electronic Speed Controller with Connector is specifically made for quadcopters and multi-rotors. It provides faster and better motor speed control giving better flight performance compared to other available ESCs.
STANDARD 30 amp ESC Electronic Speed Controller can drive motors that consume up to 30A current. It works on 2-3S LiPo batteries. The onboard BEC provides regulated 5V(2A max draw) to power the flight controller and other onboard modules. This is useful to control our brushless motors with a 2-3S LiPo (make sure the motor doesn't draw more than 30A).
This particular ESC is recommended with an A2212 brushless motor (1000kv, 1400kv, 2200kv) for more motor, Click here
For more 30 A ESC's, Click here
ESC CONNECTORS:
Battery Side - Male Deans ( T ) Connector.
Motor Side - Female 3.5mm Gold Connector.
- This 30 amp ESC for BLDC has onboard BEC
- This ESC comes with a male dean T-connector
- Auto Low BATTERY Slow down at 3.0V/cell Lipo, cut-off at 2.9V/cell lipo
- APPLICATION: Multirotors, Rc Airplanes, etc
Specifications
Physical
- Weight
- 23 g
Features
- Type
- Single
- Supported Protocols
- Pwm
- ESC Firmware
- SimonK
- Current Sensor
- No
Electrical
- Continuous Current
- 30 A
- Cell Count
- 2–3 S
- Burst Current
- 40 A
Mounting & Fitment
- Mount Pattern
- Non-standard
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet13 entries
- Item Type
- Brushless ESC
- Model No. / Name
- Standard 30A BLDC ESC
- Burst Current (A)
- 40
- Constant Current (A)
- 30
- BEC (Y/N)
- Yes, (5V/3A)
- Compatible LiPO Batteries
- 2S to 3S
- Application
- BLDC Motors, Multirotors, Rc Planes etc.
- Length (mm)
- 45
- Width (mm)
- 24
- Weight (g)
- 23
- Color
- Random
- Shipping Weight
- 0.027 kg
- Shipping Dimensions
- 10 × 10 × 5 cm
In the box

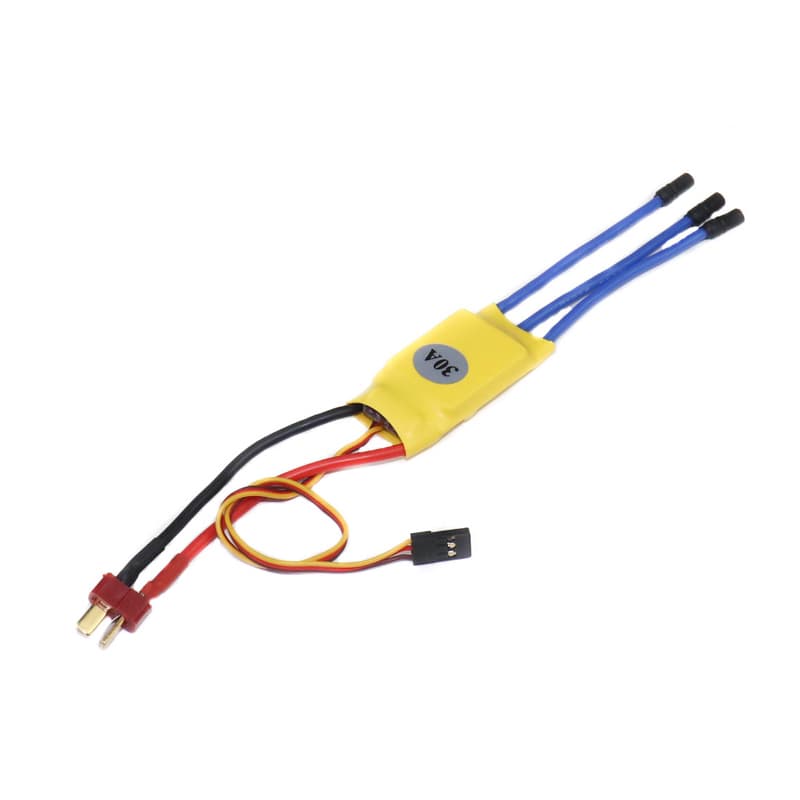

Standard 30A BLDC ESC Electronic Speed Controller with Connector
SKU VTX-ESC-STANDARD-30A
Constant Current: 30A (Max 40A<10s). · BEC: 5V 3A. · Input Voltage: 11.1 ~ 11.7 V. · Li-Po battery: 2S ~ 3S. · Ni-MH 4-10 CELLS Auto Detect.
₹304.24 + 18% GST
- Constant Current: 30A (Max 40A<10s).
- BEC: 5V 3A.
- Input Voltage: 11.1 ~ 11.7 V.
- Li-Po battery: 2S ~ 3S.
- Ni-MH 4-10 CELLS Auto Detect.
Product details
- SKU
- VTX-ESC-STANDARD-30A
- Brand
- Generic
- Country of origin
- China
- Warranty
- Replacement window — see terms
- HSN code
- 85043100
