Overview

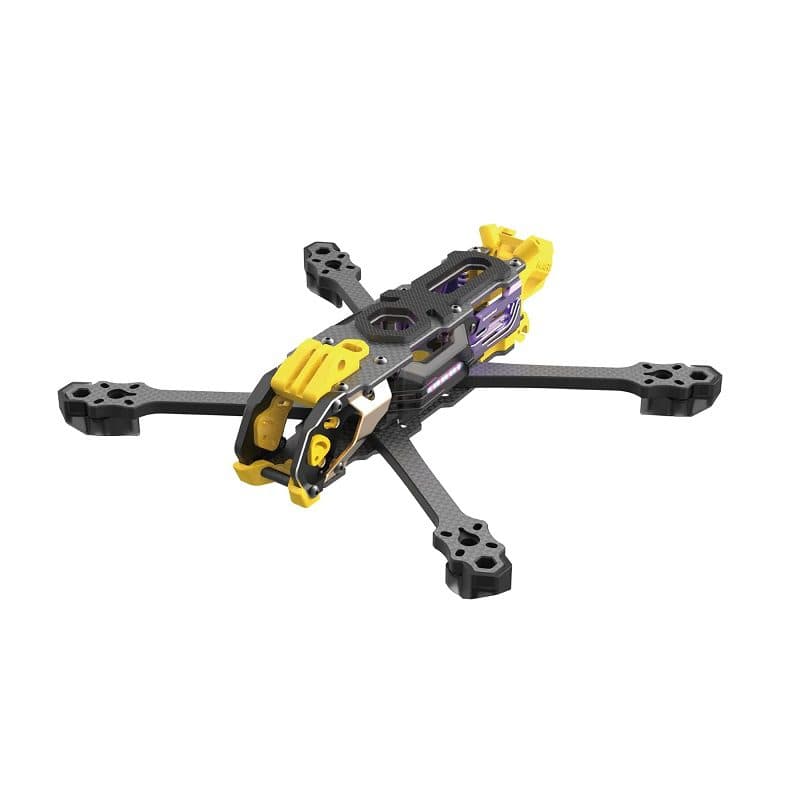

The SpeedyBee Mario 5 XH O4 PRO Version is engineered for performance and versatility, featuring a high-strength aviation aluminum alloy head that not only protects the lens but also optimizes the DJI O3 VTX ultra-wide-angle view, minimizing the "jello effect" for a consistently steady image. Its unique carbon plate arm support structure significantly enhances body stability and reduces twisting, while also providing space for capacitor installation.

The frame offers a power dual-input method for easy center of gravity adjustment, along with integrated sockets and antennas for a clean build. A dedicated receiver installation space at the rear simplifies frequency binding. Furthermore, the SpeedyBee Mario 5 XH O4 PRO Version encourages personalization with diverse open-source 3D models and includes protective armor that shields the FC and enhances DJI O3 heat dissipation, ensuring optimal cooling

High-Strength Alloy Head: Protects the lens, Optimizes DJI O3 VTX ultra-wide-angle view, Minimizes "jello effect."
Unique Carbon Plate Arm Support: Enhances body stability, Minimizes twisting, Accommodates capacitor installation.
Power Dual-Input Method: Selectable dual main power input, Easy center of gravity adjustment, Integrated socket and antenna.
Receiver Installation Space: Dedicated rear bottom area, Easy frequency binding.
Diverse Open-Source 3D Models: Customizable with various 3D models.
Frame Protection Armor: Protects the FC (Flight Controller), Enhances DJI O3 heat dissipation, Recessed Gopro Mount, lowers the center of gravity.

Specifications

Physical

Weight: 126 g
Wheelbase: 226 mm
Arm Thickness: 2.5 mm

Mounting & Fitment

Max Propeller Size: 5 in
Motor Mount Pattern: Non-standard
Stack Mounting: 30.5 × 30.5 mm, 20 × 20 mm, 25.5 × 25.5 mm
Camera Mounting: Micro
Max Battery Width: —

Features

Style: Freestyle

Where a value reads as an em dash the manufacturer has not published it. We do not estimate.

Manufacturer datasheet10 entries

Item Type: Accessory
Model No. / Name: Drone Frame
Material: Aluminium Metal Alloy
Thickness of Arms: 6mm
Thickness (mm): Top Plate Thickness:2.5mm(T300 3K), Middle Plate Thickness:2.0mm(T300 3K), Bottom Plate Thickness:2.5mm(T300 3K)
Additional Specs.: Battery Anti-Slip Pad: Silicone 3mm, Motor Spring Hole Position: Φ8mm, Compatible Propeller Size : Max 5.1 Inch, Motor Mounting Hole Distance : 16-19mm, FC Mounting Hole:30.5×30.5(M3), Internal Mounting Height : 23-31mm, Receiver Installation Space :25*13*6mm, Suitable Capacitor Size : Φ10mm*20mm, GPS Installation Size : 18*18*7
VTX Mounting Holes: 20×20(M2)
Wheelbase: 226 mm
Shipping Weight: 0.238 kg
Shipping Dimensions: 23 × 20 × 6 cm
