Weight
240 g
Drives all-up weight and thrust-to-weight in the Build Studio.
Wheelbase
225 mm
Diagonal motor-to-motor distance.
Max Propeller Size
5 in
Motor Mount Pattern
16 × 16 mm
Overview

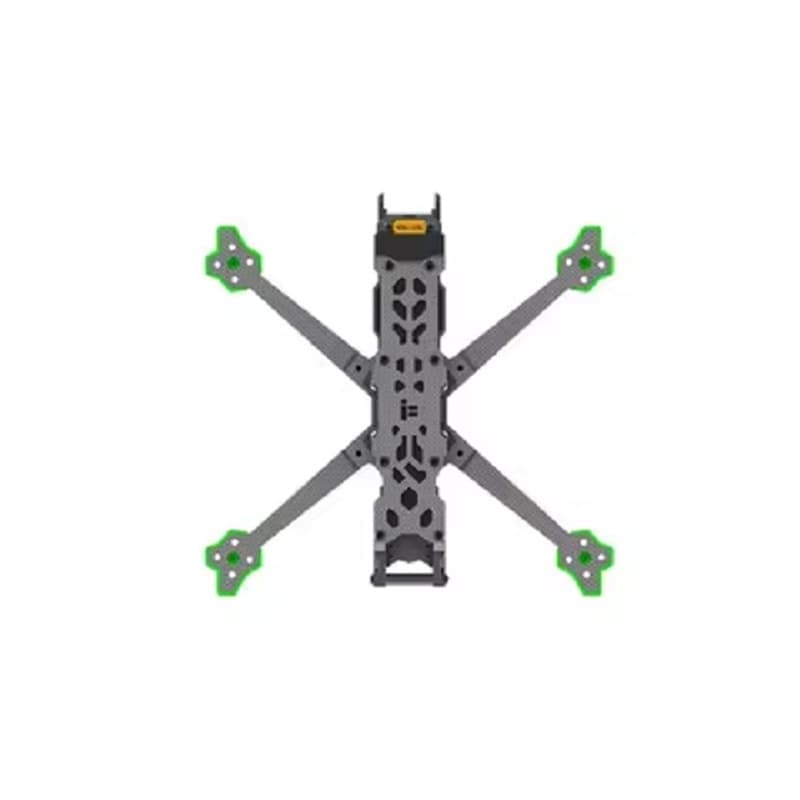

The Nazgul Evoque F5X V2 Frame Kit is a premium drone frame designed for high-performance freestyle and racing applications. Built for durability and versatility, it features robust construction, advanced mounting compatibility, and optimized aerodynamics to enhance flight efficiency and control.
- V2 Upgrade for DJI O3 HD Air Unit: Enhanced digital transmission compatibility and performance.
- Custom Heatsink: Efficient cooling for the DJI O3 Air Unit.

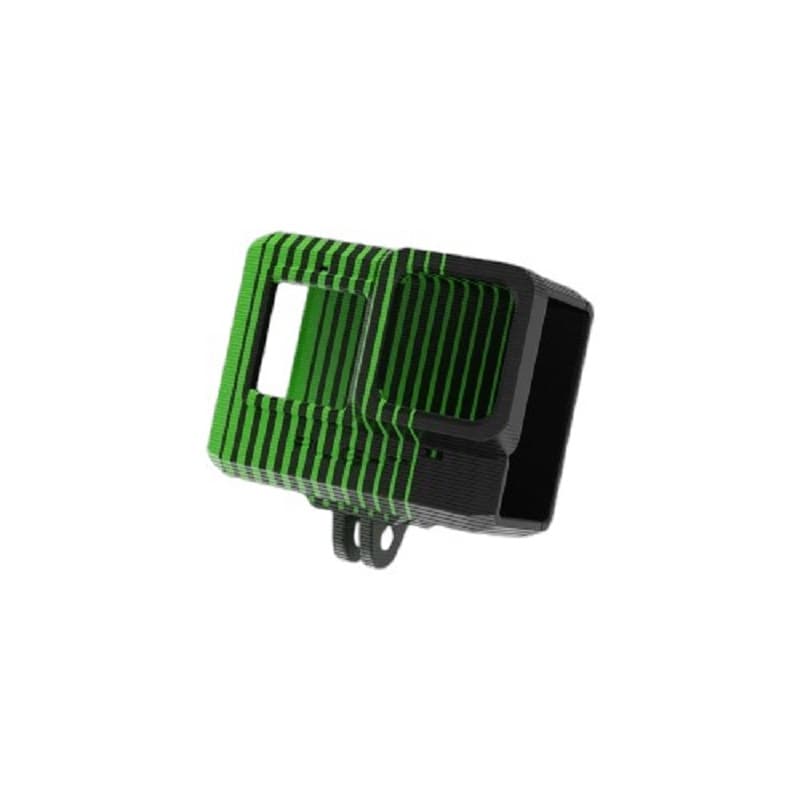

- Wide FOV Camera Mount: TPU damping inserts reduce vibrations for smoother footage.
- Redesigned Side Panels: Secure fit for the O3 Air Unit at the back.
- Dual 5.8G VTX Antenna Mount: TPU construction ensures strong, stable signal transmission.
- Nazgul Frame Upgrades: Maximum protection and durability for demanding flights.e.
Specifications
Physical
- Weight
- 240 g
- Wheelbase
- 225 mm
- Arm Thickness
- 6 mm
Mounting & Fitment
- Max Propeller Size
- 5 in
- Motor Mount Pattern
- 16 × 16 mm
- Stack Mounting
- 20 × 20 mm
- Camera Mounting
- Micro
- Max Battery Width
- —
Features
- Style
- Racing
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet10 entries
- Item Type
- Nazgul Evoque F5X V2 Frame Kit
- Wheelbase
- 225 mm
- Bottom Plate Thickness(mm)
- 3 mm
- Top plate thickness (mm)
- 2mm
- Arm thickness (mm)
- 6mm
- Length (mm)
- 258
- Width (mm)
- 199
- Weight (g)
- 240 g
- Shipping Weight
- 0.399 kg
- Shipping Dimensions
- 19 × 20 × 06 cm
In the box
Nazgul Evoque F5X V2 Frame Kit
SKU IFL-FRM-NAZGUL
Durable: Carbon fiber frame. · Flexible: Supports various FC/VTX setups. · Optimized: Improved airflow and heat management. · LED Ready: Optional LED integration. · Repairable: Compact, easy to maintain.
₹7,194.07 + 18% GST
- Durable: Carbon fiber frame.
- Flexible: Supports various FC/VTX setups.
- Optimized: Improved airflow and heat management.
- LED Ready: Optional LED integration.
- Repairable: Compact, easy to maintain.
Product details
- SKU
- IFL-FRM-NAZGUL
- Brand
- iFlight
- Country of origin
- China
- Warranty
- 3 months
- HSN code
- 88073000
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
3-month warranty
Covers manufacturing defects. Crash damage is not covered.
- HSN code
- 88073000
- GST
- 18%
- Country of origin
- CN
- Shipping weight
- 399 g
