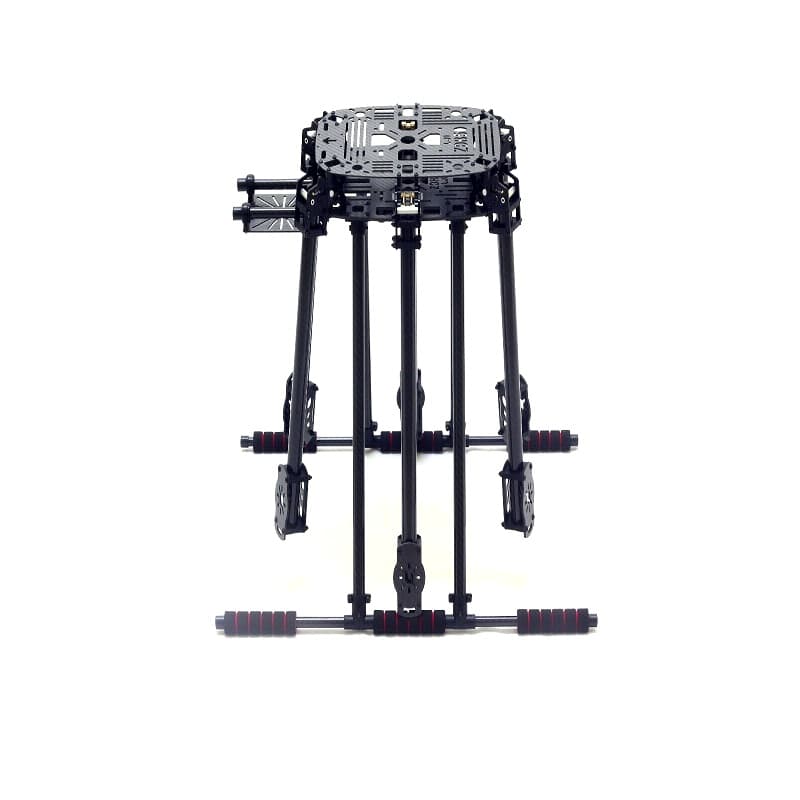

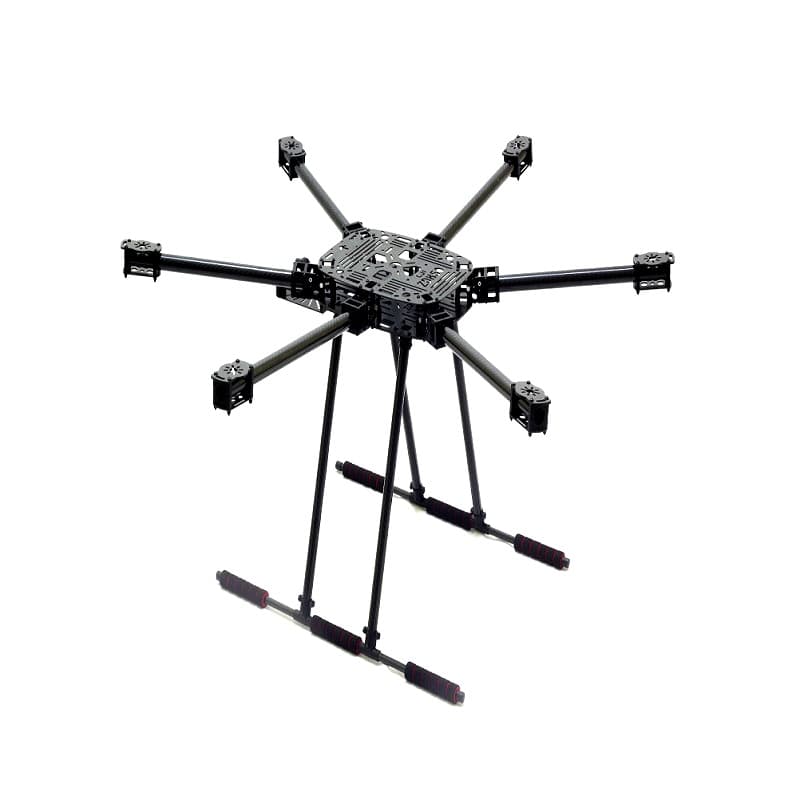

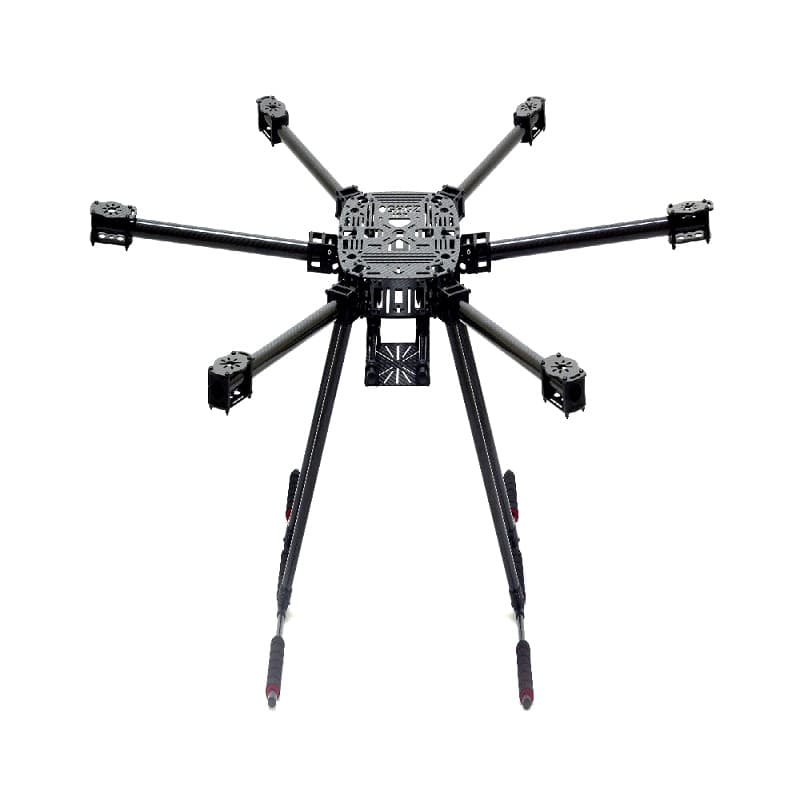

ZD850 Hexa-Rotor Frame for Drone

Weight

7000 g

Drives all-up weight and thrust-to-weight in the Build Studio.

Wheelbase

850 mm

Diagonal motor-to-motor distance.

Max Propeller Size

16 in

Arm Thickness

20 mm

Overview

This ZD850mm Full Carbon Fiber 850mm Hexa-Rotor Frame Combo is ideal for Heavy Duty Drone Applications because of its capability of withstanding the punishing requirements of heavy-duty drone applications!!! Let us explain why… The thing that separates this Z850 Full Carbon Fiber Frame from the rest of the Multirotor Frames is the use of 100% pure carbon for manufacturing this Hexacopter Frame. This Hexacopter Frame is made up of 100% 3K TWILL carbon fiber.

The arms of the frame are made from a 20mm carbon fiber tube which eliminates arm breakage at the motor mounts on a hard landing. This is Hexacopter Frame that employs 6 arms to get into the air. There are several advantages of a hexacopter frame over a quadcopter one, justifying the extra price tag.

For 6 arms, of course, there are more motors with a hexacopter meaning more power, meaning bigger batteries. This increase in batteries leads to an increase in flight time, which is also nice. Due to these extra motors, a hexacopter is also more stable than your quadcopter equivalent. Another great advantage of using hexacopters is if for any reason your quadcopter loses a motor, it goes down but with a hexacopter, on the other hand, in the majority of cases you will be able to land safely with one or maybe even two motors down; an extra inbuilt guarantee on your beloved copter.

The frame has a wheelbase of 850mm and weighs around 1210gm. The Z850mm Full Carbon Fiber 850mm Hexa-Rotor Frame Combo is specially designed for heavy-duty drone applications and has lots of space for mounting all the required components. This frame is ideal for mounting cameras and other accessories.

Explore more variety of multirotor accessories by clicking Drone parts

  • This pure carbon fiber is ideal to withstand your drone standards.
  • Ultra-Lightweight and Durable.
  • Made by 100% 3K Twill super strong and lightweight carbon fiber.
  • The frame has excellent strength.
  • The arm has multiple motor mounting holes.
  • Foldable arms
  • Plastic tripod connection

Specifications

Physical

Weight
7000 g
Wheelbase
850 mm
Arm Thickness
20 mm

Mounting & Fitment

Max Propeller Size
16 in
Motor Mount Pattern
Stack Mounting
Camera Mounting
Max Battery Width

Features

Style

Where a value reads as an em dash the manufacturer has not published it. We do not estimate.

Manufacturer datasheet9 entries
Item Type
Frame
Model No. / Name
Hexarotor Frame
Material
Carbon Fiber
Color
Black
Length (mm)
1720
Width (mm)
1500
Weight (g)
7000
Shipping Weight
1.55 kg
Shipping Dimensions
50 × 20 × 6 cm

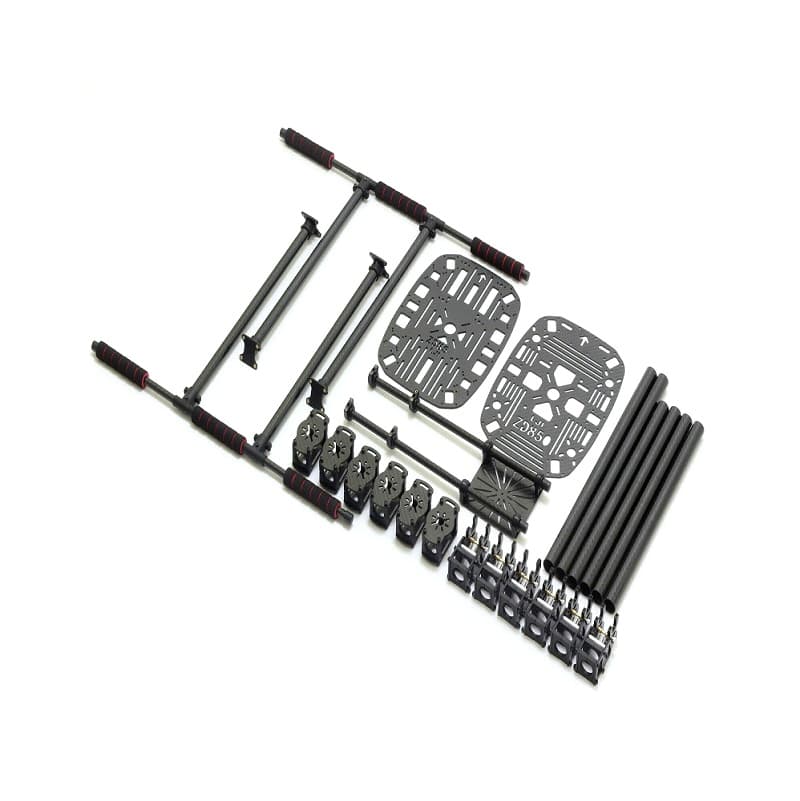

In the box

011 x ZD850mm Full Carbon Fiber 850mm Hexa-Rotor Frame
02This Combo Includes:
031 x ZD850mm Full Carbon Fiber Frame Kit:
046 x Pure Carbon Fiber Tubes
054 x Landing Gear
066 x Motor mounts
076 x Folding Mechanism
081 x Camera Stand
092 x Mounting Plates
101 x Fitting Accessories
Generic

ZD850 Hexa-Rotor Frame for Drone

SKU VTX-FRM-ZD850

This pure carbon fiber is ideal to withstand your drone standards. · Ultra-Lightweight and Durable. · Made by 100% 3K Twill super strong and lightweight carbon fiber. · The frame has excellent strength. · The arm has multiple motor mounting holes.

₹19,289.00

₹16,346.61 + 18% GST

In stock
  • This pure carbon fiber is ideal to withstand your drone standards.
  • Ultra-Lightweight and Durable.
  • Made by 100% 3K Twill super strong and lightweight carbon fiber.
  • The frame has excellent strength.
  • The arm has multiple motor mounting holes.

Product details

SKU
VTX-FRM-ZD850
Brand
Generic
Country of origin
China
Warranty
Replacement window — see terms
HSN code
88073000

Dispatch from Ghaziabad, UP

Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.

HSN code
88073000
GST
18%
Country of origin
CN
Shipping weight
1550 g
