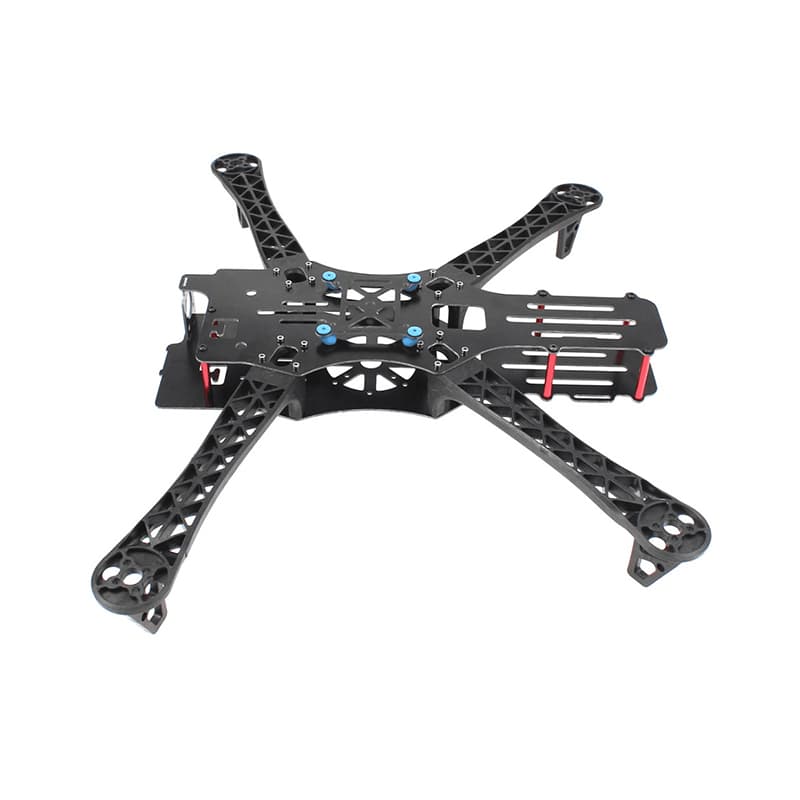

This is a TBS 500 Glass Fiber Frame Kit-(Copy).

This quadcopter frame with the wheelbase of 500mm is specially intended to provide lots of mounting space. It is well known for aerial video shooting and photography as it has special Gimbal housing provision at front. The TBS quadcopter frames outperform similar quads in terms of FPV range and video link quality.

It features a battery plate in the tail position. These large sized quadcopter frames equip larger motors and batteries, so increasing the power capabilities of your multirotor. This advantage results in a longer flight time, hence they are perfect for your aerial videography.

This  TBS 500 Carbon fiber frame is made from Carbon Fiber which makes it tough and durable. They have the arms of ultra-durable Polyamide Nylon which are the stronger molded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight.

It comes with PDB(Power Distribution Board) to power up the Quadcopter. And, is also designed to fit standard flight controllers/PDB, FPV cameras and also FPV transmitters and antenna. The TBS 500 Quadcopter Frame equips anodized alloy spacers.

The frame has the wheelbase of 500mm and weighs around 400gm. It features mounting tab at the rear end on the bottom plate of the main frame for mounting Batteries.

The added lift capacity makes this frame ideal for carrying larger payloads such as camera systems and Gimbal.

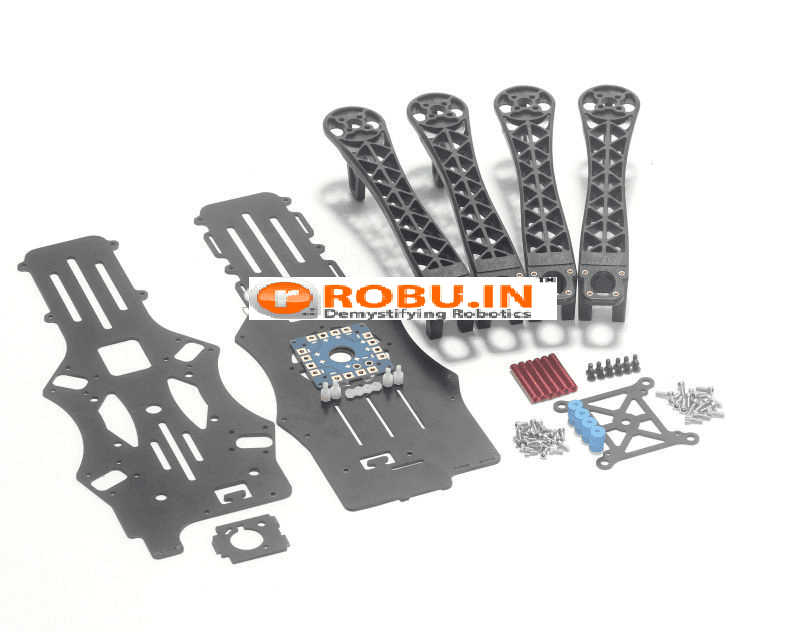

The frame comes with pre-threaded brass sleeves for all of the frame bolts, so attaching the arms to the main frame is done within few minutes.  Also, it requires one size of bolt for the overall build and thus a unique one size hex wrench which makes hardware mounting very convenient. This feature of TBS Quadcopter Frames makes them so easy to assemble and disassemble.

We are offering two TBS 500 Carbon Fiber Quadcopter Frames which differs in quality of mainframe. One is manufactured with the moderately good quality carbon fiber than other. You can simply recognize them by carefully observing the name of the products. (Read Following Names)

We are offering a full line of multi-rotor accessories,

Multirotor Motors

ESC's (Electronic Speed Controller)

Orange Li-PO Batteries

Flight Controllers

FPV Cameras

Gimbals

Propellers

Remotes

You can also check our following Multirotor Kits category if you are a beginner or just not willing to send lot much of time in selecting appropriate parts for your quadcopter and want your quad in the air as soon as possible,

Multirotor Kits

Note: This is not an original TBS product, but a high-quality clone of one.
