Weight
170 g
Drives all-up weight and thrust-to-weight in the Build Studio.
KV Rating
450 KV
RPM per volt with no load. Lower KV suits higher cell counts and larger props.
Stator Size
5006
Width and height of the stator in millimetres, e.g. 2207 is 22 mm wide, 7 mm tall.
Cell Count
4–6 S
Safe LiPo cell-count window. Exceeding it will cook the windings.
Overview
This is an amazing T MOTOR ANTIGRAVITY MN6007II KV320 that offers some of the highest levels of quality and performance in a motor to date.
believe in supplying quality products to the makers who really are struggling hard to build something that is best in performance while assuring the long life of the design by using the branded components.
Lightweight Antigravity MN6007II type T-motors are available with an Ultra-thin design, processed by high-strength aluminum. The use of a single thick copper wire winding reduces the energy dissipation of the motor. Antigravity T Motor contains a unique cooling design so that ventilation of winding is well, perfect dynamic test makes the motor easier to speed up and run more stably. Antigravity Tiger motor has excellent assembling workmanship with great rotor dynamic balance.
- High quality with imported materials.
- Light and reliable
- Ultra-light, high efficiency
- Devote to the long flight
- Quadcopter of 4kg, 60mins flight time
- Run smoothly, low cogging torque
Specifications
Physical
- Weight
- 170 g
Performance
- KV Rating
- 450 KV
- Stator Size
- 5006
- Max Thrust
- 3200 g
Mounting & Fitment
- Mount Pattern
- —
- Shaft Diameter
- 6 mm
- Propeller Mount
- T-mount
Electrical
- Cell Count
- 4–6 S
- Max Continuous Current
- 40 A
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet11 entries
- Motor KV (RPM/V)
- 450 KV
- Rated Voltage (VDC)
- 4-6S
- Idle Current
- 0.9A (22V)
- Brushless ESC(A)
- A IR 40A (Recommendation)
- Peak Current(180s)
- 26A
- Compatible Prop (inch)
- P14-18″ (Recommendation)
- Max. Power (W)
- 650W (180s)
- Weight (g)
- 170g
- Internal Resistance(mOhm)
- 60mΩ
- Shipping Weight
- 0.174 kg
- Shipping Dimensions
- 11 × 9 × 4 cm
In the box

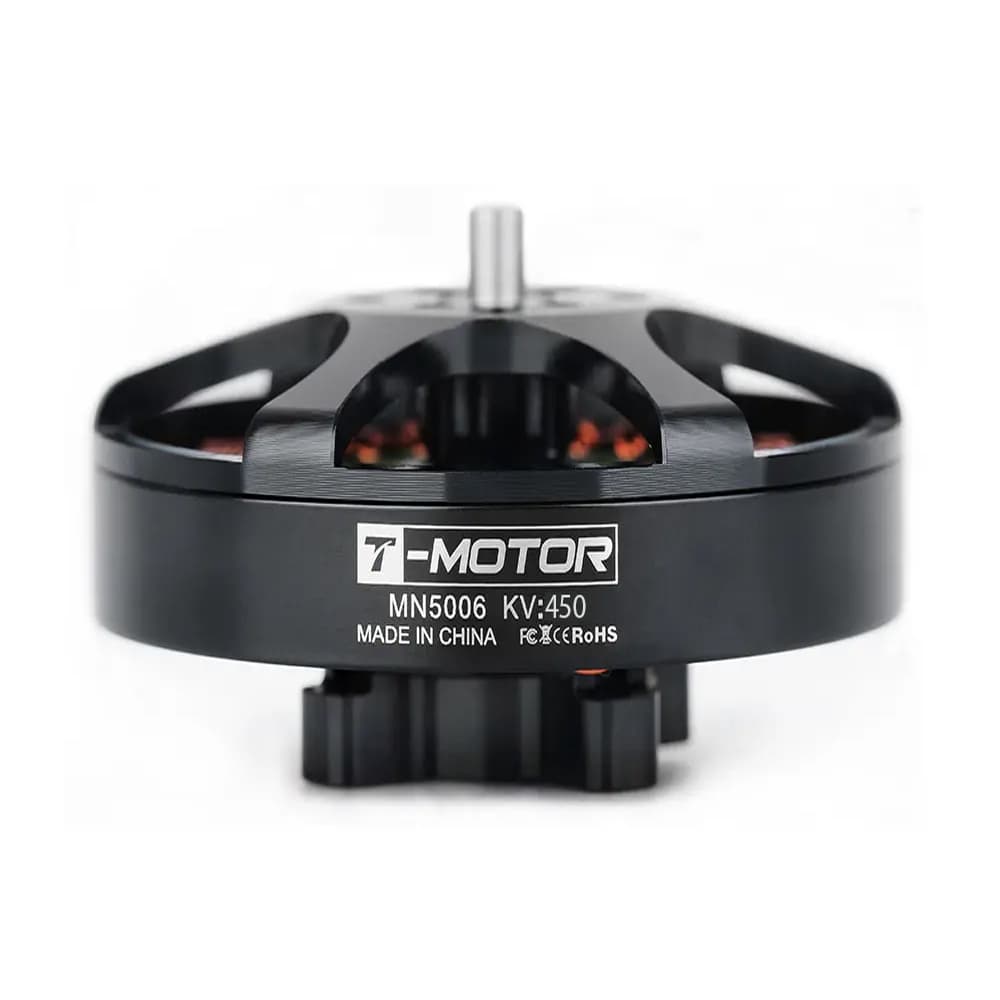

T motor MN5006 450KV
SKU TMT-MTR-MN5006-450
KV 450 · Rated Voltage (Lipo) 4-6S · Idle Current(22V)0.9A · ESC Recommendation A IR 40A · Peak Current (180s) 26A
₹9,304.24 + 18% GST
- KV 450
- Rated Voltage (Lipo) 4-6S
- Idle Current(22V)0.9A
- ESC Recommendation A IR 40A
- Peak Current (180s) 26A
Product details
- SKU
- TMT-MTR-MN5006-450
- Brand
- T-Motor
- Country of origin
- China
- Warranty
- Replacement window — see terms
- HSN code
- 85013119
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
- HSN code
- 85013119
- GST
- 18%
- Country of origin
- CN
- Shipping weight
- 174 g
