Weight

3.5 g

Drives all-up weight and thrust-to-weight in the Build Studio.

Form Factor

Nano

Video System

Analogue

Aspect Ratio

Switchable

Overview

The RunCam Nano 4 Camera for FPV Drone is a tiny camera designed for the tiny FPV quadcopters. Despite its tiny size, this camera outputs 700TVL giving you a decent resolution on your FPV feed. This is the 2.1mm Lens version.

World's lightest super WDR FPV camera.
Horizontal Resolution: 700TVL
Lens: 2.1mm (M8) FOV145° / 1.8mm (M8) FOV 160°
Signal System: PAL
Stable characteristics
High reliability.

Specifications

Physical

Weight: 3.5 g

Mounting & Fitment

Form Factor: Nano

Video

Video System: Analogue
Sensor: Super WDR CMOS Sensor
Aspect Ratio: Switchable
Field of View: 155 °

Electrical

Input Voltage: 3.3–5.5 V

Where a value reads as an em dash the manufacturer has not published it. We do not estimate.

Manufacturer datasheet17 entries

Item Type: FPV Camera
Resolution (TVL): 700
Model No. / Name: RunCam Nano 4
Image Sensor: Super WDR CMOS Sensor
Min. Illumination: 0.01Lux@1.2F
Electronic Shutter Speed: Auto
Horizontal Resolution (TVL): 700
Screen Format: 4:3 / 16:9 Switchable
S/N Ratio (dB): >50
Signal System: NTSC / PAL Switchable
Integrated OSD: Yes
Housing Material: ABS
Length (mm): 14
Width (mm): 14
Weight (g): 3.5
Shipping Weight: 0.02 kg
Shipping Dimensions: 7 × 5 × 4 cm

In the box

011 x RunCam Nano 4 camera

Confirmed to work with

Computed from published specifications — mount patterns, voltage windows and current ratings — not from what other customers happened to buy.

Frames

See all

Mark'3 145mm Carbon Fiber Frame KitCompatible

Fully compatible.

Batteries

See all

Orange 14.8V 4500mAh 35C 4S Lithium Polymer Battery PackCheck first

A 4S pack delivers 12.0–16.8 V but the camera accepts 3.3–5.5 V. Power it from a regulated BEC rail instead.

Pro-Range 11.1V 1300mAh 30C 3S Lithium Polymer Battery PackCheck first

A 3S pack delivers 9.0–12.6 V but the camera accepts 3.3–5.5 V. Power it from a regulated BEC rail instead.

Pro- Range 11.1V 2200mAh 30C 3S Lithium Polymer Battery PackCheck first

A 3S pack delivers 9.0–12.6 V but the camera accepts 3.3–5.5 V. Power it from a regulated BEC rail instead.

Pro-Range 11.1V 3300mAh 25C 3S Lithium Polymer Battery PackCheck first

A 3S pack delivers 9.0–12.6 V but the camera accepts 3.3–5.5 V. Power it from a regulated BEC rail instead.

RunCam

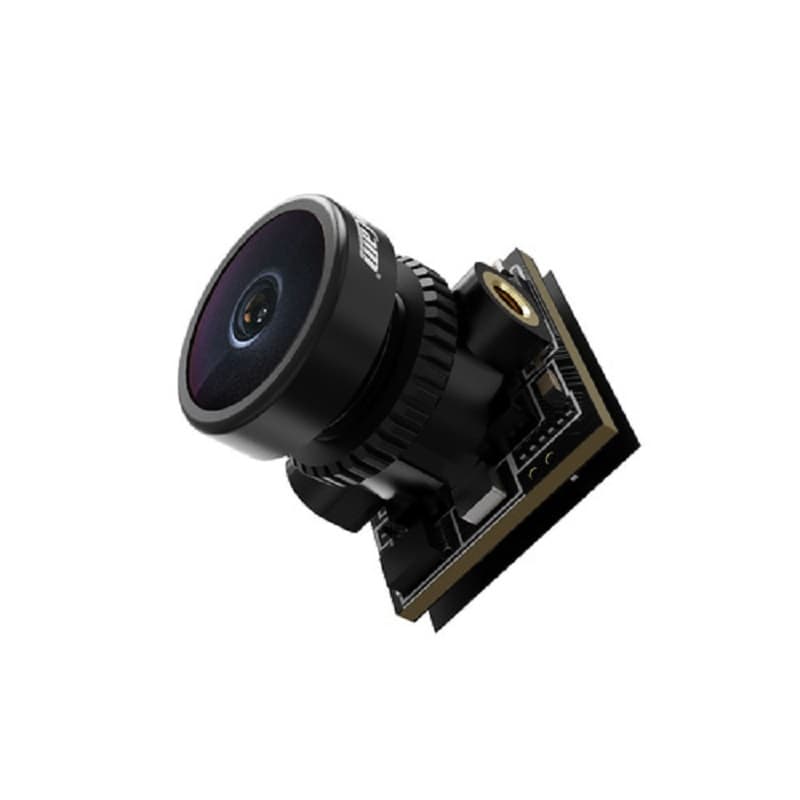

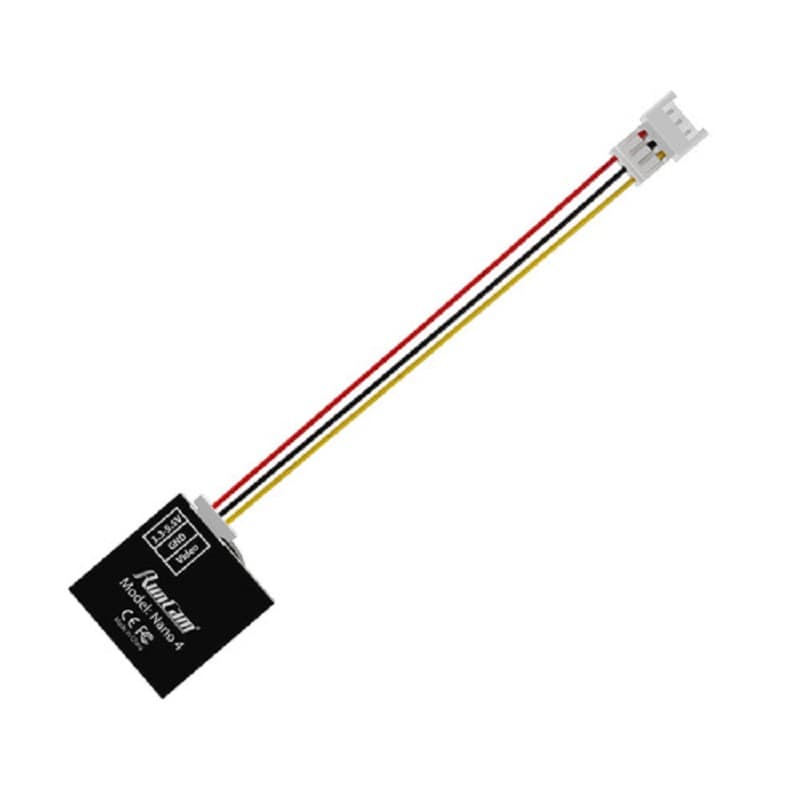

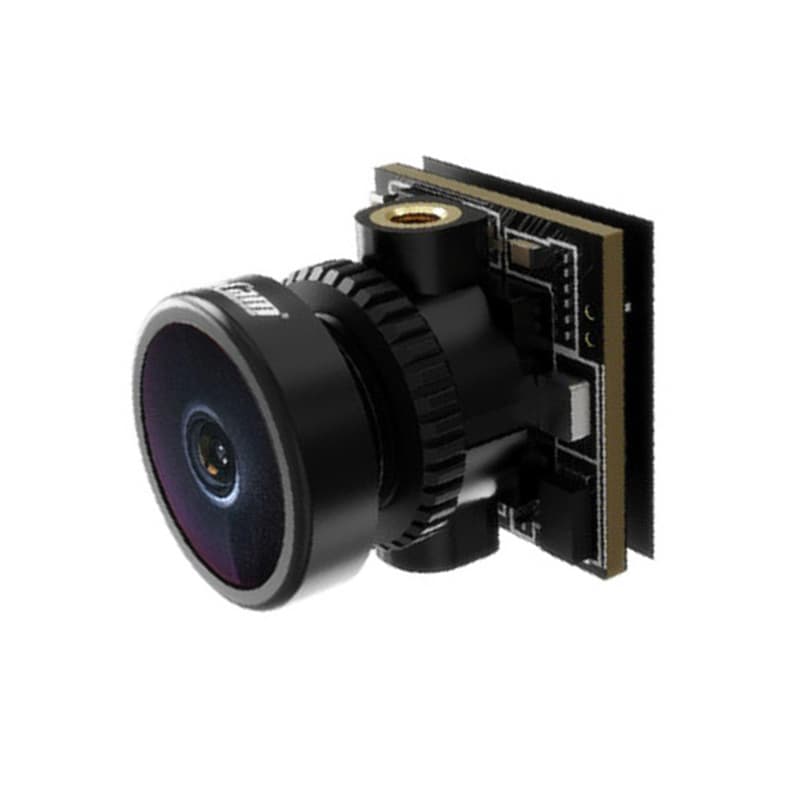

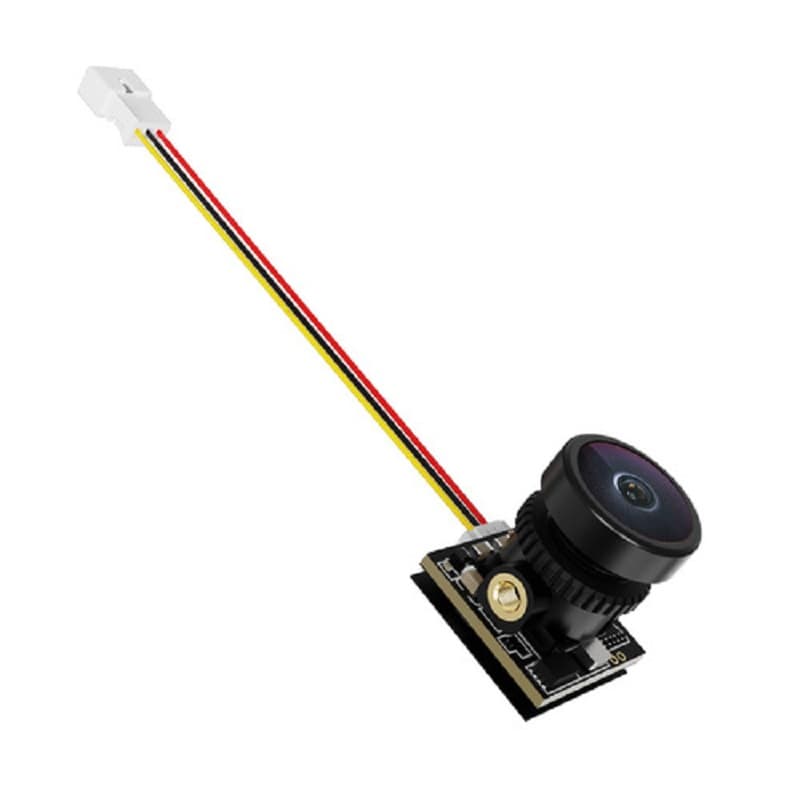

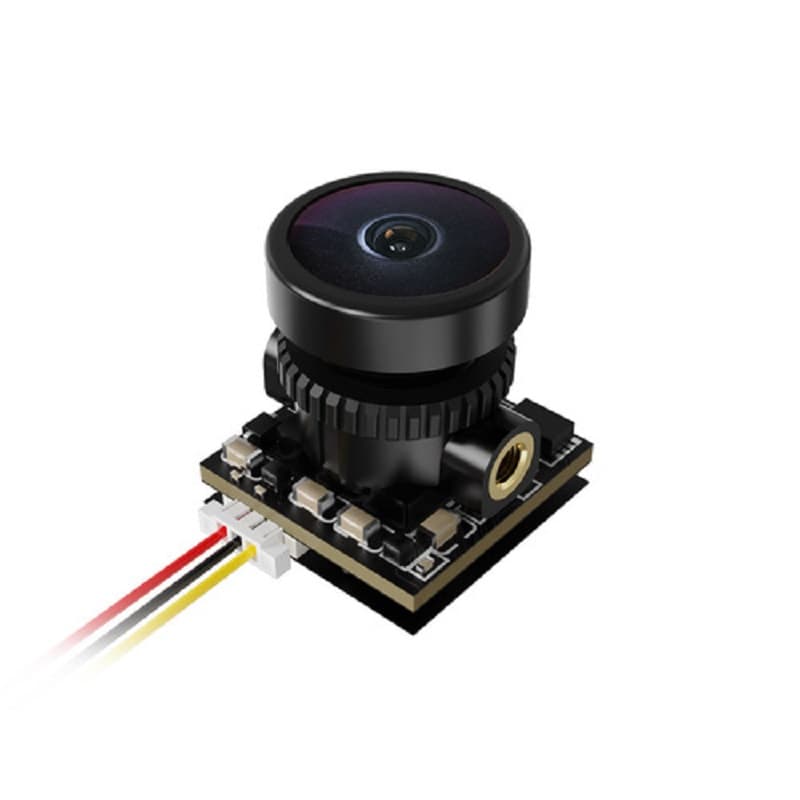

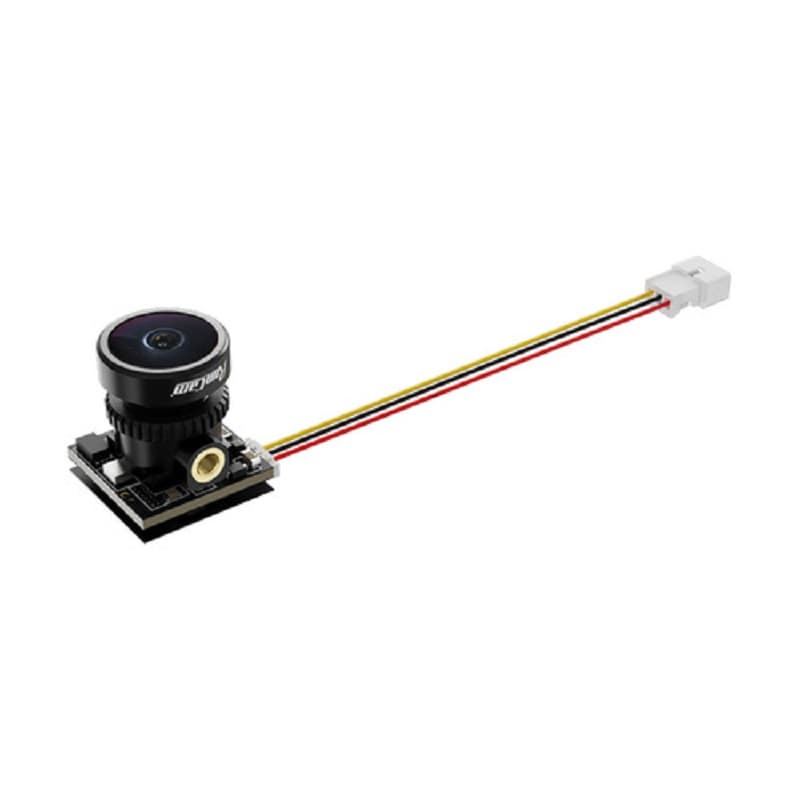

RunCam Nano 4 Camera for FPV Drone

SKU RNC-CAM-NANO

World’s lightest super WDR FPV camera. · Horizontal Resolution: 700TVL · high reliability. · Lens: 2.1mm (M8) FOV145° / 1.8mm (M8) FOV 160° · Power: DC 3-5.5V · S/N Ratio: >50dB

₹2,259.00

₹1,914.41 + 18% GST

In stock

World’s lightest super WDR FPV camera.
Horizontal Resolution: 700TVL
high reliability.
Lens: 2.1mm (M8) FOV145° / 1.8mm (M8) FOV 160°
Power: DC 3-5.5V
S/N Ratio: >50dB

Product details

SKU: RNC-CAM-NANO
Brand: RunCam
Country of origin: China
Warranty: 12 months
HSN code: 85258900

Dispatch from Ghaziabad, UP

Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.

12-month warranty

Covers manufacturing defects. Crash damage is not covered.

HSN code: 85258900
GST: 18%
Country of origin: CN
Shipping weight: 20 g
