Weight
375 g
Drives all-up weight and thrust-to-weight in the Build Studio.
Built-in DVR
No
Overview
The Eachine EV800 FPV Goggles offer an exceptional viewing experience for drone racing and FPV enthusiasts. Featuring a vibrant 5-inch LCD screen with a resolution of 800x480, these Eachine EV800 FPV goggles deliver clear and immersive visuals, even in outdoor conditions thanks to their 600 cd/m² brightness. The ergonomic design, paired with a comfortable face sponge and adjustable three-way belt, ensures a snug fit for extended use.
Equipped with a built-in 5.8GHz 40-channel Raceband receiver, the Eachine EV800 FPV goggles include an advanced auto-searching function that quickly locates available frequencies, displaying them directly on the screen. The lenses provide a 92% transparency rate, ensuring minimal distortion and blur, while the 3x magnification enhances the immersive experience.
Please note: It can not compatible with Fatshart OLED receiver
- 5-Inch Display: High-resolution 800x480 screen for clear visuals.
- High Brightness: 600 cd/m² for optimal outdoor viewing.
- Wide Viewing Angle: 140° horizontal and 120° vertical for immersive experiences.
- Advanced Receiver: Built-in 5.8GHz 40CH Raceband receiver with auto-searching function.
- High Transparency Lenses: 92% transparency with minimal distortion.
Specifications
Physical
- Weight
- 375 g
Video
- Video System
- Analogue
- Panel Resolution
- 800 x 480px
Features
- Built-in DVR
- No
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet21 entries
- Receiver Type
- Built-in 5.8GHz 40CH Raceband receiver
- Display Resolution (pixel)
- 800 x 480px
- Field of View (FOV)
- 140° horizontal / 120° vertical
- Aspect Ratio
- 4:3, 16:9
- IPD Visual Range
- 56mm-72mm
- Frequency
- 5.8GHz (5333MHz - 5945MHz)
- Sensitivity (dB)
- <=-93dB
- Impedance (Ω)
- 50Ω
- Antenna Gain
- 3 dBi
- Antenna Connector Type
- RP-SMA
- Video Format Supported
- NTSC/PAL
- Power Input
- 7.4V
- Low Voltage Warning
- 6.8V
- Batteries Required
- 3.7V, 2000mAh, 2S (7.4V)/3S (11.1V)
- Charging Type
- USB Cable(not included)
- Operating Temperature (°C)
- -10 to 40
- Focal Length (mm)
- -800D myopia and +300D hyperopia
- Magnification
- 3x boost for immersive viewing
- GTIN
- 979951827908
- Shipping Weight
- 0.81 kg
- Shipping Dimensions
- 25 × 15 × 11 cm

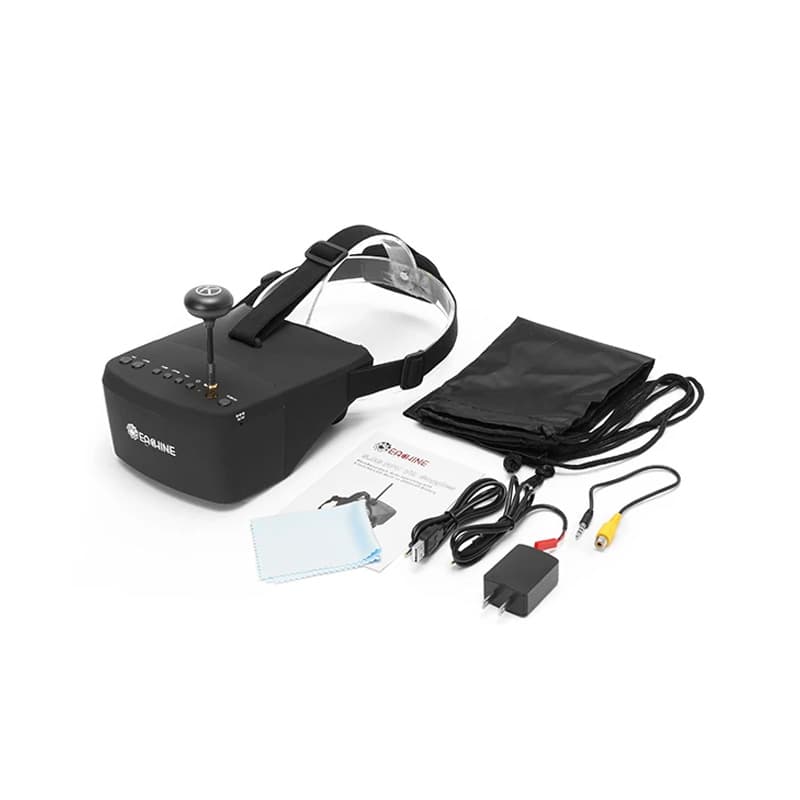

In the box
Eachine EV800 FPV Goggles - Black
SKU EAC-GGL-EV800-BLACK
Model: Eachine EV800 · Display: 5-inch screen with 800x480 resolution. · Brightness: 600 cd/m² for outdoor use. · Viewing Angle: 140° horizontal / 120° vertical. · Receiver: Built-in 5.8GHz 40CH Raceband with auto-searching.
₹9,855.08 + 18% GST
- Model: Eachine EV800
- Display: 5-inch screen with 800x480 resolution.
- Brightness: 600 cd/m² for outdoor use.
- Viewing Angle: 140° horizontal / 120° vertical.
- Receiver: Built-in 5.8GHz 40CH Raceband with auto-searching.
Product details
- SKU
- EAC-GGL-EV800-BLACK
- Brand
- Eachine
- Country of origin
- China
- Warranty
- 12 months
- HSN code
- 85285900
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
12-month warranty
Covers manufacturing defects. Crash damage is not covered.
- HSN code
- 85285900
- GST
- 18%
- Country of origin
- CN
- Shipping weight
- 810 g
