Weight
375 g
Drives all-up weight and thrust-to-weight in the Build Studio.
Built-in DVR
No
Overview

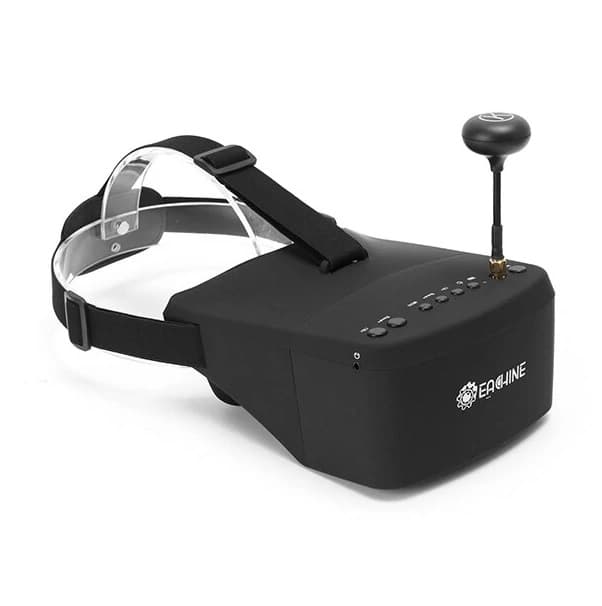

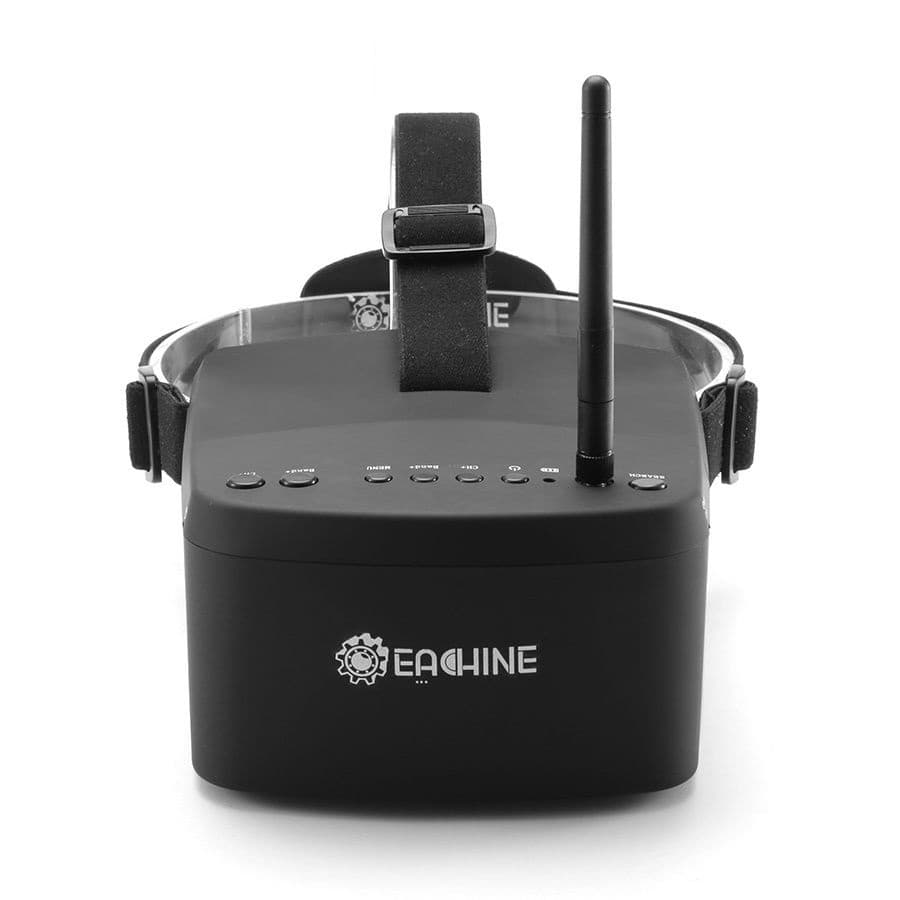

This Eachine EV800 is their 3rd FPV goggle. The biggest “invention” of this model, is the 2:1 design which allows using the EV800 as FPV glasses but also as a regular 5″ FPV display. The 6 mm tripod screw hole allows the installation of the screen on a tripod and uses it in a very comfortable way.
Thanks to the integrated 40CH 5.8G FPV receiver with RaceBand, these FPV goggles are compatible with almost any 5.8G FPV transmitter. Unfortunately, there is no HDMI input like on the Eachine Goggles One, so can’t be used with DJI Phantom 3 and Phantom 4.

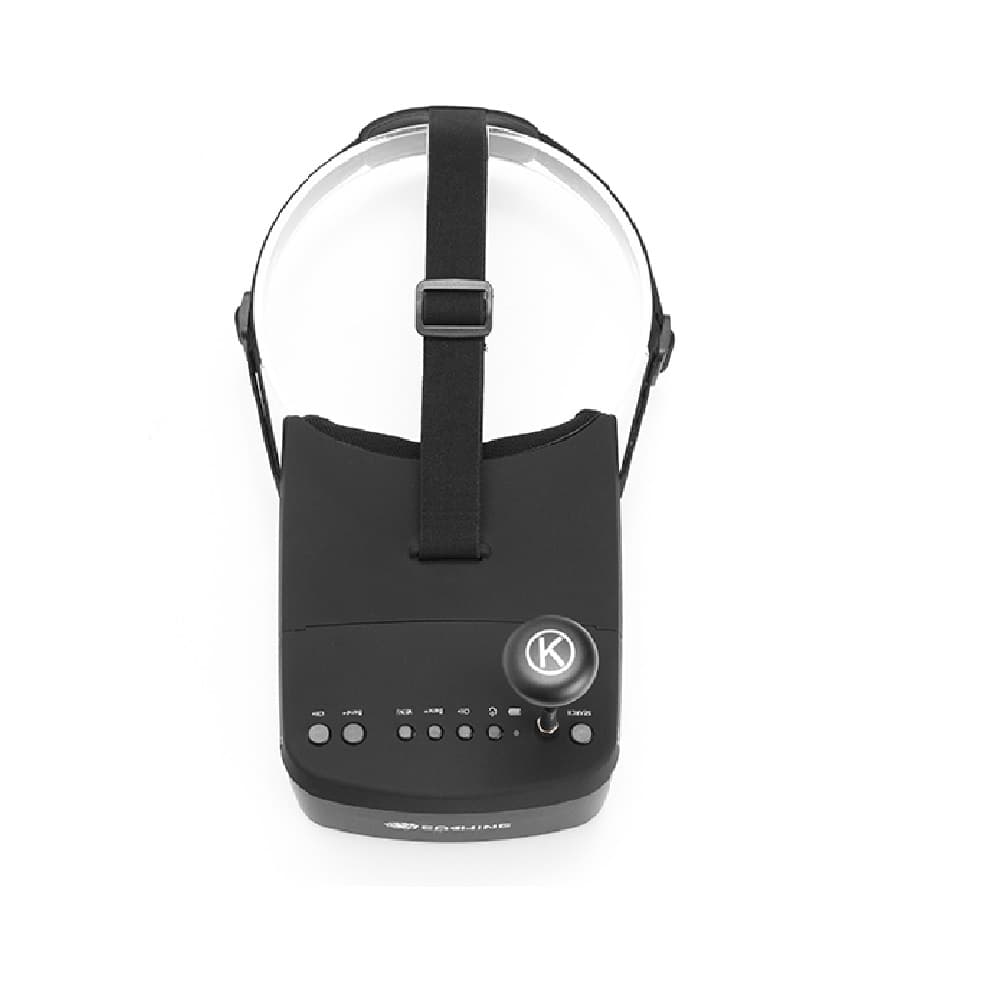

The Eachine EV800 features a 5″ LCD display with 800 x 480 pixels and 140/120-degree viewing angle. Unlike the other two Eachine goggles where the battery is external, the EV800 has a built-in high capacity 2000 mAh Li-Po battery. On the top front part of the EV800 FPV glasses are located, beside the RP-SMA antenna connector, the control buttons.
Note: The Goggle does not come with a battery charger, you have to buy it separately
- With comfortable face sponge and AV IN function
- Separable design, the 5-inch screen can be used as a small monitor on a radio controller or with a tripod
- HD high brightness 5inch LCD specially tuned for FPV racing
- Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand
- Come with an advanced auto-searching function ad show you the working frequency on screen
- Built-in 3.7V/2000mAh battery, each full charge revive around 3.5hours working time
- Wide range re-charge voltage 5-12V, power banks or 2S/3S batteries can be used as backup power sour, to prolong the working time
- Ergonomic design fit your face
- Super-wide visible angle up to 82 degrees
- 92% transparent lens adopted, no distort, no blur on the adage of the screen
- Lightweight 375g with 3.5hr 2000mAh battery, RTF for any scale racing game.
- 5 inch 800*480px HD high brightness LCD
Specifications
Physical
- Weight
- 375 g
Video
- Video System
- Analogue
- Panel Resolution
- 800 x 480
Features
- Built-in DVR
- No
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet9 entries
- Item Type
- FPV Goggles
- Resolution
- 800 x 480
- LED Brightness (MCD)
- 600cd/m2 with special high brightness backlight LED for outdoor FPV
- Viewing Angle (Deg.)
- 140/120 degrees (Horizontal/Vertical)
- Receiving Sensitivity
- super sensitiveness 5.8GHz 40ch receiver
- Battery Input Voltage (V)
- 3.5hr 2000mAh battery
- Screen Size (inch)
- 5.0 Inch
- Shipping Weight
- 0.695 kg
- Shipping Dimensions
- 16 × 17 × 10 cm
In the box
Eachine EV800 5 Inches 800x480 FPV Goggles
SKU EAC-GGL-EV800
Brand name: Eachine · Item No.: EV800 · Built-in 3.7V/2000mAh battery · Screen size: 5.0 inch · Screen resolution: 800*480 (No blur after enlarging by the lens) · Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV · View Angle: 140/120 degrees (Horizontal/Vertical)
₹5,494.70 + 18% GST
- Brand name: Eachine
- Item No.: EV800
- Built-in 3.7V/2000mAh battery
- Screen size: 5.0 inch
- Screen resolution: 800*480 (No blur after enlarging by the lens)
- Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
- View Angle: 140/120 degrees (Horizontal/Vertical)
Product details
- SKU
- EAC-GGL-EV800
- Brand
- Eachine
- Country of origin
- China
- Warranty
- Replacement window — see terms
- HSN code
- 85285900
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
- HSN code
- 85285900
- GST
- 18%
- Country of origin
- CN
- Shipping weight
- 695 g
