Weight
221 g
Drives all-up weight and thrust-to-weight in the Build Studio.
Built-in DVR
No
Overview

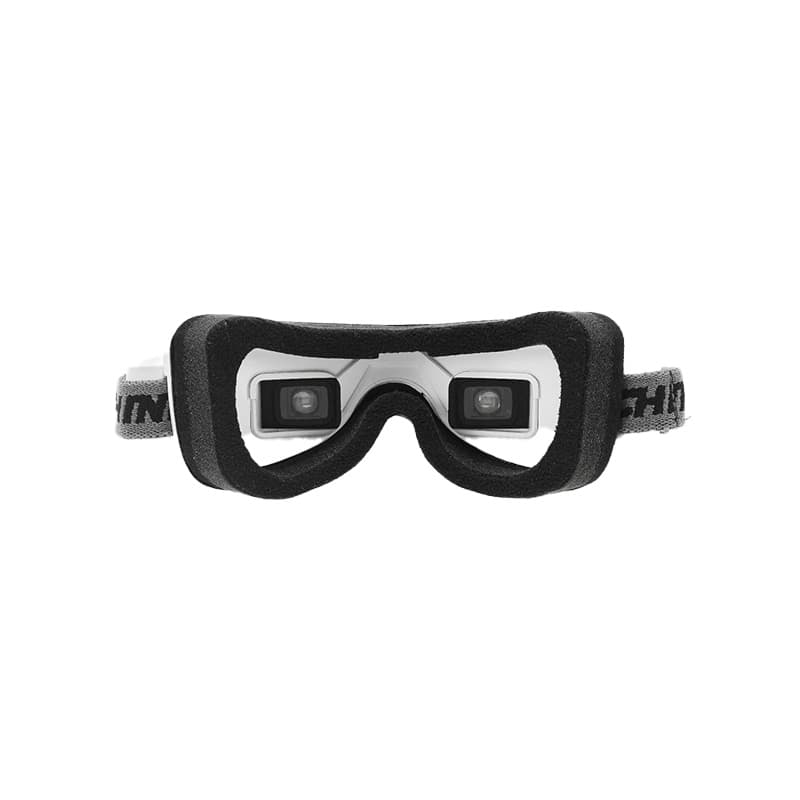

The Eachine EV100 FPV goggles are engineered for drone enthusiasts who crave an immersive flying experience. With a blend of comfort, functionality, and advanced features, these goggles are suitable for both beginners and experienced pilots.
- Auto Search Function: Automatically finds the strongest signal.
- AV Input and Output Support: Connects to external devices and DVRs.
- External HDMI to AV Module Support: Broadens compatibility with various devices.
- Adjustable Settings: Customizable focal length, brightness, and contrast.
- Debug Mode: Advanced options for compatible VTX.
Specifications
Physical
- Weight
- 221 g
Video
- Video System
- Analogue
- Panel Resolution
- 720 x 540 pixels
Features
- Built-in DVR
- No
Where a value reads as an em dash the manufacturer has not published it. We do not estimate.
Manufacturer datasheet19 entries
- Display Resolution (pixel)
- 720 x 540 pixels
- Field of View (FOV)
- 28° diagonal
- Aspect Ratio
- 4:3
- IPD Visual Range
- 58mm to 68mm
- Focal Length (mm)
- -400 degrees myopia and +150 degrees hyperopia
- Frequency
- 5.8GHz (5333MHz - 5945MHz)
- Sensitivity (dB)
- <=-93dB
- Impedance (Ω)
- 50Ω
- Antenna Gain
- 3 dBi
- Antenna Connector Type
- RP-SMA
- Video Format Supported
- NTSC/PAL
- Power Input
- 7.4V
- Low Voltage Warning
- 6.8V
- Batteries Required
- 2S 7.4V 1000mAh
- Charging Type
- USB Cable(not included)
- Operating Temperature (°C)
- -10 to 40
- GTIN
- 6397804232091
- Shipping Weight
- 0.41 kg
- Shipping Dimensions
- 25 × 13 × 8 cm
In the box
Eachine EV100 720*540 5.8G 72CH FPV Goggles With Dual Antennas Fan 7.4V 1000mAh Battery - Black
SKU EAC-GGL-EV100-BLACK
Model: Eachine EV2000D · Type: FPV Goggles (First-Person View) · Field of View: 28° diagonal for an immersive experience · Dual Antennas: Improved signal reception and stability · Built-in Fan: Prevents fogging for clear vision
₹15,473.73 + 18% GST
- Model: Eachine EV2000D
- Type: FPV Goggles (First-Person View)
- Field of View: 28° diagonal for an immersive experience
- Dual Antennas: Improved signal reception and stability
- Built-in Fan: Prevents fogging for clear vision
Product details
- SKU
- EAC-GGL-EV100-BLACK
- Brand
- Eachine
- Country of origin
- China
- Warranty
- 12 months
- HSN code
- 85285900
Dispatch from Ghaziabad, UP
Free shipping on orders above ₹2,999. Delivery estimate is shown at checkout once we know your pincode.
12-month warranty
Covers manufacturing defects. Crash damage is not covered.
